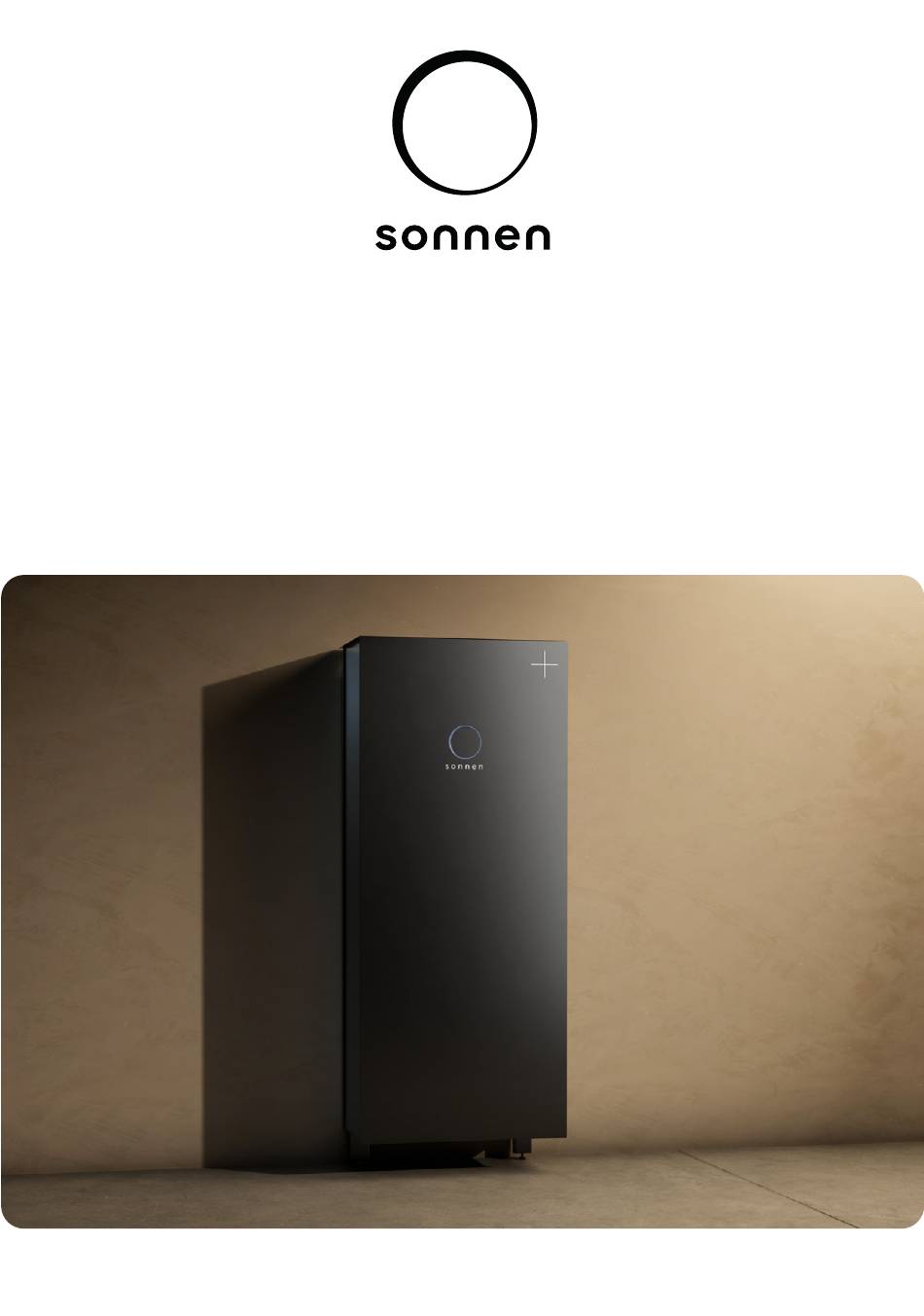

- Page 1 Operating instructions for Operators sonnenBatterie 10 performance+ Document no. 857 • Part no. 1003515 • Version 01 • sonnengroup.com...
- Page 2 IMPORTANT g This entire document must be read carefully. g This document must be kept for reference purposes. Publisher sonnen GmbH Am Riedbach 1 D-87499 Wildpoldsried Service number +49 8304 92933 444 Email info@sonnen.de Document Document number / Version 857 / 01...
-
Page 3: Table Of Contents
3.1 System components ................................ 11 3.2 Type plate ................................... 12 3.3 Optional accessories ..............................13 3.4 Function of the sonnen Eclipse..........................13 3.5 Activating the warranty..............................13 4 Operating the storage system ............................. 15 4.1 Switching the storage system on ..........................15 4.2 Switching the storage system off .......................... - Page 4 Table of contents Operating instructions sonnenBatterie 10 performance+ 8.2 Cleaning................................... 31 9 Uninstallation and disposal.............................. 32 9.1 Uninstallation................................. 32 9.2 Disposal.................................... 32 10 Troubleshooting ..................................33 10.1 sonnenBatterie 10 performance+........................33 10.2 sonnenBatterie 10 performance+ with emergency power function............ 34 11 Technical data..................................
-
Page 5: Information About This Document
Operating instructions sonnenBatterie 10 performance+ 1 Information about this document 1 Information about this document g Make sure you read this entire document carefully. g Keep this document for reference purposes. 1.1 Target group of this document This document is intended for customers who have purchased the storage system. 1.2 Designations in this document The following designations are used in this document: Complete designation... -
Page 6: Further Information
1 Information about this document Operating instructions sonnenBatterie 10 performance+ Version / Date Changes compared to the previous version Information on switching off the storage system [P. 16] with emer- gency power function added. Values added to the Technical data [P. 36] section. 00 / 14-10-2024 Initial creation. -
Page 7: Safety
Operating instructions sonnenBatterie 10 performance+ 2 Safety 2 Safety 2.1 Proper use The sonnenBatterie 10 performance+ is a battery storage system which can be used to store electrical energy and, when using the integrated emergency power function, can maintain the power supply in the event of a power failure. Incorrect or improper use can result in danger to life and limb of the user or third parties or damage to the product and other property. -
Page 8: Qualified Electricians
• The electrician must be a person with a technical knowledge or sufficient experi- ence to enable him/her to avoid dangers which electricity may create. • The electrician has successfully completed the sonnen certification training. 2.3 Handling battery modules The battery modules compatible with the storage system are protected by multiple protective devices and are safe when used properly. -
Page 9: Symbols On The Product
3. Contact the fire services. 4. Contact the sonnen service team (+49 8304 92933 444). There is a danger of electrocution when extinguishing a fire while the storage system is switched on. In the event of a fire in the vicinity of the product or in the storage system itself, proceed as follows before beginning any extinguishing measures: g Switching the storage system off [P. 16]. - Page 10 2 Safety Operating instructions sonnenBatterie 10 performance+ Warning: flammable materials. Warning: hazards due to batteries. Warning: product is heavy. CE mark. The product meets the requirements of the applicable EU dir- ectives. WEEE mark. The product must not be disposed of in household waste; dispose of it through environmentally friendly collection centres.
-
Page 11: Product Description
Operating instructions sonnenBatterie 10 performance+ 3 Product description 3 Product description 3.1 System components The storage system comprises multiple components, which are assembled at the in- stallation location for the storage system and installed there. The components of the storage system are described in the following. Overview of storage system Designation Function... -
Page 12: Type Plate
Power module and thus the storage system. You need the in- formation on the type plate for safe use and to obtain assistance from sonnen ser- vice if you have any questions. The information on the type plate is required for safe use and for service matters. -
Page 13: Optional Accessories
KNX infrastructure. 3.4 Function of the sonnen Eclipse The sonnen Eclipse (light ring in the sonnen logo on the front of the storage system) in- dicates the current status of the storage system when it is switched on. - Page 14 Operating instructions sonnenBatterie 10 performance+ If first-time commissioning has been successfully completed, you will receive an email with the current warranty conditions and data protection policy of sonnen GmbH. After confirming your data and the conditions, the manufacturer’s warranty for your storage system is activated.
-
Page 15: Operating The Storage System
Operating instructions sonnenBatterie 10 performance+ 4 Operating the storage system 4 Operating the storage system DANGER Opening of the storage system by unauthorised persons Danger to life due to electrocution! g The storage system must only be opened by authorised electri- cians. -
Page 16: Switching The Storage System Off
The storage system then starts and runs a self-test. Once the self-test is successful, the storage system is ready to operate. When the storage system is in normal operation, the sonnen Eclipse pulses white (see Function of the sonnen Eclipse [P. 13]). -
Page 17: Function
Operating instructions sonnenBatterie 10 performance+ 5 Function 5 Function 5.1 Basic principle Illustration 1: sonnenBatterie function PV system Measurement of consumption (optional: with external inverter) Storage system Public electricity grid Consumers in building (e. g. washing ma- chine, hob, lamps, refrigerator, etc.) The storage system (2) is connected to the PV system (1) and the public electricity grid (5). -
Page 18: Feed-In Limit
5 Function Operating instructions sonnenBatterie 10 performance+ 5.2 Feed-in limit PV systems are subject to a feed-in limit in some circumstances. The feed-in limit re- stricts the PV system’s feed-in power at the mains connection point. Example • Nominal power of PV system: 10 kWp •... -
Page 19: Intelligent Charging Management
Operating instructions sonnenBatterie 10 performance+ 5 Function 3. Reduction of PV power Production is reduced via an integrated switch contact on the PV inverter. This limits the inverter of the PV system to a defined power output. In order for this to occur, the PV inverter must support power reduction using a switch contact or an external solu- tion (e.g. - Page 20 5 Function Operating instructions sonnenBatterie 10 performance+ Without intelligent charging management, the storage system would immediately use the sur- plus to charge the battery (until the maximum charging power is reached). In this example, this behaviour would result in the storage system being fully charged before midday, meaning that the surplus exceeding the feed-in limit after this point would no longer be able to be...
-
Page 21: Battery Maintenance
More information A detailed description of battery maintenance can be found at sonnen.de/batteriep- flege-sonnenbatterie. 5.5 Regular software updates Regular software updates are performed to keep the storage system up to date and minimise potential malfunctions. - Page 22 Information on which software version is currently installed on your storage system can be found on the sonnen app or the internet portal (go to sonnenBatterie > De- tails). You will also find a link to the version notes there, which describe the changes implemented in the respective software version.
-
Page 23: Digital Sonnen World
You can access the sonnen app at any time from home or on the go. It provides a de- tailed yet clear overview of products and contracts, data on electricity consumption and generation, energy services and your involvement in the sonnenCommunity. - Page 24 Contract Documents and Reports. Help & Support For help with the sonnen app and sonnen products, please go to Help & Support. Here you will find answers to frequently asked questions or you can send a support request directly to sonnen and also check the status of the requests.
-
Page 25: Emergency Power Function (Optional)
Operating instructions sonnenBatterie 10 performance+ 7 Emergency power function (optional) 7 Emergency power function (optional) • Both when the sonnenBatterie 10 performance+ is first being installed and after the fact, the emergency power function can be added to the system. g Observe the Safety [P. 7] information for the storage system at all times! Connection options for the storage system with emergency power function The emergency power function of the storage system is designed as standard to... -
Page 26: Grid Operation - No Grid Outage
7 Emergency power function (optional) Operating instructions sonnenBatterie 10 performance+ 7.2.1 Grid operation – no grid outage Illustration 7: Normal operation – no grid outage (A: connection option 1; B: connection option Consumers connected to phase L1 PV system Consumers connected to phase L2 Public electricity grid Consumers connected to phase L3 PV system (for AC Microgrid) -
Page 27: Backup Operation - Grid Outage (Without Ac Microgrid)
The switch from grid to backup operation or standalone operation is indicated on the storage system by the sonnen Eclipse (light ring). The colour of the sonnen Eclipse changes from white (normal operation) to green (backup/standalone operation) As soon as the public electricity grid is back up and running, the storage system switches back to grid operation. -
Page 28: Standalone Operation - Grid Outage (With Ac Microgrid)
The switch from grid to backup operation or standalone operation is indicated on the storage system by the sonnen Eclipse (light ring). The colour of the sonnen Eclipse changes from white (normal operation) to green (backup/standalone opera-... -
Page 29: Backup Operation - Overload Detection
Operating instructions sonnenBatterie 10 performance+ 7 Emergency power function (optional) Automatic stop and start of standalone operation The storage system continues to provide electrical power to the consumers until a min- imum battery charging status is reached and there is no (or no sufficient) PV genera- tion. -
Page 30: Ac Microgrid Reenabling Time
7 Emergency power function (optional) Operating instructions sonnenBatterie 10 performance+ 7.2.6 AC microgrid reenabling time The reenabling times define the three times at which the storage system tries to re- store standalone operation by checking whether the PV system is producing enough electricity to start the storage system and supply the active electrical consumers with power. -
Page 31: Maintenance
Operating instructions sonnenBatterie 10 performance+ 8 Maintenance 8 Maintenance For fault-free, safe, reliable and long-lasting operation of the storage system, it is es- sential to carry out regular function checks and cleaning. The battery modules installed in the storage system do not require maintenance. 8.1 Checking function Maintenance interval Action to be taken... -
Page 32: Uninstallation And Disposal
Dispose of the storage system and the batter- ies it contains in an environmentally friendly way through suitable collection systems. g Contact sonnen GmbH to dispose of old bat- teries. In accordance with the German Battery Act (BattG 2009), sonnen GmbH will accept old batteries free of charge. -
Page 33: Troubleshooting
The sonnen Eclipse of the The storage system has detec- g Contact your installer or the sonnen storage system illuminates red. ted a problem that is prevent- service team to get help resolving the ing normal operation or may problem. -
Page 34: Sonnenbatterie 10 Performance+ With Emergency Power Function
Backup operation does not start. No backup buffer is set. The bat- When the grid outage is over and The sonnen Eclipse pulses green teries of the storage system have the public electricity grid once and switches off after several... - Page 35 The sonnen Eclipse on the stor- g Switch on the affected circuit age system pulses green. The illu- breaker once any faults are cor- minated switch does not light up.
-
Page 36: Technical Data
11 Technical data Operating instructions sonnenBatterie 10 performance+ 11 Technical data 11.1 sonnenBatterie 10 performance+ System data (AC) sonnenBatterie 10 performance+ General Nominal voltage 400 V Nominal frequency 50 Hz Nominal power* 12,000 W Apparent power 12,000 VA Nominal current 17.4 A Max. inverter efficiency 97.2 % Power factor range 0.9 capacitive ... - Page 37 Operating instructions sonnenBatterie 10 performance+ 11 Technical data Mains connection fuse Miniature circuit breaker 63 A max. Switchover time approx. 10 s Switchback time approx. 3 s Safety Protection class I / PE conductor Required fault current monitoring In TT networks: Residual current device (RCD) with a rated differential current of max.
