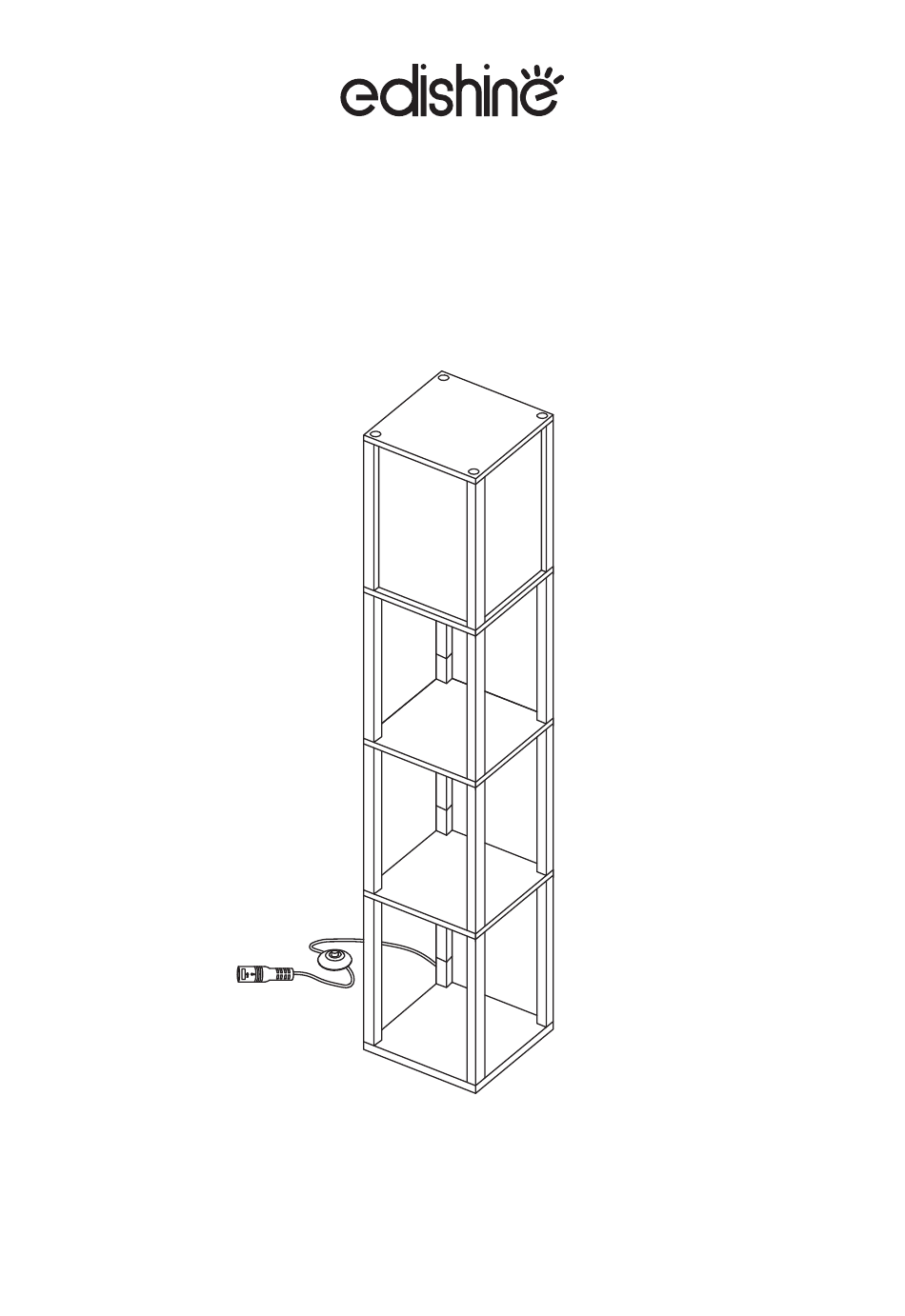

- Page 1 Floor Lamp [Instruction Manual] Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V40104...
-
Page 2: Packing List
CAUTION 1. Before assembly, place all parts out on a clean flat surface and inspect each part for defects that may have occurred during shipping. 2. Inspect wire insulation for any cuts, abrasions or exposed copper that may have resulted during shipping. If there are any defects in the wire, DO NOT continue assembly. - Page 3 1. Assemble the lamp base by screwing bolt(B) three poles (D) and an LED pole with wire (F) clockwise into the thick baseboard (C) until tight. Place the cushion (A) to cover each hole. Then screw the two-side bolts (E) into three poles (D) and place the middle board (G) on the bolts. Ensure that the big hole on the board is on the same side as the LED pole with wire (F).
- Page 4 3.Screw three poles (D) into the exposed part of the two-side bolts (E). Take the LED pole with wire (I) and connect it with the exposed part of the direct current connector. Then, screw the two-side bolts (E) into the four poles (D and I) and place the middle board (J) on the bolts，ensure the LED light on the middle board (J) is upwards.
- Page 5 4.Screw four poles (K) into the exposed part of the two-side bolts (E). Ensure that the installation groove of the light shield on the pole (K) faces inwards. Insert the four light shields (L) into the installation groove of the light shield.
-
Page 6: Specifications
Specifications - Product Height: 163 cm - Base Diameter: 29 cm - Cable length: 170 cm - Materials: Wood，Iron，PVC - Input Voltage: 100-240VAC 50/60Hz - Power: 20W - Lumen: 1530LM One Year Limited Warranty Supported by our professional R&D team and QC team, we provide One Year Warranty for materials and workmanship from the purchase date.
