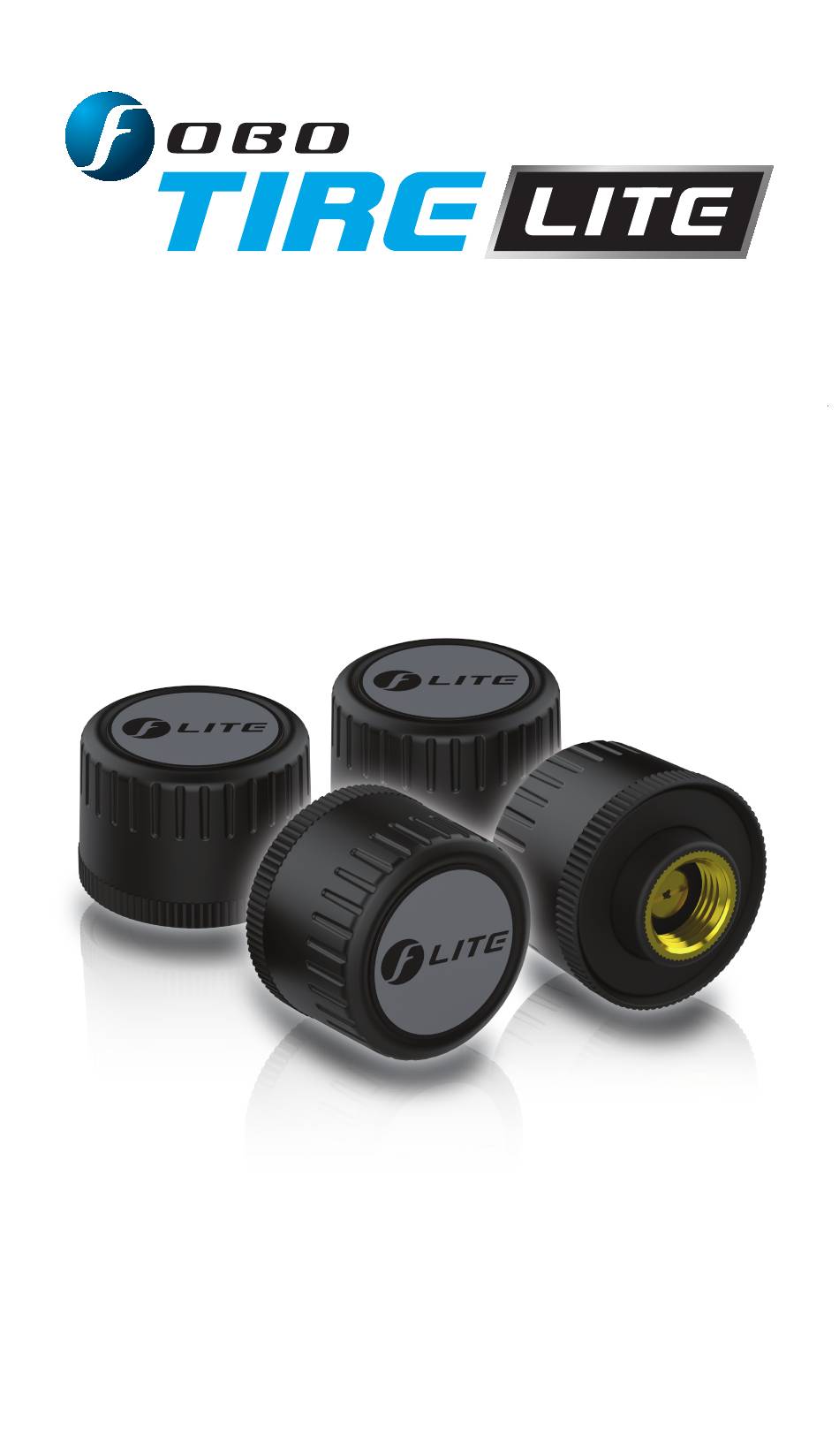

- Page 1 Quick Start Guide PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY...
- Page 2 Play Store & the App Store. FOBO TPMS Ensure that Bluetooth, Location services, and Internet connection are turned on in your smartphone settings. Open the FOBO TPMS App and sign in/sign up using your personal email address, or sign in via Google account.
- Page 3 Allow all permissions requested by the App. To install FOBO TIRE LITE sensor, press the plus (+) button in the middle of the screen.
- Page 4 This screen will prompt you to select the product type. Choose “FOBO Tire” and press the “Next” button.
- Page 5 On the “Profile Creation” screen, select the installation type. Note that there are two types of FOBO Tire products: one with an In-Car unit and the other without (FOBO TIRE LITE). Select “FOBO TIRE LITE” and press the “Next” button.
- Page 6 You will be prompted to scan the QR code located to the product box. Scan the QR code, and the app will automatically proceed to the next screen. However, should you lose the product box (along with the QR code), press the “Skip” button and manually install the 4 sensors one by one.
- Page 7 Enter a profile name (or vehicle name). Optionally, you can also set a vehicle photo. After entering the profile name, press the “Next” button.
- Page 8 Enter the recommended tire pressure settings. After setting the pressure, press the “Next” button.
- Page 9 Install each sensor on the tire that matches the position shown on its label. To install a sensor, unscrew sensor cover to remove battery tab. Then, screw the sensor cover back on, ensuring it is tightly secured. Unscrew sensor cover Remove battery...
- Page 10 1. Screw on the FOBO Lock-Nut to the tire valve with ‘bump’ facing inward until the end of the valve thread. 2. Screw on the FOBO TIRE LITE sensor to the tire valve securely. 3. Turn the FOBO Lock-nut counter-clock wise as though you are removing it until it meets the FOBO TIRE LITE sensor.
- Page 11 Your installation is now complete ! You should now be able to see the sensor readings for each tire on the app’s main screen.
- Page 12 www.my-fobo.com...
