EN - User Guide 1Control LINK
1 - RECOMMENDATIONS
Description

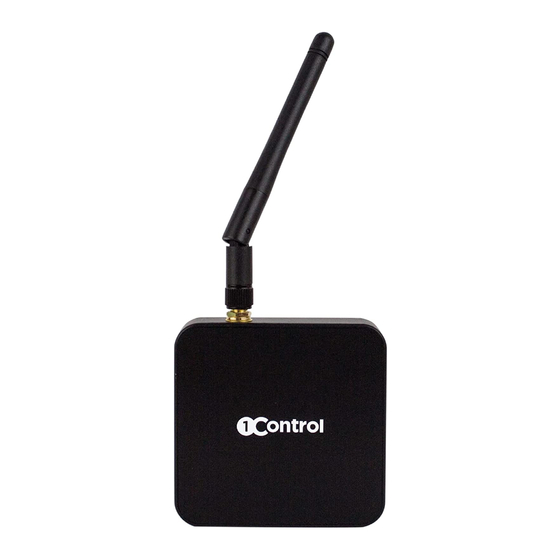

1Control LINK is an electronic device that allows you to control 1Control SOLO or 1Control
DORY devices.
1Control LINK communicates with 1Control SOLO or 1Control DORY using the Bluetooth
LE 4 protocol. 1Control LINK connects to the Internet through a 2.4 GHz Wi-Fi network or
via RJ45 LAN network cable.
Operating distance
The maximum distance between 1Control LINK and 1Control SOLO or 1Control DORY
varies according to environmental conditions. Typically this distance is between 15 and
30 meters.
To maximize the range of 1Control LINK, it is best to place it at least 1 meter from the
ground and in a place where there are no obstacles between 1Control LINK and 1Control
SOLO or 1Control DORY. Reinforced concrete walls or metal boxes can weaken or block
the 1Control LINK signal.
Examples of positioning:
A) 1Control SOLO placed near the gate and 1Control LINK placed in the house on the win-
dow closest to the gate. This solution allows you to open the gate both using Bluetooth
and using Wi-Fi.
B) 1Control SOLO and 1Control LINK both placed in the house on the window closest
to the gate. In this way, taking advantage of the operating range of the remote control
copied into your SOLO, it is possible to cover a greater distance and open through the
Wi-Fi.
Advertisement
Related Manuals for 1Control LINK
Summary of Contents for 1Control LINK
- Page 1 Typically this distance is between 15 and 30 meters. To maximize the range of 1Control LINK, it is best to place it at least 1 meter from the ground and in a place where there are no obstacles between 1Control LINK and 1Control SOLO or 1Control DORY.
- Page 2 1Control LINK must be placed in a place sheltered from atmospheric agents. Security When using 1Control LINK for the first time, an 8-digit numeric PIN code must be set. This PIN must be kept secret. Owners of the PIN code are considered administrators of the device.
- Page 3 Factory reset It is possible to completely delete all data stored on the LINK by restoring it to factory conditions. To reset, press and hold the reset button on the device for more than 10 se- conds. Restoring the device causes the loss of all saved data.
- Page 4 1Control LINK is a wireless transmitter. Although it conforms to all applicable norms and regulations and it is CE marked, like any wireless device, 1Control LINK may interfere with some electronic and medical devices: please abide by the applicable regulations.
- Page 5 Elements that void the warranty This warranty is not applicable and 1Control is not responsible in case the Software or device Hardware are: • used for commercial purposes including leasing and renting;...
- Page 6 1Control and cannot be claimed by the consumer in any way. To the extent permitted by applicable law and in the absence of fraud, no responsibility can be attributed to 1Control for damages for loss of user data caused by any defect co- vered by the warranty.
- Page 7 6 - CONFORMITY 1Control LINK was built in compliance with the technical standards and directives in force on 01.12.2022 and can be consulted at this direct link to the Declaration of Conformity: www.1control.it/conformityLINK Brescia 01.12.2022, Legal representative, Marco Streparava...
