E-Port Home Single

Installation Guide

Table of Contents

Need help?

Do you have a question about the E-Port Home Single and is the answer not in the manual?

Questions and answers

Summary of Contents for Mounting Systems E-Port Home Single

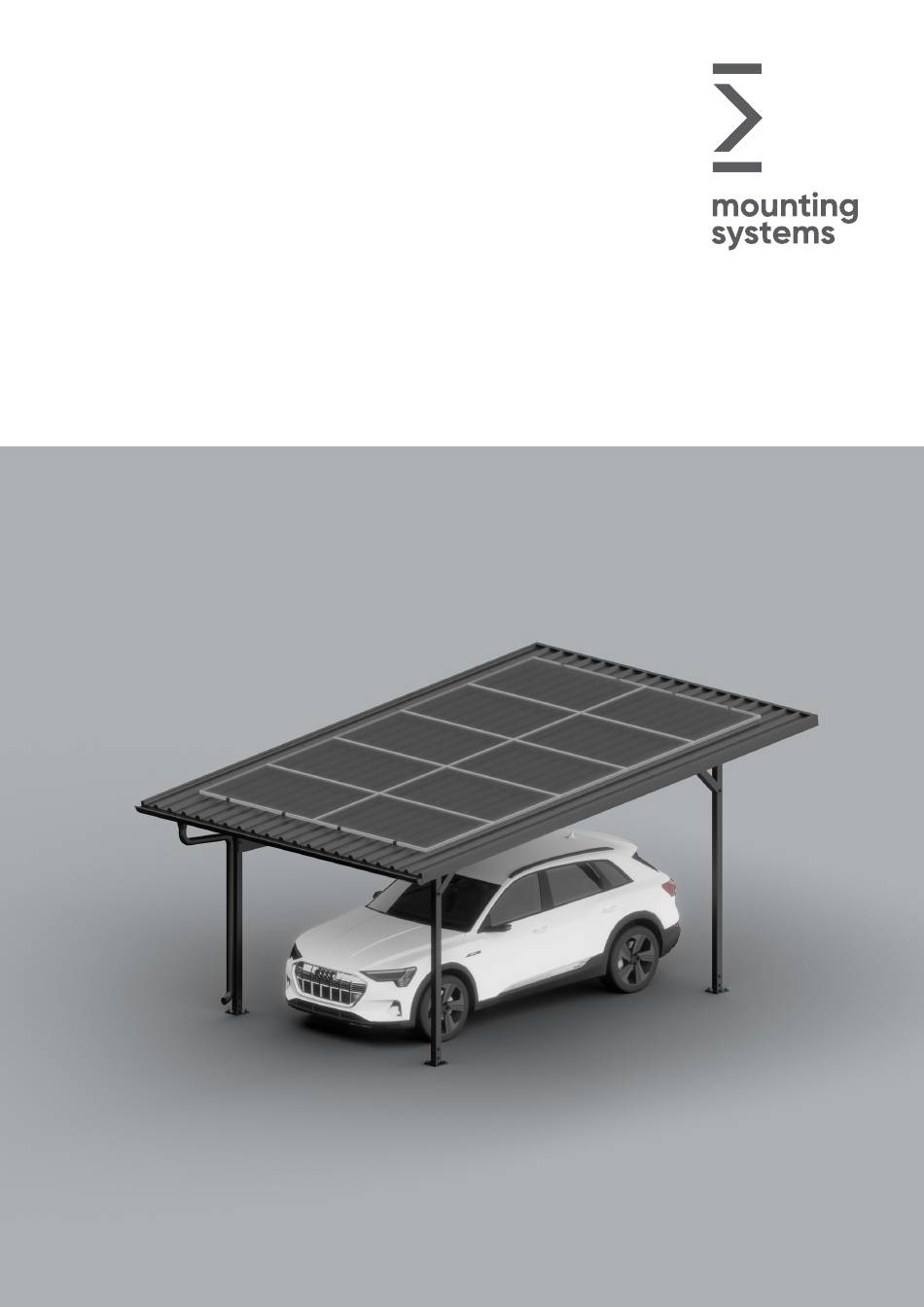

Page 1 E-Port Home Single Installation Guide...
Page 2: Table Of Contents
Contents Introduction Fixing the roof gutter Brief description Downpipe About the Guide Warnings Planning the module area Safety for a transverse installation Technical description Fixing the profile rails for a transverse installation Basic system information Constituent components Technical data Transverse installation of modules 11.1 Fixing the Clickstones Important assembly instructions 11.2 Fixing the modules from the outside...
Page 3: Introduction
1.1 Brief description Please read both this installation manual and the above mentioned documents carefully prior E-Port Home Single is a sturdy single parking to any installation, maintenance or disassembly spot for a vehicle, allowing for an installation of work. You will be provided with all information...
Page 4: Warnings
The following warnings are used in these All universally valid safety instructions for products of Installation Instructions to indicate safety- Mounting Systems GmbH are listed in the document related information. They include: “Installation manual for PV mounting systems – general part”. Please read this document carefully •...
Page 5: Technical Description
E-Port Home Single 4135 mm Note! The roof surface can be completely covered with modules Components of the E-Port Home Single: a Support Attention! b Trapezoidal sheet Stability in the edge c Roof gutter area of the roof.
Page 6: Constituent Components
2.2 Constituent components Check the delivery for completeness. Components of the vertical pipe in the drainage system (17-39) and the module installation kit (40) are not shown. Feet = 4x Front Support (2710 mm) = 2x Rafters = 2x Rear Support (2230 mm) = 2x Sheet piece = 4x Sheet piece = 4x Bracket = 8x...
Page 7 Pipe plug end caps Hex screw ISO4014 M16x110 Cross brace = 4x Inverter plate Hex screw ISO4014 M16x115 Attention! Unpacking and assembly require the participationof many people. The sheet metal components may bend out of shape. Module assembly set E-Port Home Single...
Page 8 Part no. Count Designation Teil - Nr. Anzahl Bezeichnung Foot Gutter connector RS 125, RAL 9005 (Niagara) Front support, 2710 mm, 80x80x3, Gutter drain 125/90, EN10210-3 RAL 9005 (Niagara) Rafters, 4345 mm, 80x80x3, Downpipe clamp D90 mm/1,5 mm EN10210-2 RAL 9005 (Niagara) Rear support, 2230 mm, 80x80x3, Pipe end piece D90 mm EN10210-3...
Page 9: Important Assembly Instructions
Important assembly instructions 3.1 Usage conditions 3.2 Preparation ahead of assembly • maximum snow load on the ground: 0.85 kN/m2 Mounting Systems recommends you should • maximum wind load: 0.69 kN/m2 acquire complete knowledge about the local • no shadow conditions before ordering your E-Port Home •...
Page 10: Feet Placement Planning
Feet placement planning Attention! Measure the placement of the feet (1) and fix them Pay attention to the alignment of in the measured positions. For this purpose, use the the foot plates so that the supports can anchors installed in the prepared foundation. be attached to them later.
Page 11: Fixing The Supports
M16 nuts (28). • Fix the cross brace (11) at the rear between the support (4) and rafter (3) using two M16x110 hex screws (31), four M16 was- hers (35) and two M16 nuts (34). 35Nm E-Port Home Single...
Page 12: Fixing The Supports To The Feet
• Fix the cross strut (36) between the support (4) and rafter (3) using two M16x110 hex screws (35), four washers and two M16 nuts similar to the previous step. To attach the inverter plate (37), use the two M16x115 (38) screws, four washers and two M16 nuts.
Page 13: Installation Of The Superstructure
(3). • The M16x110 hex screw (31), two washers M16 (27) and a M16 hex nut (28) are required for fastening to the transverse beam (8). • Finally, place the screw caps on the screws and nuts. E-Port Home Single...
Page 14: Fixing The Trapezoidal Sheet
(8) and fasten the trapezoidal sheet in the raised beads using the drilling screws 5.5x0.8x60 (31) and the callotes (15). Drill screw 5.5 - max. screw-in speed 1800 rpm ATTENTION E-Port Home Single max. usable area ca. 24.00 m2 Installation guide...
Page 15 (8) from above and below using the 5.5x0.8x19 (30) drilling screws. • Adjust the edge flashings so that the entire length of the E-Port is covered. • Use the short edge flashing (12) for the overlaps E-Port Home Single...
Page 16 Mounting steps: Fixation of the flashings at the front and backside • Fasten the long edge flashing (13) with the flashing holder (14) to the trapezoidal sheet (11) using a 5.5x0.8x19 (31) drilling screw from above and below. • Use two drilling screw 5.5x0.8x19 (36) each to fix the overlap at the corner from above and below.
Page 17: 8. Fixing The Roof Gutter 3 8.1 Downpipe
Then press the gutter connector (24) together by hand so that it touches the gutter. • Then bend the latch until the clasp snaps into place. • Pipe socket (39) is used to connect the cut downpipe element to the downpipe bend (19). E-Port Home Single...
Page 18 8.1 Downpipe The 3 metres long downpipe (20) is divided into two elements, downpipe and intermediate piece. • Attach the gutter drain (23) for the downpipe (20) to the gutter with the hole already cut out. • Attach the downpipe (22) to the support (4) using the downpipe clamps (24).
Page 19 Design according to local conditions in cladding meet the increased structural requirements due to the PV system as well as accordance with Eurocode 1-DIN EN 1991-1-1/ Eurocode 9-DIN EN 1999-1-1 required the mounting operation. E-Port Home Single...
Page 20 10. Planning the profile rails for a landscape installation Danger! Risk of death due to falling components! For a landscape installation, install 130 mm rail components (Rail 1/16). EPDM insulation bands are Components falling from the roof already in place. They do not have to be embedded may cause severe injury or death! again.
Page 21 Make sure that the correct vertical distances between the rail sections are maintained. Danger! Material damage due to incorrect assembly. Incorrectly mounted thin sheet metal screws can tear out. Thin sheet screws must be tightened very well, yet not overtightened. E-Port Home Single...
Page 22: Fixing The Clickstones
11. Mounting modules in landscape orientation The modules are mounted one after the other on the profile rails. Mounting Systems GmbH recommends mounting the modules in columns from the bottom to the top. Module holders and module end holders are used to fix the modules. The module end holders can each hold one module.
Page 23 Accordingly, the screw must first be unscrewed to above the lugs before the Clickstone can be removed from the base rail again by pressing it together and lifting it. E-Port Home Single...
Page 24: Fixing The Modules From The Outside
11.2 Fixing the modules from the outside The edge modules of the PV system (in the case of landscape installation, the upper and lower module rows) are fastened on the outside with two module end clamps each. Mounting steps: • Insert the Clickstone of the end module holder centrally into the rail channel of the profile rail.
Page 25 Overloaded thin sheet metal screws can tear out. Make sure that the module end holder is positioned correctly. It is essential that the Clickstone is positioned between the two thin sheet metal screws of the rail element. E-Port Home Single...
Page 26: Fixing The Modules From The Inside
11.3 Fixing the modules from the inside Two module holders are fixed between each two modules. Mounting steps: • Insert the Clickstone of the module holder into the rail channel of the profile rail. • Push the module holder all the way up to the frame of the already mounted module.
Page 27 The roof surface can be completely covered with modules Attention! Stability in the edge area of the roof. The edge area is not accessible. There is a risk that the surfaces may buckle at the edges. Module field E-Port Home Single E-Port Home Single...
Page 28 12. Planning the module area for a portrait layout For portrait installation, the profile rails are fastened to the beads of the trapezoidal sheet by means of fixing clips. The clips must be mounted with a defined distance, which depends on the material and thickness of the trapezoidal sheet, the distance to the high beads, the position on the roof and the on- site conditions.* The layout is defined by the design in the configuration tool or...
Page 29 13. Mounting modules in portrait orientation The modules are mounted one after the other on the profile rails. Mounting Systems GmbH recommends mounting the modules starting from one side. Module holders and module end holders are used to fix the modules.
Page 30 Note! Attention! The noses on the internal sides of Damage to material due the Clickstones are constructed so to incorrect installation. that it is impossible for them to become dislocated when the screw Incorrectly installed Clickstones is tightened. Accordingly, the screw may be ripped out.
Page 31 Make sure the Clickstones are fixed properly. Slide the module all the way to the end clamp. When tightening screws, adhere to the indicated torque values. After installation make sure that the module is fixed well. E-Port Home Single...
Page 32 13.3 Fixing the modules from the inside Always fix two module clamps between modules Mounting Steps: • Embed the Clickstone of the end clamp in the profile rail channel. • Slide the module clamp all the way to the frame of the module already installed. •...
Page 33 Fix the modules analogously to the first row using clamps and end clamps (see 13.2 and 13.3). Note! Use e.g. the module clamp as a distance indicator. In this way, one can achieve the same vertical and horizontal distances between modules. E-Port Home Single...
Page 34 Fax: +49 33708 529 - 199 Fax: +49 221 29277 - 629 Fax: +49 221 29277 - 629 Mail: info-de@mounting-systems.com Mail: info-de@mounting-systems.com Mail: info-de@mounting-systems.com Mail: info-de@mounting-systems.com Subject to technical alterations 2023 © Mounting Systems GmbH Subject to technical alterations 2025 © Mounting Systems GmbH...
