- Page 1 Raspberry Pi Monitor Published December 2024 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Raspberry Pi Ltd...

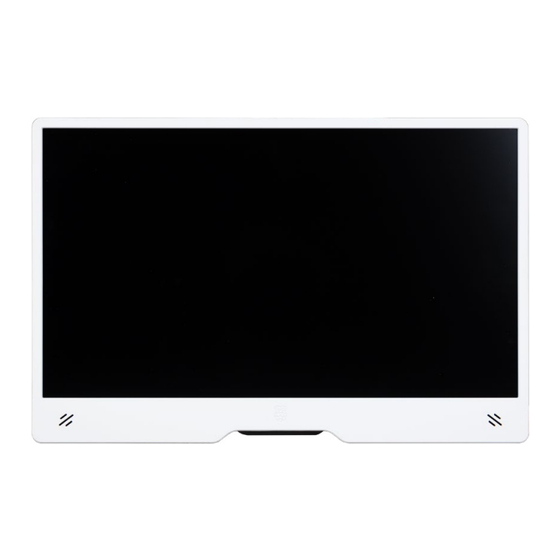

- Page 2 Overview The Raspberry Pi Monitor is a 15.6-inch full HD computer display. User-friendly, versatile, compact and affordable, it is the perfect desktop display companion for both Raspberry Pi computers and other devices. With built-in audio via two front-facing speakers, and VESA and screw mounting options as well as an integrated angle-adjustable stand, the Raspberry Pi Monitor is ideal for desktop use or for integration into projects and systems.
-
Page 3: Specification
Colour depth: 16.2M Brightness (typical): 250 nits Power: 1.5A at 5V Can be powered directly from a Raspberry Pi USB port (max 60% brightness, 50% volume) or by a separate power supply (max 100% brightness, 100% volume) Connectivity: Standard HDMI port (1.4 compliant) 3.5mm stereo headphone jack... -
Page 4: Quick Start Instructions
• Turn the monitor on and off with the power button on the back • Find your preferred viewing angle by adjusting the integrated stand • Tidy the cables using the notch at the base of the monitor Raspberry Pi Monitor – Raspberry Pi Ltd... - Page 5 Connecting your Raspberry Pi Monitor Make sure you use the right power supply for your Raspberry Pi. Check which you need: rptl.io/powersupplies Powered from Raspberry Pi Maximum 60% brightness | 50% volume USBC from Monitor HDMI from Monitor Micro HDMI to Monitor...
-
Page 6: Physical Specification
All dimensions are approximate and for reference purposes only. The dimensions shown should not be used for producing production data The dimensions are subject to part and manufacturing tolerances Dimensions may be subject to change Raspberry Pi Monitor – Raspberry Pi Ltd... -
Page 7: Safety Instructions
• Do not expose to water or moisture • Do not expose to heat from any external source; the Raspberry Pi Monitor is designed for reliable operation at normal ambient temperatures • Take care whilst handling to avoid mechanical or electrical damage to the product •... - Page 8 Raspberry Pi Monitor – Raspberry Pi Ltd...
- Page 9 Raspberry Pi is a trademark of Raspberry Pi Ltd...
