11 Callywhite Business Park, Callywhite Lane, Dronfield S18 2XP
+44(0)1246 417113
Specification
• Number of channels: 4
• Frequency: 868MHz
• Transmission range: Up to 50 metres
• Power supply: 2 x 1.5V AA batteries (Included)
• Code length: 6 digits
• IP rating: IP54 (keep front cover clicked shut when not in use)
• Dimensions: 90h x 72w x 34d mm
• Compatibility: Quantek Receivers & Control Panels. RX-2, RX-2-5A, RX-4, RXMINI1,
RXMINI1-PLUS, RX-T, GDRC, RC1000-MS, RC2000
• Dimensions : 91h x 72w x 33d (mm)
sales@cproxltd.com

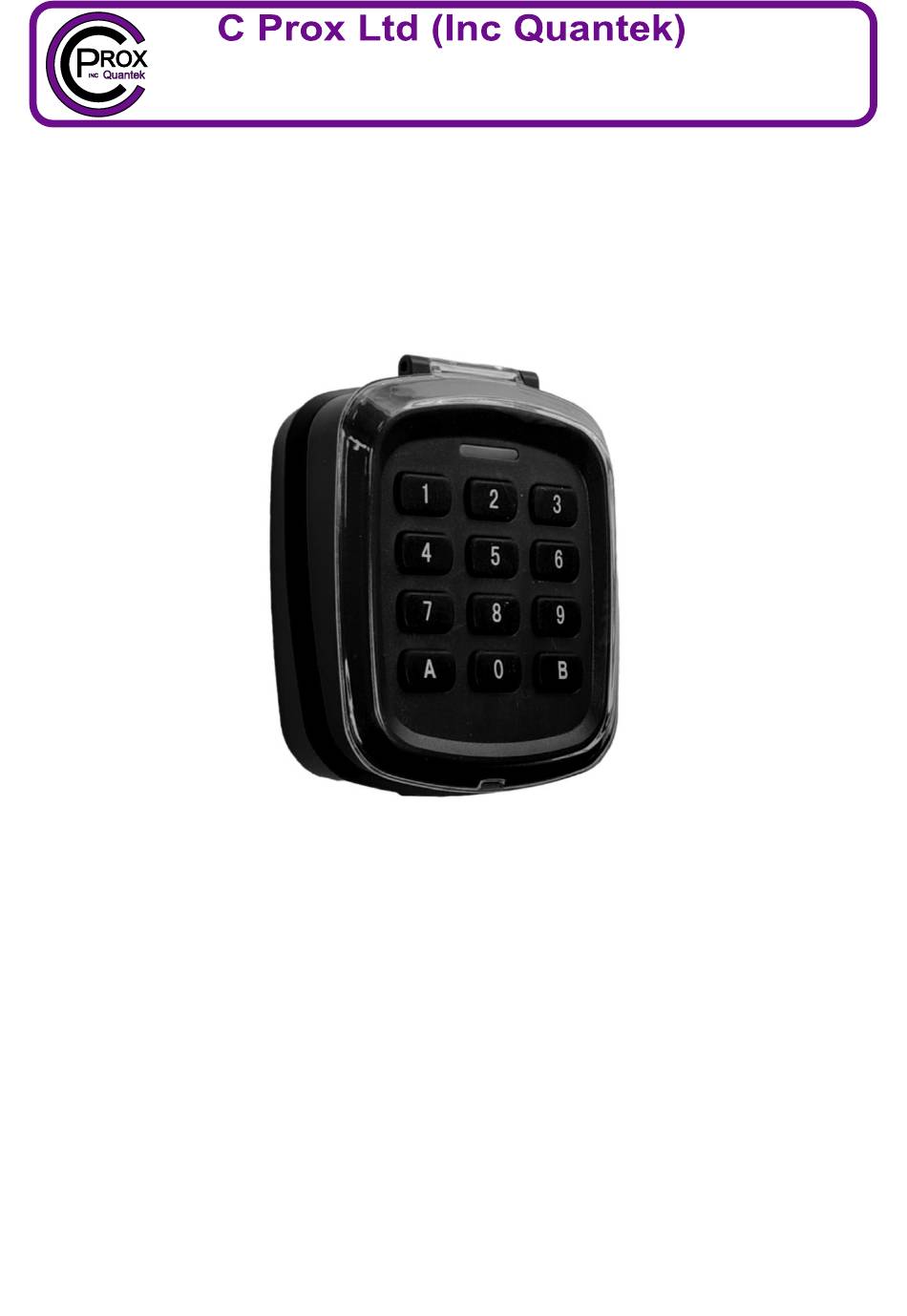

CPWKP
Wireless keypad
www.quantek.co.uk
Advertisement
Summary of Contents for Quantek C Prox CPWKP
- Page 1 • IP rating: IP54 (keep front cover clicked shut when not in use) • Dimensions: 90h x 72w x 34d mm • Compatibility: Quantek Receivers & Control Panels. RX-2, RX-2-5A, RX-4, RXMINI1, RXMINI1-PLUS, RX-T, GDRC, RC1000-MS, RC2000 • Dimensions : 91h x 72w x 33d (mm)
- Page 2 Installation 1. Unscrew the bottom retaining screw and remove the back plate from the keypad. 2. Fix the back plate securely to the wall. 3. Fit the keypad back onto the back plate and fit the bottom retaining screw. 4. The clear cover must be clipped down when not in use. Scan to view programming video Changing the master code Please familiarise yourself with the process before attempting it, you have to a maximum of 5 seconds...
- Page 3 Programming access codes into the receiver or control panel 1. Press the program/learn button on the receiver for 1 second. 2. Within 15 seconds, enter the 6 digit access code. 3. The LED on the receiver will flash to confirm. 4.
