Summary of Contents for Pyramid TimeTrax Sync ToneQ Tone

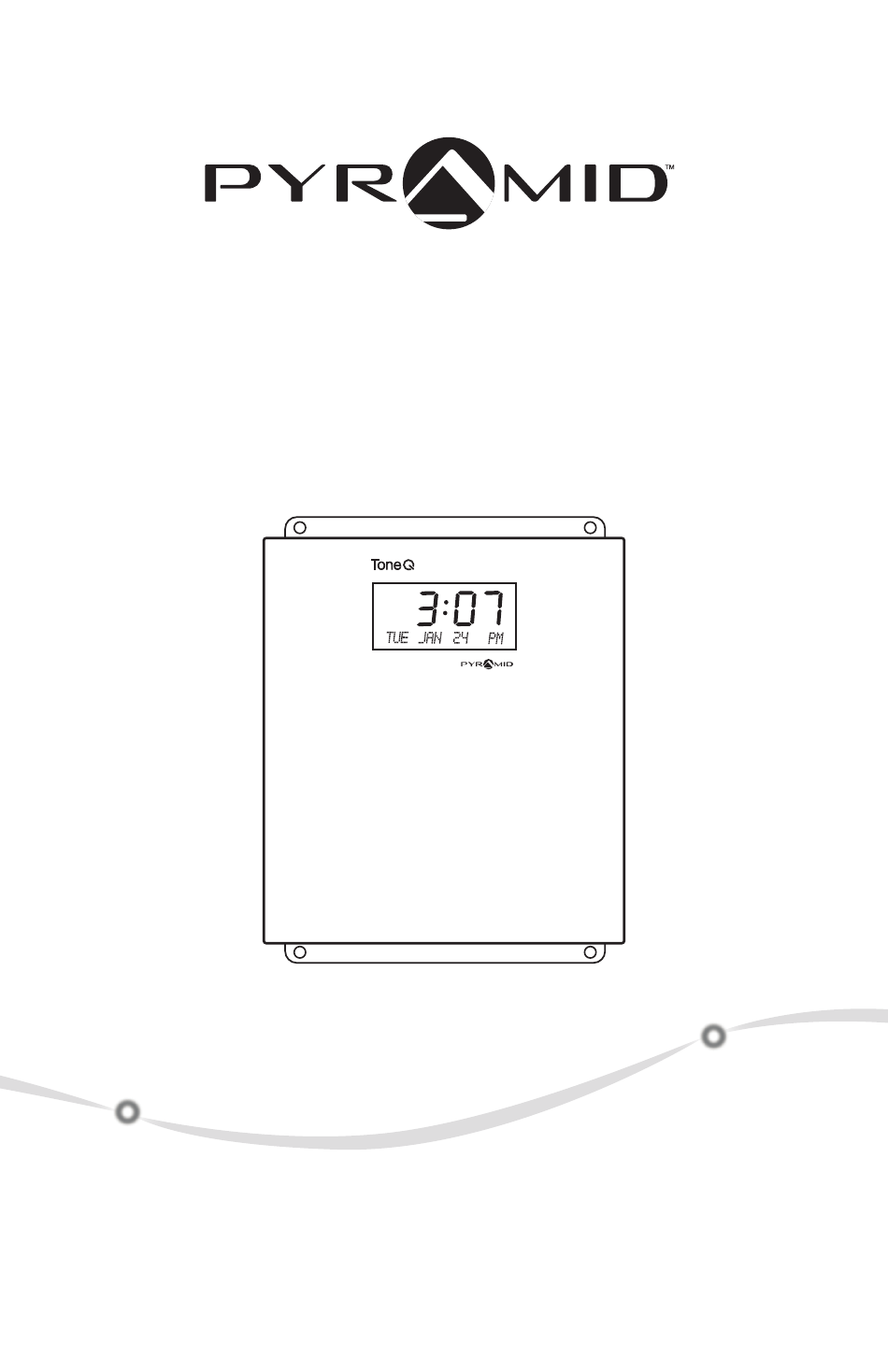

- Page 1 TimeTrax™ Sync ToneQ Tone Generator User Guide pyramidtimesystems.com...
-
Page 2: Table Of Contents
ToneQ User Guide TABLE OF CONTENTS PRODUCT OVERVIEW ............2 AUDIO ................2 BELL ZONES ..............3 PHONE OUT ..............3 BCD OUT .................4 AMPLIFIER CONTACTS ............4 ETHERNET ...............5 SOFTWARE DOWNLOAD ............5 BELL SCHEDULE ..............6 TONE SCHEDULE ..............7 ADDING YOUR OWN TONES ...........9 CURRENT EVENT SCHEDULE ..........10 CHANGING OR DELETING AN EVENT ........ -
Page 3: Product Overview
• Two sets of included relay contacts to control audio playback and muting • BCD output to allow the ToneQ Generator to interface with Pyramid Wired Clocks for total synchronization of your facility • Four independent 24V DC bell zones ToneQ Tone Generator can operate as a stand-alone device once a Tone or Bell schedule is uploaded from the included TimeTrax™... -
Page 4: Bell Zones
ToneQ User Guide BELLS(24VDC)/ZONES 24VDC, max=800mA ZONE 1 ZONE 2 ZONE 3 ZONE 4 NC: Normally Closed C: Common NO: Normally Open ToneQ Tone Generator PHONE OUT RJ-11 connector provides for connection to a PBX paging systems using a standard analog phone line (POTS). -
Page 5: Bcd Out
ToneQ User Guide BCD OUT Provides time output to various compatible BCD Pyramid clocks. Part #’s 5200 (13” analog), 5217N (17” analog), DIG-4B, and DIG-6B. Note: Analog clocks must be ToneQ Tone Generator powered individually and be installed by a licensed electrician. -
Page 6: Ethernet
ToneQ User Guide ETHERNET Computer connection for TimeTrax™ Sync Software. SOFTWARE DOWNLOAD Contact Pyramid Time Systems for software access via download at: Phone: 888-479-7264 Email: WirelessSales@ptitime.com SYSTEM REQUIREMENTS Part Number SASDLCWDXX - TimeTrax Sync™ Software Operating Windows 10 or higher X64 Pentium iV 2.0 Ghz or greater... -
Page 7: Bell Schedule
ToneQ User Guide BELL SCHEDULE Click on Event Schedule. Click on Add Schedule Enter a Schedule ID. Example: M-F. Click Save. Click on Add Event Choose the Event Time for the bell to ring. Choose the Event Duration for how long you want the bell to ring. Select Days you would like the bell to ring. -
Page 8: Tone Schedule
ToneQ User Guide Click UPLOAD. Click on the Schedule you want to Upload and Choose ToneQ as the Device you want to upload to. Click Upload & Close. NOTE: ONLY ONE SCHEDULE MAY BE ASSOCIATED WITH THE TONEQ DEVICE AT A TIME. - Page 9 ToneQ User Guide TONE SCHEDULE (CONT.) Click on Add Event Choose the Event Time for the tone to play. Event Duration, choose 0. This will ensure the entire tone is played. (max. 15 secs) Select Days of the week for that event. Under Select Zones, uncheck all zones.
-
Page 10: Adding Your Own Tones
ToneQ User Guide Click UPLOAD. Click on the Schedule you want to Upload and Choose ToneQ as the Device you want to upload to. Click Upload & Close. NOTE: ONLY ONE SCHEDULE MAY BE ASSOCIATED WITH THE TONEQ DEVICE AT A TIME. -
Page 11: Current Event Schedule
ToneQ User Guide CURRENT EVENT SCHEDULE To view what your current event schedule is, click on UPLOAD and view as shown below. CHANGING OR DELETING AN EVENT SCHEDULE If you create a new schedule and you want to change from your existing schedule, you just need to upload your new schedule and it will override the existing schedule. -
Page 12: Hardware Functions
10/100TX hardwire interface, DHCP & NTP conforming to IETF standards Includes ToneQ Tone Generator, TimeTrax™ Sync software download, Power Supply, Ethernet cable, User Guide Warranty 3-year manufacturer’s limited warranty Guarantee 30-day money back guarantee NOTES: Compatible UL approved multi-voltage 24VDC relay is available from Pyramid Part# 43106. 888 479-7264... -
Page 13: Accessories
ToneQ User Guide ACCESSORIES DIG-4B 4” X 4-Digit Red LED Digital Clock, 6ft power cord DIG-6B 4” X 6-Digit Red LED Digital Clock, 6ft power cord 41357G 4” X 4-Digit Red LED Digital Clock, free power leads 61357G 4” X 6-Digit Red LED Digital Clock, free power leads 5200 13”... - Page 14 CONTACT US: For more information, visit pyramidtimesystems.com or call our technical support team at 888 479-7264 during regular business hours: 8:30am-5pm EST, Monday-Friday. Copyright © 2024 Pyramid Time Systems, LLC. All rights reserved. I2287 - Rev A...
