Summary of Contents for Jinko Solar JKS-B19237-CS

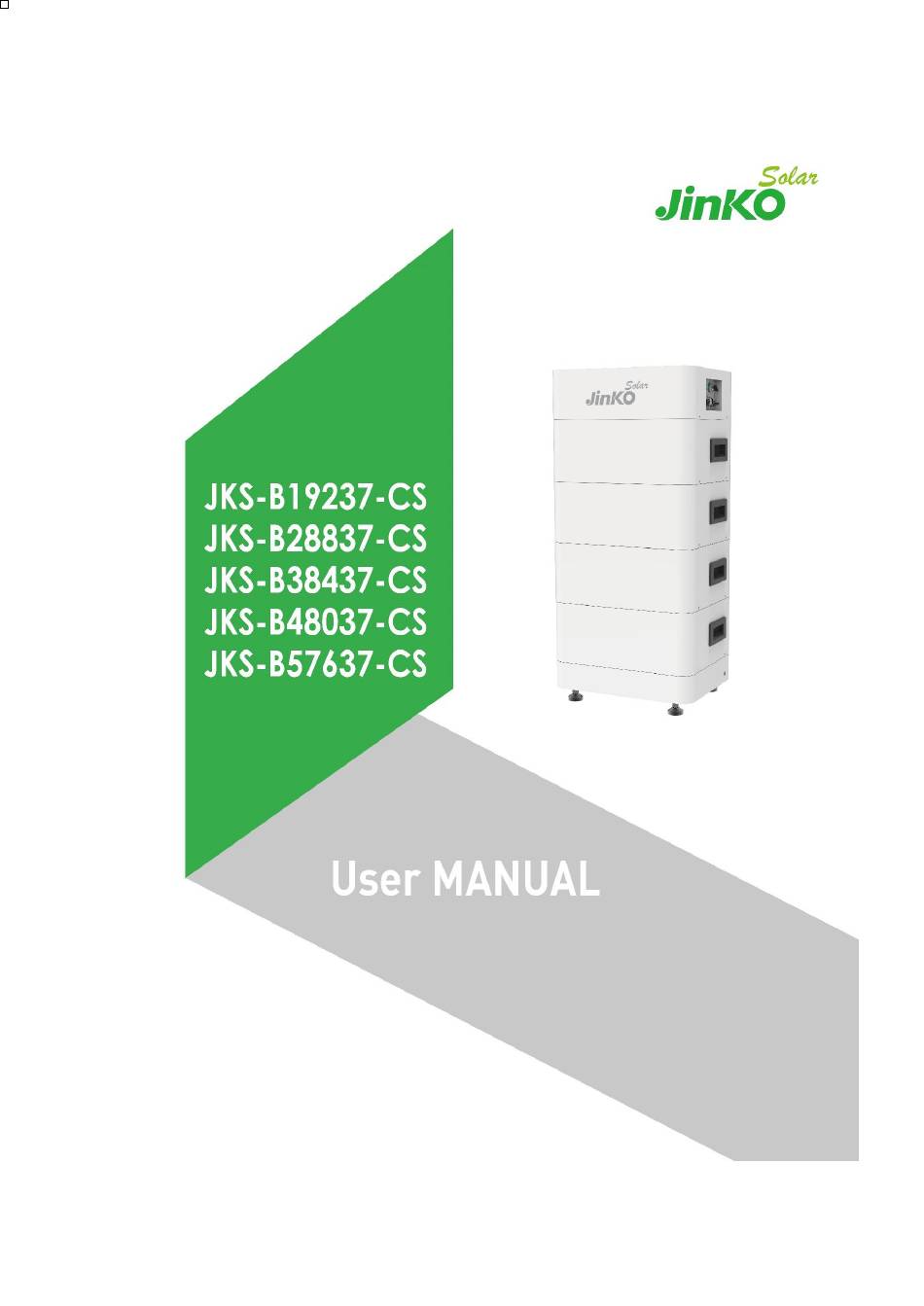

Page 1 在此处键入文本...
Page 2: Table Of Contents
JKS-BXXX37-CS User Manual Content Statement of Law ....................Safety handling of lithium batteries Guide ............. 1 Introduction ....................1.1 Brief Introduction ....................4 1.2 Product Properties ....................4 1.3 Product identity definition ................... 4 2 Product Specification ..................2.1 System Performance Parameter ................6 2.2 Battery Module ....................
Page 3: Statement Of Law
JKS-BXXX37-CS User Manual Statement of Law ⚫ Copyright of this document belongs to JinkoSolar Co., Ltd. ⚫ No part of this documentation maybe excerpted, reproduced, translated, annotated or duplicated in any form or by any means without the prior written authorization of JinkoSolar Co., Ltd.
Page 4: Safety Handling Of Lithium Batteries Guide
JKS-BXXX37-CS User Manual Safety handling of lithium batteries Guide This is a high voltage DC system, and it must be operated only by a qualified person. Please, read carefully the Operation Menu and User manual before installation. Symbol ● Battery strings will produce high voltage DC power and can cause a lethal voltage and electric shock.
Page 5 JKS-BXXX37-CS ESS Unit User Manual ⚫ In case of fire, use only dry power fire extinguisher. Liquid fire extinguisher are forbidden. ⚫ It is forbidden to open, repair or disassemble the battery except for JinkoSolar experts or experts expressly authorised by Jinko to do so. We are not responsible for any consequences or liability arising from the violation of operational or equipment safety regulations.
Page 6: Introduction
JKS-BXXX37-CS ESS Unit User Manual 1 Introduction 1.1 Brief Introduction JKS-BXXX37-CS is a high voltage lithium iron phosphate battery, develop and produced by JinkoSolar. The system is specially suitable for applications scenes of high power, limited installation space, restricted load-bearing and long cycle life. 1.2 Product Properties ⚫...
Page 7 JKS-BXXX37-CS ESS Unit User Manual Risk of electric shock. Battery voltage is higher that safety voltage. Be aware of the potential hazards when handling the product and act according to safety. Read the user manual before installing, setting or operating the system. The discarded battery or equipment must be recycled by processional personnel or insstitutes.
Page 8: Product Specification
JKS-BXXX37-CS ESS Unit User Manual 2 Product Specification 2.1 System Performance Parameter Table 2-1 The parameter of JKS-BXXX37-CS system JKS-B48037-CS JKS-B38437-CS JKS-B28837-CS JKS-B19237-CS System List JKS-B57637-CS Module Type Total Storing Energy [kWh] 21.31 17.76 14.21 10.66 7.10 Usable Capacity [kWh] 19.17...
Page 9: Battery Module
JKS-BXXX37-CS ESS Unit User Manual System List JKS-B57637-CS JKS-B48037-CS JKS-B38437-CS JKS-B28837-CS JKS-B19237-CS Weight [kg] Battery Module Name JKS-B9637-CS JKS-B9637-CS JKS-B9637-CS JKS-B9637-CS JKS-B9637-CS Battery Module Quantity(pcs) JKS-B38437-CS 2.2 Battery Module Table 2-2 Product parameters...
Page 10 JKS-BXXX37-CS ESS Unit User Manual Module Name JKS-B9637-CS Cell Technology Li-ion(LFP) Battery Module Capacity (kWh) 3.552 Battery Module Voltage (Vdc) Battery Module Capacity (Ah) Battery Module Cell Quantity (pcs) Battery Cell Capacity (Wh) 118.4 Battery Cell Voltage (Vdc) Battery Cell Capacity (Ah) Battery Module Cell Quantity in Series (pcs) Battery Module Charge Voltage (Vdc) 105~108...
Page 11 JKS-BXXX37-CS ESS Unit User Manual Table 2-3 Interface Definition Item Name Definition Composite connector-Plug Battery module output and communication interface Composite connector-Socket Battery module output and communication interface Composite connector-Plug Composite connector-Socket...
Page 12: Battery Controller
JKS-BXXX37-CS ESS Unit User Manual Table 2-4 Port Definition Composite connector-plug Composite connector-socket Negative output Negative output Module positive Module negative SWAKE SWAKE SCANSG SCANSG SCANL SCANL SCANH SCANH 24V- 24V- 24V+ 24V+ SCANIN SCANOUT 2.3 Battery Controller HVB right interface HVB left interface HVB bottom interface...
Page 13 JKS-BXXX37-CS ESS Unit User Manual Table 2-5 Interface Definition Item Name Definition Allows you to reset the battery after pressing and holding for Power Wake Button 8~10s. External Positive Connection of the battery with the positive terminal of the socket inverter.
Page 14 JKS-BXXX37-CS ESS Unit User Manual Definition of “EXT-CAN” port pin Color Definition PIN1 Orange/White Reserved PIN2 Orange XGND PIN3 Green/White Reserved PIN4 Blue CANH PIN5 Blue/White CANL PIN6 Green PIN7 Brown/White Reserved PIN8 Brown DC Circuit Breaker Diagram NOTE: The DC circuit breaker is capable of isolating both + and - conductors, as shown in the circuit diagram above.
Page 15: Installation And Configuration
JKS-BXXX37-CS ESS Unit User Manual 3 Installation and Configuration 3.1 Environmental Requirement 3.1.1 Cleanliness The battery system has high voltage connectors. The environment condition will affect the isolation performance of the system. Before installation and powering the system on, any dust or iron scurfs must be removed to keep a clean environment.
Page 16: Installation Location Precautions
JKS-BXXX37-CS ESS Unit User Manual 3.3 Installation location precautions The battery could be installed both indoor or under the outdoor eaves where is not in direct sunlight, rain fall and snow accumulation. And the clearance to flammable materials or gas should be more than 1 meter.
Page 17: Safety Gear
JKS-BXXX37-CS ESS Unit User Manual NOTE: Use properly insulated tools to prevent accidental electric shock or short circuits. If insulated tools are not available, cover the entire exposed metal surfaces with available insulated alternatives, except their tip, with electrical tape. 3.5 Safety Gear It is recommended to wear the following safety gear when dealing with the battery pack Insulated Gloves...
Page 18 JKS-BXXX37-CS ESS Unit User Manual ⚫ Packages for each model Model Number of JKS-B9637-CS Number of HVB&Base JKS-B19237-CS JKS-B28837-CS JKS-B38437-CS JKS-B48037-CS JKS-B57637-CS Packing list for JKS-B9637-CS Item Specification Quantit Figur Battery Module 96V/37Ah 1 PCS JKS-B9637-CS 504*380*240mm Cross recessed countersunk...
Page 19: Equipment Installation
JKS-BXXX37-CS ESS Unit User Manual Cross recessed countersunk M4*10 4 PCS head screw M6 3 sets of M6*14 1 PCS combined screws Ground terminal OT 4-6 2 PCS User manual ~30Page 1 PCS Power cable To positive pole of 1 PCS connector battery Power cable...
Page 20: Installation Preparation
JKS-BXXX37-CS ESS Unit User Manual 3.7.1 Installation preparation 1. Check that the installation environment meets all technical conditions described at this manual in sections 3.1.1 to 3.1.6. 2. Prepare the equipment and tools for installation. 3. Confirm that the DC breaker is in the OFF state to ensure that it is no live operation. 3.7.2 Mechanical installation Step 1 Place the base Separate the HVB from the base by untightening the screws between them.
Page 21 JKS-BXXX37-CS ESS Unit User Manual ⚫ Fix each module by tighten the four screws at it's right and left side.
Page 22: Electrical Installation
JKS-BXXX37-CS ESS Unit User Manual 3.7.3 Electrical installation Caution: When the DC breaker is tripped off because of over current or short circuit, wait for 30min before turning it on again to avoid damages on the breaker. Power On Button: Generally when it is at ON state, you can’t turn off it during normal running condition.
Page 23 JKS-BXXX37-CS ESS Unit User Manual 3.7.4 Battery system self-test Step 1 Switch the HVB DC BREAKER to the "ON" state Step 2 Switch on the “POWER ON” switch Step 3 Press the “POWER WAKE” button for about 8~10S and the system will start-up Press and hold on 8s~10s Step 4 Use a multimeter to measure the output voltage on the positive and negative ports of the HVB...
Page 24 JKS-BXXX37-CS ESS Unit User Manual ● Switch off the “POWER ON” switch. Switch the HVB “DC BREAKER” to the "OFF" state . ●...
Page 25 JKS-BXXX37-CS ESS Unit User Manual 3.7.6 Connecting inverter Caution: A external DC Breaker that operates both positive and negative conductors simultaneously between the HVB and inverter on the power cable is needed. After waking up the HVB and ensure that the HVB is pre-charged, it can be turned on. Danger: Please confirm that the battery system is in the off state before connecting.
Page 26 JKS-BXXX37-CS ESS Unit User Manual Positive connector *1 Negative connector *1 Tail sleeve *2 Standard red positive wire *1 Standard black negative electrode wire *1 Steps as being followed: ①First, install the tail sleeve on the red or black cable ②Insert the cable core into the internal lock after installation Note: 1.The depth of the core wire head should exceed the locking position to prevent the wire from being unable to be locked.
Page 27 JKS-BXXX37-CS ESS Unit User Manual Connect to inverter RJ45 CAN communication port Warning: Double check the connection of all the power cables and communication cable. Make sure the voltage of the Inverter is in the same level with the battery system. ●...
Page 28 JKS-BXXX37-CS ESS Unit User Manual 4 Battery Expansion(With DC Charger) Caution ⚫ When the system has been in operation for over six months, it is advisable to refrain from introducing new batteries for expansion purposes. If you intend to expand the battery capacity, we kindly request you to proactively consult with Jinko.
Page 29: Battery Expansion
JKS-BXXX37-CS ESS Unit User Manual Step 4: Add the new battery module to the system Step 5：Finalizing Expansion (1)Perform a final assessment of the entire battery system's performance, including the new module and the original batteries. (2) Verify that all components are functioning correctly, and that the system stability is maintained Step 6: Documentation and Reporting (1) Create a detailed report of the expansion process, including integration steps, system performance evaluations, and any adjustments made.
Page 30 JKS-BXXX37-CS ESS Unit User Manual Step 2: Preparing for Expansion (1) Discharge the original battery tower to 40% State of Charge (SOC) (2) Perform a thorough inspection of the new battery module to ensure it's in proper condition for integration. Step 3: Integrating the New Battery Module (1) Add the new battery modules into the existing battery tower.
Page 31 JKS-BXXX37-CS ESS Unit User Manual Step 4: Removing the new battery modules and keep charge the original batteries to SOC 100% (1) Carefully disconnect and remove the new battery module from the integrated system. (2) Restart the charging process for the original battery tower until battery state of charge (SOC) reaches 100% or until the charge current limit reaches 0A.
Page 32 JKS-BXXX37-CS ESS Unit User Manual Step 5: Reintroducing the New Battery Module (1) Reconnect the new battery module, which is already at 100% SOC, to the original battery system. (2) Ensure that the new module is securely integrated into the original system. Furthermore, please remember to restore the original settings of the inverter...
Page 33 JKS-BXXX37-CS ESS Unit User Manual Step 6：Finalizing Expansion (1)Perform a final assessment of the entire battery system's performance, including the new module and the original batteries. (2) Verify that all components are functioning correctly, and that the system stability is maintained Step 7: Documentation and Reporting (1) Create a detailed report of the expansion process, including integration steps, system performance evaluations, and any adjustments made.
Page 34: Maintenance
JKS-BXXX37-CS ESS Unit User Manual 5 Maintenance 4.1 Trouble Shooting: Danger: The JKS-BXXX37-CS battery system is a high voltage DC system, operated by professional and authorized person only. Danger: Before checking the following failure solution, check that all cable connection and switches are under this user manual guidance. If no, make appropriate adjustments and check if the battery system can be woken up normally.
Page 35: Battery Maintenance
JKS-BXXX37-CS ESS Unit User Manual Step 3 Replace the old HVB with a new one. Fix the four screws. 4.3 Battery Maintenance Danger: The maintenance of battery only can be operated by professional and authorized person. Danger: Turn off the battery system and ensure that there is no power at it before doing any maintenance.
Page 36 JKS-BXXX37-CS ESS Unit User Manual...
Page 37: Storage Recommendations
JKS-BXXX37-CS ESS Unit User Manual 6 Storage Recommendations ● For long-term storage (more than 3 months), the battery modules should be stored in a non-corrosive gas atmosphere and within a temperature range of 5 to 45℃ and relative humidity lower than 65% . ●...
Page 38 Appendix I Enclosure Thickness Measured Picture...
Page 39 Appendix II Vin + Vin - DC/DC DC BREAKER DC BREAKER Battery -module HV9637 Battery -module HV9637 P0 P1 P1 P2 P2 P3 P3 BP BP GND Precharge resistor INVERTER Battery -module HV9637 Current detection Battery -module HV9637 HALL HALL...
Page 40 Jinko Solar Co., Ltd. Address: No.1, Yingbin Road Shangrao Economic Development Zone, Jiangxi Province 334100, China. Website: www.jinkosolar.com...
