Columbus McKinnon MAGNETEK L510s Quick Start Manual

1

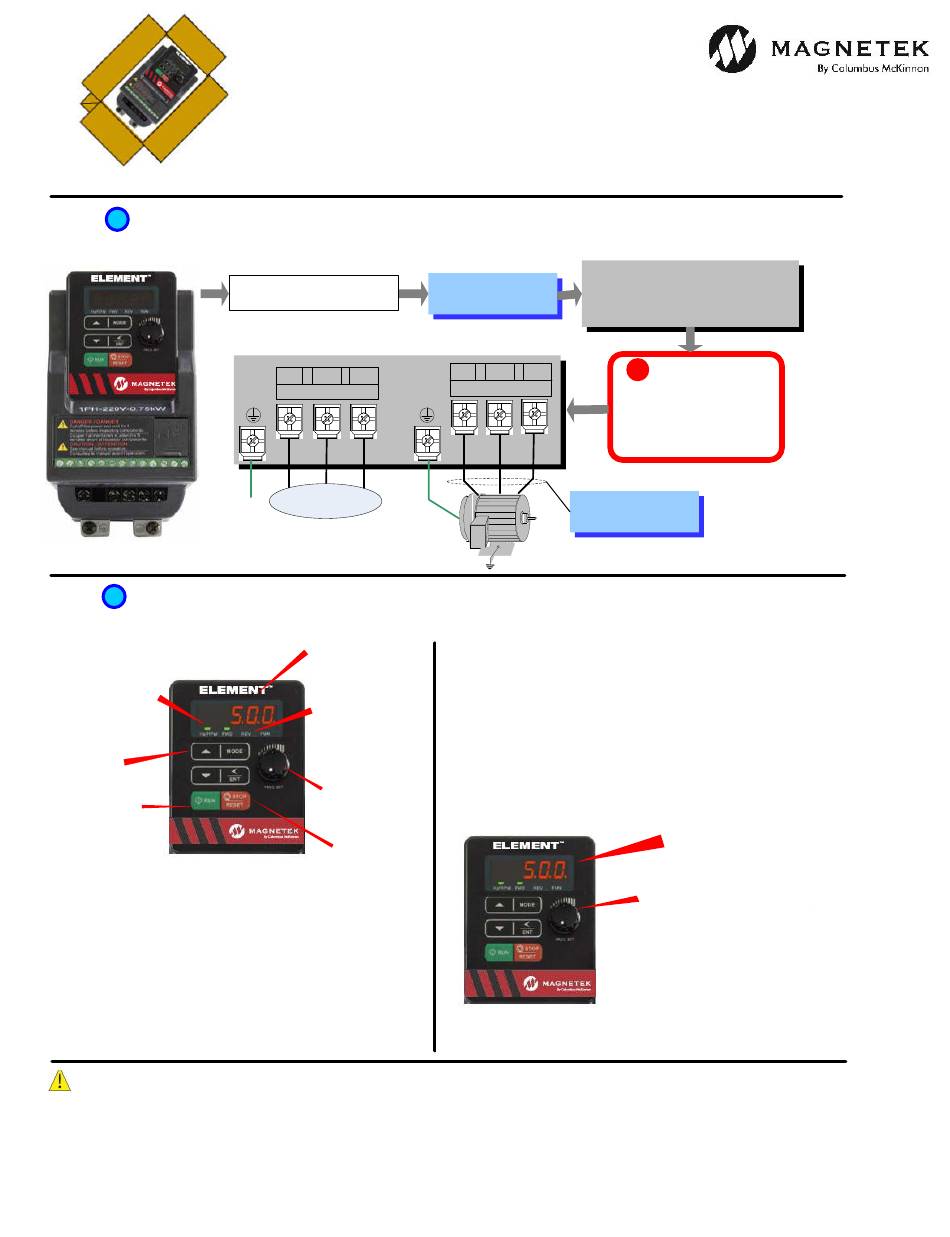

STEP Check Nameplate and Connect Input / Output Wiring -
Check the inverter nameplate to insure that the information agrees with your order. Also insure that the power available is rated
appropriately for the drive being used.
Ground
Note: For 1Ø Input use terminals L1 - L3
2
STEP Power-up the Inverter, check the Digital Operator
In this step, after the initial power-up you will become familiar with the indications and functions of the Digital Operator.
Forward Direction
Status Indicator
6 Button
Membrane
Keypad
Run Key
Function keys (6) Description:
RUN: RUN Inverter in Local Mode
STOP / RESET: STOP Inverter, RESET alarms and faults
▲:Parameters navigation Up, Increase parameters or reference value
▼:Parameters navigation Down, decrease parameters or reference value
MODE: Switches between available displays
</ENT: "<" Left Shift: Used to change parameters or values,
ENTER: display the preset value of parameters and to
s
Caution：When the electrolytic capacitor is stored when no power input, its characteristics are liable to
deteriorate if the ambient temperature is too high. Therefore, do not store the inverter for a long time without
power input. If the inverter is stored for a long time, in order to make the inverter operate normally, capacitor
activation is required. For details, please refer to Chapter 3.2.4 of the manual.
L510s OUT of the Box Startup – Overview
This document is intended as a quick start guide to get familiarity with keypad
navigation, changing parameters, and setting the L510s drive up for external
start/stop and external potentiometer signal. Please note this document is not
a substitute for the L510s User Manual and it is important that you reference
the L510s user manual before proceeding.
MODEL: L510-201-SH3
INPUT: AC 3 Phase 200-240V (+10%, -15%) 50/60Hz 11A
OUTPUT: AC 3 Phase 0 – 240V 0-650Hz 4.2A
IP20
L1(L) L2 L3(N)
INPUT POWER
Appropriate Input
Power
3Ø Input
3Ø Induction Motor
LED
Display
Reverse Direction
Status Indicator
Frequency
Potentiometer
Stop Key
Remove protective covers to access
the power terminal blocks. (Refer to
Secure the Inverter in
a suitable location the L510s User Manual for detailed
instructions.)
T1 T2 T3
MOTOR
To reverse direction
of motor rotation
swap any two leads
L510s Control Settings (Factory Default)
RUN Control: External Run/Stop control
STOP Control: Keypad (STOP/RESET key)
Press External Run/Stop to START or STOP the drive.
(The Stop key of keypad also can STOP the drive)
See step 5. to change to RUN/STOP to external switch/contact.
See step 6. to change to external potentiometer control.
!
DANGER
Do not apply power until all
connections are correct
and secure, and all
protective covers are in
place.
Analog Signal In
Flashing
Changing Speed Reference
l Analo
ce.
