Olympus Lock DCN Series Manual

DCN, DCR, B7 Series Cam Locks - Standard Function

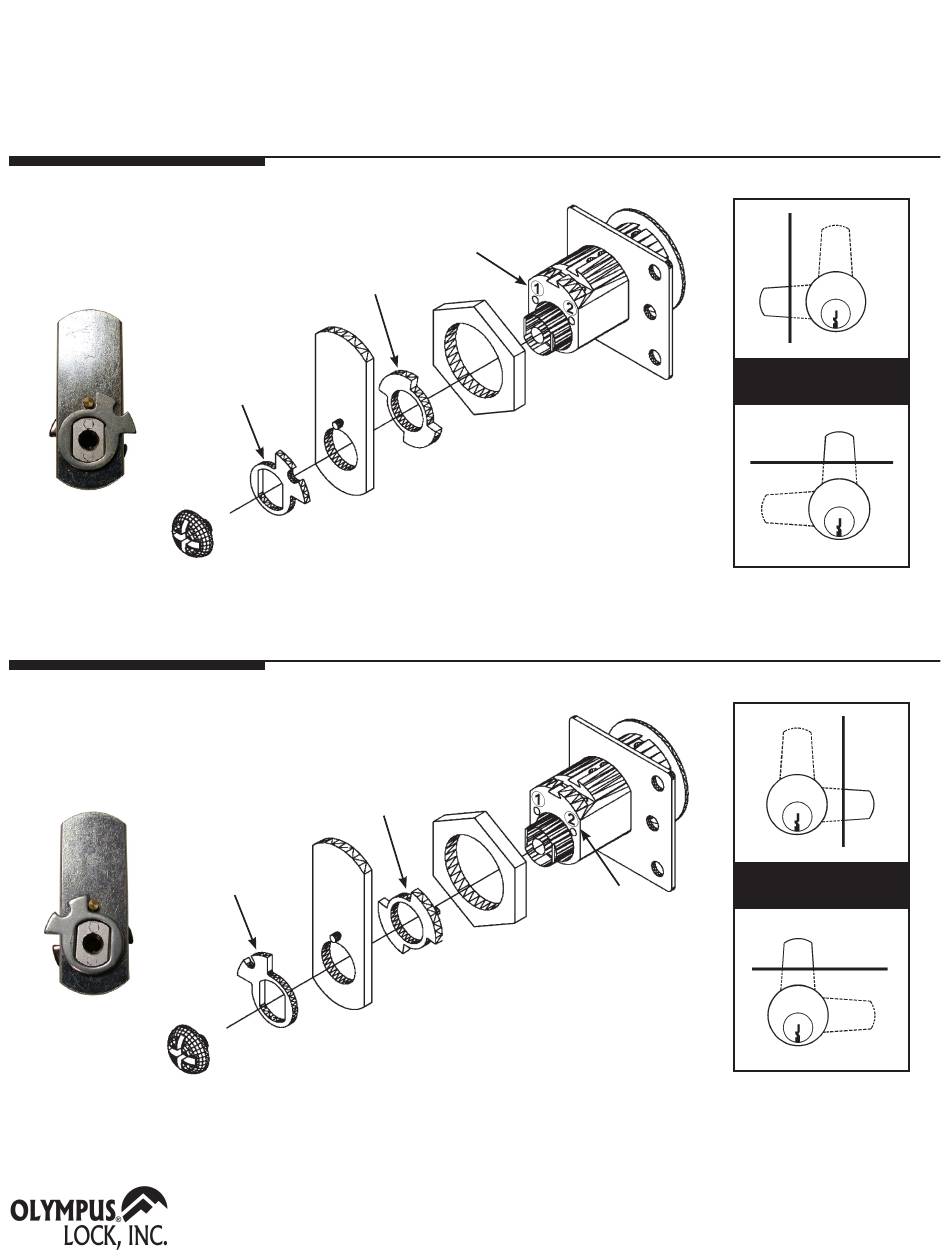

CAM ASSEMBLY for key removable in locked or unlocked position (standard function). All below
configurations can be used with straight cam or offset cam (in either the inbent or outbent positions).
Function:
right-hand door,
vertical drawer
Rear view
Function:
left-hand door,
vertical drawer
Rear view
18424 Highway 99, Lynnwood, WA 98037
206-362-3290 | 800-525-0954 | Fax 206-362-3569
www.olympus-lock.com
Reversible
cam stop
Outer cam
driver
Cam installation:
Place pin of reversible cam stop in hole #1.
Place cam as pictured above. Assemble outer
cam driver so that the pin from the cam is to
left of the "ears. " Screw in cam screw until tight.
Reversible
cam stop
Outer cam
driver
Hole
position
Cam installation:
Place pin of reversible cam stop in
hole #2. Place cam as pictured above.
Assemble outer cam driver so that the
pin from the cam is to right of the "ears. "
Screw in cam screw until tight.
DOOR
Key removable
at 9:00 or 12:00
DRAWER
DOOR
Key removable
at 12:00 or 3:00
Hole
position
DRAWER
