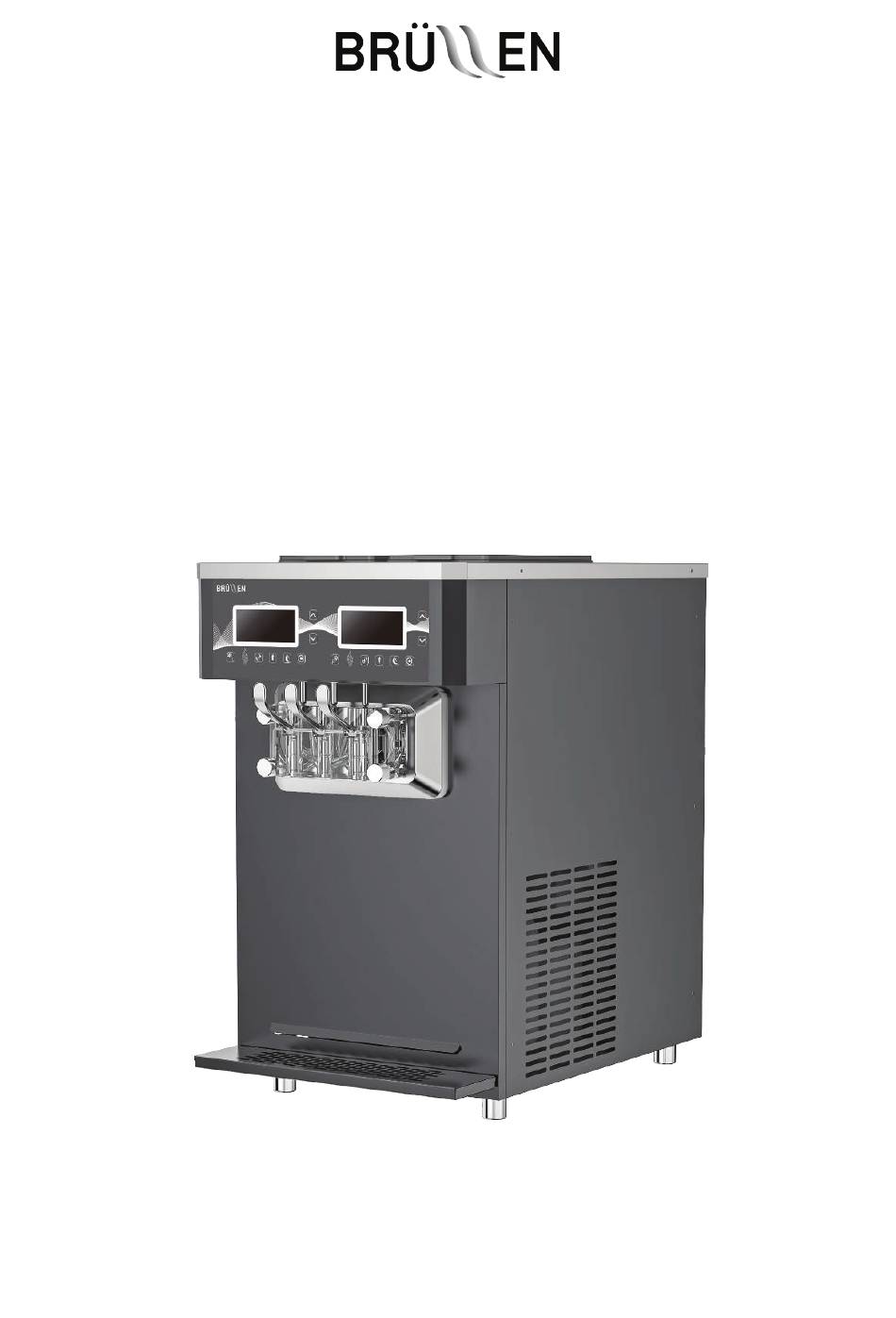

- Page 1 Brüllen i26 Pro Twin System User Manual (International) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
-
Page 2: Table Of Contents
Priming The Unit Daily and After Cleaning ................... 31 How To Operate Pasteurization ......................32 Fault Alarms ............................33 Preventive Maintenance ........................35 Brullen Warranty Terms and Conditions ....................36 Video Training – Get Watching! ......................39 (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... -
Page 3: Operational Environment
Please ensure its working conditions are in the range of 5-38℃, if not the machine will struggle to cool efficiently, and damage may occur. All electrical work and repairs must be completed by a Brullen certified engineer. (Int) +61 2 8599 7998 (Australia) 02 8599 7998... - Page 4 It is the machine owner and/or persons responsible for the equipment to ensure that any maintenance and repairs are only carried out by a Brullen Engineer or a qualified skilled engineer. Failure to do so may void warranty.
-
Page 5: Ventilation
• A minimum of 30cm is required on all sides for proper ventilation. • The rear of the machine must be completely clear of any obstructions for proper airflow. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... -
Page 6: Installation
Power/Earthing Unit • Be sure to use a Brullen approved electrician to install earth wire. • Must be installed with an earth wire to avoid possible electric shock or injury in the event of malfunction or leakage. -
Page 7: Staff And Operators' Safety And Hygiene Standards
Electric Shock Danger: • Ensure that staff and all operators are aware that failure to abide by safety rules whilst carrying out the operations described may result in an electric shock. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... -
Page 8: Transportation And Storage
15◦C and no more than 40◦C. Relative humidity should be no more than 65%. • The power from the main power source should be disconnected to prevent damage. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... -
Page 9: For Long Term Storage
A full tune up kit must be installed before use. Your local Brullen Distributor can perform this storage service for you. Wrap detachable parts of the machine such as beater, scrapper blades, draw valves and dispenser head door, and place them in a protected dry place. -
Page 10: Menu Operation And Function
The hardness scale is 1 – 9. 1 being the softest, and 9 being the hardest. Must be decreased in increments of 1. Stop Stops the machine. This is also used to change modes. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... -
Page 11: Lcd Symbol Indicators
Pasteurization Mode When you press the pasteurization button the pasteurization mode will be turned on. The machine will automatically put itself into overnight mode once pasteurisatio has been completed. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... -
Page 12: Names Of Parts And Assembly Drawing
Names of Parts and Assembly Drawing (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... -
Page 13: Machine Frame
FRONT PANEL UPPER SILVER BRULL125 FRONT PANEL LOWER SILVER BRULL126 RIGHT PANEL BLACK BRULL127 LEFT PANEL BLACK BRULL130 MOTOR AND GEARBOX BRULL131 MACHINE FRAME BRULL132 CONDENSER AND FAN BRULL133 POWERBOARD BRULL134 CYLINDER (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... - Page 14 BRULL135 INTERNAL DRIP TRAY BRULL136 EXPANSION VALVE BRULL137 AGITATOR NEW TYPE BRULL138 ACTIVATION SWITCH BRULL139 MIX LEVEL SENSOR BRULL140 STAINLESS HOPPER BRULL230 COMPRESSOR PROTECTOR SWITCH (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
-
Page 15: Freezer Door Assembly And Diagram
Freezer Door Assembly and Diagram PART NUMBER PART DESCRIPTION BRULL033 FREEZER DOOR PIN BRULL034 FREEZER DOOR SCREW BRULL35 STAR CAP BRULL37 DISPENCING HANDLE BRULL38 SIDE DRAW VALVE BRULL39 MIDDLE DRAW VALVE (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... -
Page 16: Beater Assembly And Installation
Beater shaft must be lubricated with generous amount of lubricant before boot seal (BRULL093) is installed. Ensure that no lubricant is ever placed on the back of the beater where it is connected to the drive shaft. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... -
Page 17: Part Description
PART NUMBER PART DESCRIPTION BRULL043 BEATER SHOULDER CLIPS LONG BRULL044 BEATER PLASTIC BEARING BRULL46 BLADES FOR BEATER BRULL093 BEATER BOOT SEAL BRULL211 STAINLESS STEEL BEATER BRULL212 BEATER HORN (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... -
Page 18: Air Mix Pump Assembly
Air Mix Pump Assembly (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... - Page 19 AIR PUMP COVER O-RING BRULL057 PUMP COVER O-RING BRULL058 AIR PUMP COVER BRULL059 AIR PUMP DRIVE GEAR BRULL060 AIR PUMP DRIVEN GEAR BRULL061 AIR PUMP BODY BRULL062 AIR PUMP BODY O-RING BRULL063 (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
-
Page 20: Air Pump Lubrication
Air Pump Lubrication All rubber O-rings must be lubricated with a small amount of lubrication. Enough to cover the circumference of the O-ring. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... -
Page 21: Gravity Feed System Operation
Then prime the machine and draw 500ml of product from the freezer door, then pour it back into the hopper. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... - Page 22 Ensure tube is pushed all the way in. If not installed correctly will cause barrel freeze and no product will be dispensed. If using products such as Acai, the gravity feed tube is NOT to be installed. FEED TUBE HOLE CLOSED HIGH OVERRUN MIDDLE OVERRUN LOW OVERRUN (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
-
Page 23: Air Mix Pump Feed System Operation And Steps
Step 2. Pour the product into the mix hopper before installing the pump feed tube. Step 3. Prime the machine and draw 500ml of product from the freezer door, then pour it back into the hopper. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... - Page 24 Step 5. Before installing the pump feed tube, ensure that the hopper has stopped bubbling before installing the feed tube. Install the pump feed tube and connect with pump body (ensure sealing O- ring 57 is between feed tube and pump body). (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 25 Step 6. Choose desired overrun. Step 6. Press production mode and then the pump button. After 8 – 10 minutes, the ready light will come on and product is ready. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 26 Ready (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
-
Page 27: Cleaning And Maintenance
Step 1. Remove the hopper covers, the agitator and gravity feed tube. If air pump, unscrew air pump tube and remove from machine. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... - Page 28 Step 3. Add lukewarm water to the mix hopper and press the wash button for two minutes. This will flush the product out. Step 4. Add lukewarm water in again and use Brullen certified chemicals to clean everywhere inside of the mix hopper with a non-scratch pad and then dispense the wastewater out.
- Page 29 Step 5. Clean all parts with Brullen approved chemicals one by one (do not place any parts inside a dishwasher). Example of parts to be cleaned below. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
-
Page 30: Cleaning Schedule
Step 6. Once the unit has been cleaned and reassembled fill each hopper with lukewarm water. Add 1 Brullen approved sanitized tablet per hopper. Allow the tablet to full dissolve then place the machine into wash mode for 1 minute. -
Page 31: Priming The Unit Daily And After Cleaning
After overnight mode and before production mode. You must press stop and dispense 500ml of product. DO NOT pour dispensed product back into mix hopper, product must be discarded. Put the machine into production mode. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... -
Page 32: How To Operate Pasteurization
Hopper temperature Cylinder temperature Once pasteurisation has finished the machine will automatically go into overnight mode and cool the hopper and cylinder to programmed temperatures. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au... -
Page 33: Fault Alarms
• Check hardness is not set to high. If this does not resolve the issue, please contact Brullen or your local Brullen distributor. • Gravity Feed – No mix in the hopper Cylinder is frozen, too hard. Can be... - Page 34 If this does not resolve the issue, please contact Brullen or your local Brullen distributor Temperature sensor warning Please contact Brullen or your local Brullen distributor. Compressor overload protector Button will pop out when compressor has overloaded. Press the button to reset the compressor.
-
Page 35: Preventive Maintenance
Check the condensers for accumulation of dirt, sand, lint or any foreign objects. Dirty condensers will reduce the efficiency and capacity of the machine. Condensers should be cleaned on a 6–12-month basis by a Brullen certified technician. Never use screwdrivers or other metal probes to clean between the fins. -
Page 36: Brullen Warranty Terms And Conditions
2. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure. Brullen is given the first opportunity to repair the machine if it is deemed a major fault. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. - Page 37 (c) neglect, lime scale problems, and cleaning related issues. (d) Costs related to the Goods or spare parts being sent to or from Brullen to place of business or any of Brullen accredited technicians’ places of business.
- Page 38 11. All Warranty services, (other than ongoing system cleaning cycles) are to be carried out by Brullen or a Brullen Accredited Technician. 12. To the maximum extent permitted by law, the decision of Brullen in all Warranty matters will be final.
-
Page 39: Video Training - Get Watching
Most of our customers have the videos open on their phone when they are initially learning about the machine for extra peace of mind. To learn… Assembly Cleaning Menu Operation Priming Follow this link: https://brullen.com.au/training-videos/ (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
