Summary of Contents for ROLEC Payter EVAD5500

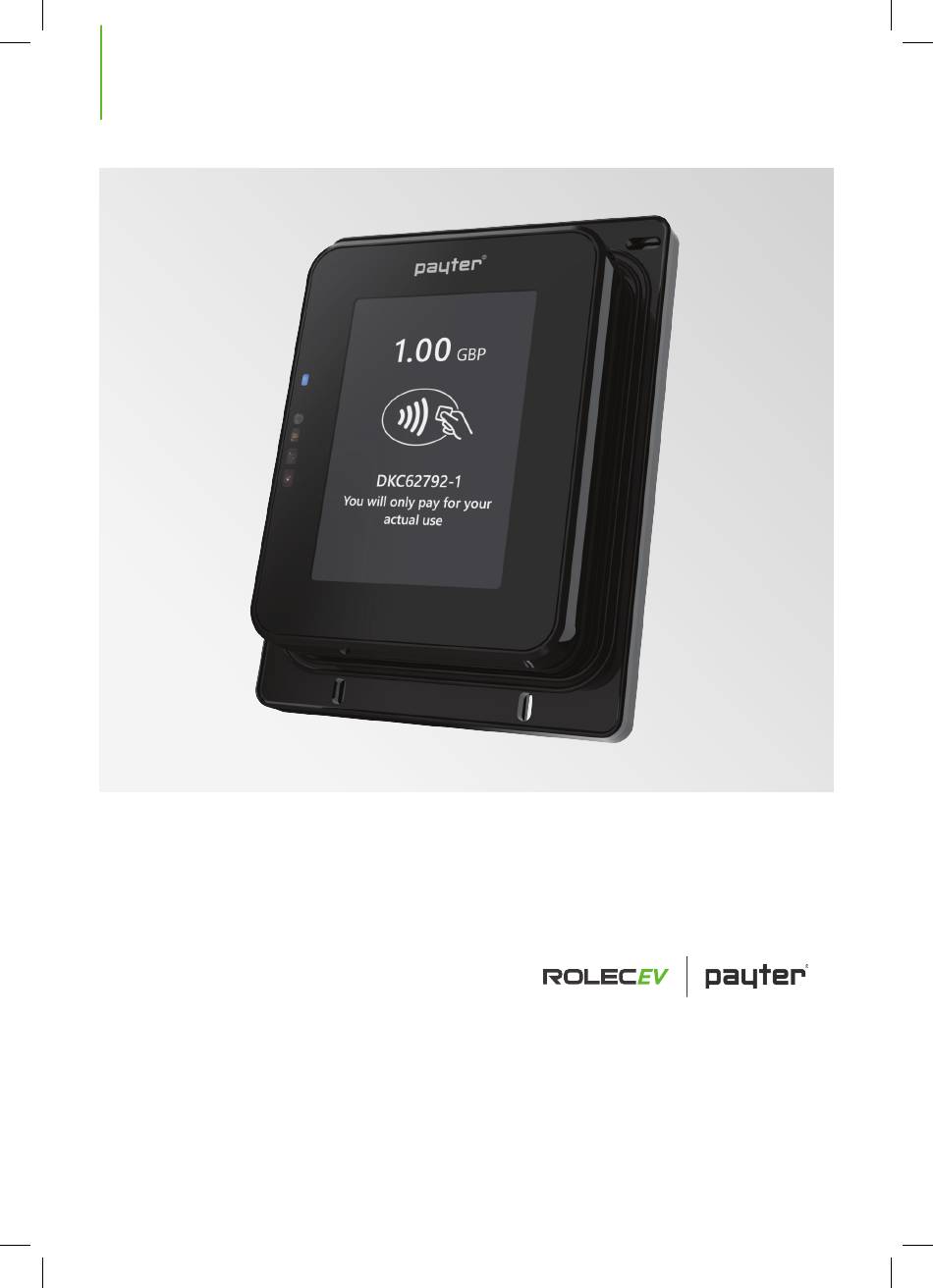

- Page 1 SETUP GUIDE CONTACTLESS PAYMENT DEVICE Payment solution...
-
Page 2: Product Support
Date Published: November 2024 Rolec Services Ltd are the publishers of this document and own the rights to use the text, images and all technical content contained within. Content supplied by third parties / partner organisations remains the property of that organisation and is used by agreement with the supplier. -
Page 3: Table Of Contents
Product Support IMPORTANT: This product is designed to be used with a charge point management system (CPMS) sometimes referred to as a ‘Back Office’. Administration tasks to set this up with the CPMS can sometimes take several days to be processed and ideally this should be done before the charge point is installed. -
Page 4: Safety
About this Manual This manual provides guidance on the setup of the Payter Contactless Payment Terminal installed in a range of Rolec AC and DC charge points, and in the Tap and Charge Remote Payment Terminal. At the point of purchase, customers should have been directed to perform the required administrative tasks If this has not been done, this guidance document should be followed. -
Page 5: Device Overview
Device Overview Device Overview This payment terminal is designed to take payments for up to 99 individual sockets or tethered cables. 99 connections are the absolute maximum from one terminal but for practicality and customer ease of use, a much lower number is advised. Using a Charge Point Management System to connect ‘virtually’... -
Page 6: Payment Device Configuration
Owners can offer contactless payment to EV drivers, directly through the charge point or remote terminal. The payment terminal that comes with your Rolec charger/remote terminal needs to be registered with Payter and connected to your Monta Team. After this, you can connect multiple charge points to the same Payter device and receive the charge payments in the Team’s Wallet. - Page 7 Payment Device Configuration Page 1 – Payter Account The first question you are asked is “Do you have a MyPayter account?” 1. Select No unless you are adding additional Payter terminals to your existing MyPayter account; in that case, select Yes. 2.
- Page 8 4. Click on the Next button. Page 3 – Terminal 5. Enter the serial numbers Rolec has provided. You can enter an easy reference of your choice next to the serial number. IMPORTANT: if your order consists of chargepoints which will be under multiple billing accounts, the serial numbers entered here must match up when installing the chargepoints on site.
- Page 9 Payment Device Configuration Operator mode Select “Cloud” Distributor ROLEC_SERVICES_LIMITED Machine manufacturer ROLEC_SERVICES_LIMITED Enter your Company Name. Domain This is how you can find your page in MyPayter CPS-CPSM System Provider Monta Select “Yes”, if internet access is via LAN cable. The terminals will be connected via a LAN cable Select “No”, if you are using a SIM card.
-
Page 10: Onboard Your Chargepoints To Create A Team In Monta
2. Onboard your Charge Points to Create a Team in Monta Once you know your chargepoint serial numbers follow the below steps: 1. Onboard Your Chargers: Visit Rolec Onboarding to choose your Monta plan to get started: https://onboarding.rolecserv.com/ 2. -
Page 11: Configuration For Users Of Other Back Offices
On the payment device screen when power is applied. On a label on the back of the payment device. Can be supplied by Rolec or may have already been supplied as part of the order correspondence. 2. Register and Activate: Contact your chosen back office provider to register and activate your devices using the serial numbers. - Page 12 Brand names, logos and trademarks used herein remain the property of their respective owners. This listing of any firm or their logos is not intended to imply any endorsement or direct affiliation with Rolec Services Ltd. and is purely to demonstrate branding opportunities. © 2024 by Rolec Services. All rights reserved.
