Summary of Contents for Matrix Appliances MXG030SS

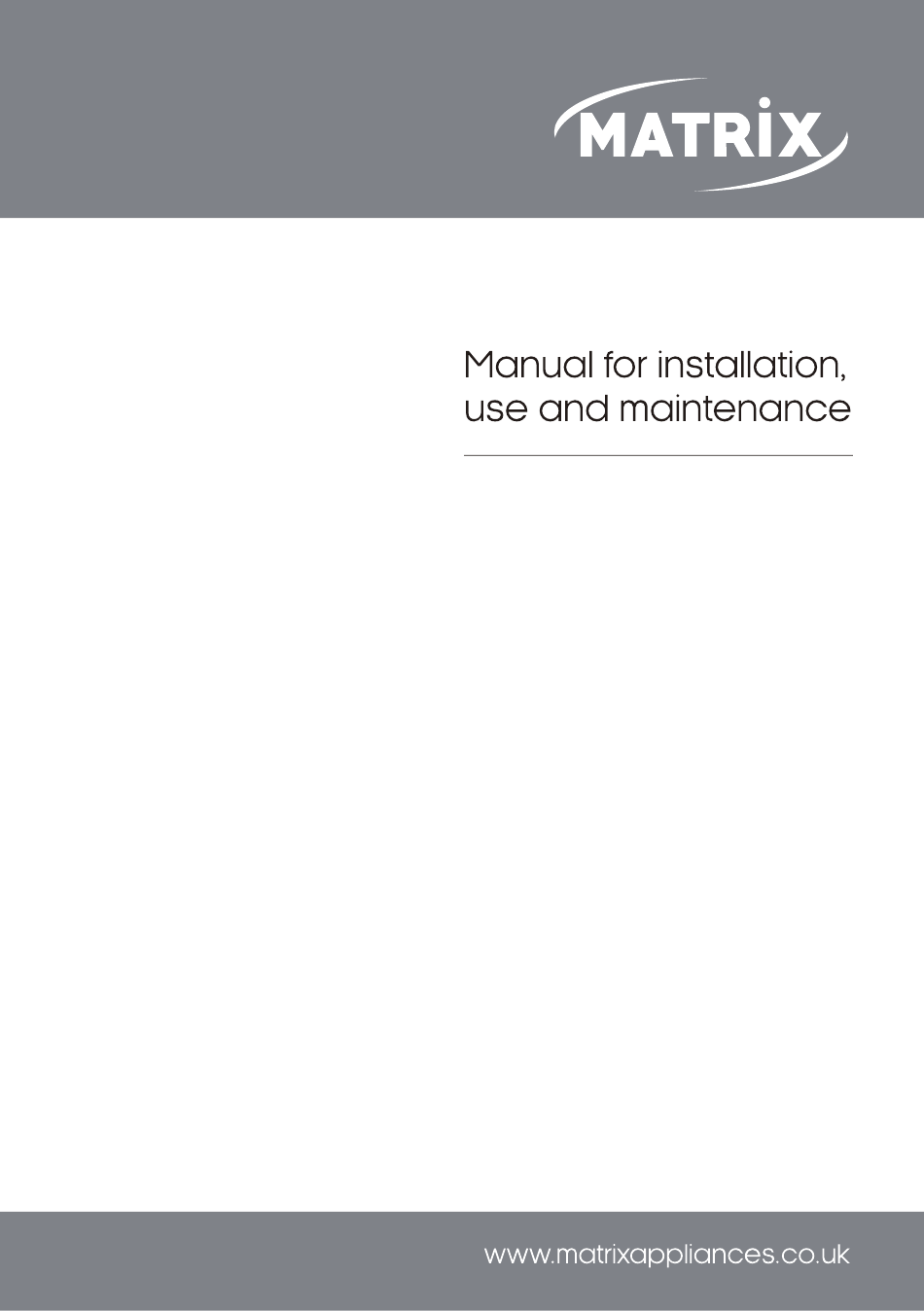

- Page 1 MXG030SS MXG060SS MXG070SS Gas hobs...
-
Page 2: Table Of Contents
Contents: Important information Important safety warnings Using your hob Igniting the hob Selecting the right burner Care and maintenance Mains electricity connection Installation Ventilation Natural gas to LPG conversion Troubleshooting... -
Page 3: Appliance Information
Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model Serial Number EU Declarations of Conformity: This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Gas safety, Electrical... - Page 4 • • Ensure that the appliance is correctly adjusted for the type of gas available before installation. • The use of a gas appliance produces heat and humidity in the room in which it is installed. Ensure that the room is well ventilated, either by the use of natural ventilation outlets (e.g.
- Page 5 8. This appliance is designed for domestic cooking only. Commercial use will invalidate the warranty. 9. Do not cover the hob or place combustible materials on or near the surface even when the hob is not in use. 10. Do not fill deep fat frying containers more than one third full of oil and NEVER leave unattended.
-
Page 6: Using Your Hob
1750W 1750W 3000W Semi-rapid Rapid gas gas burner Auxiliary burner 1750W gas burner 3000W 1000W MXG030SS MXG060SS Triple flame gas burner 3500W Rapid gas Semi-rapid burner gas burner 3000W 1750W Semi-rapid Auxiliary gas burner gas burner 1750W... -
Page 7: Igniting The Hob
WARNING! For your own safety, make sure that these instructions on installation, use and maintenance are followed. Igniting the hob burners 1. To light the hob, push down the appropriate knob and turn anti- clockwise to the large flame symbol (Fig.1). 2. -
Page 8: Care And Maintenance
Triple Flame Rapid Semi-rapid Auxiliary Burners 3500W 3000W 1750W 1000W Pans (cm) 24-26 20-22 16-18 10-14 NOTE: Please do not use pots or pans that overlap the boundaries of the hob. Care and maintenance Cast iron or enamelled parts In order to clean the hotplate, burner caps and pan supports on your hob, please use a soft cloth and hot, soapy water. -
Page 9: Mains Electricity Connection
Glass A non-abrasive cleaner should be used on glass surfaces. Any abrasive cleaner (including Cif) will scratch the surface and could simply using a dilute solution of water and mild detergent and drying to a shine with a clean cloth. Caution: burners and any electrical heating element and isolate the appliance from the power supply do not touch the appliance surface... - Page 10 BLUE = NEUTRAL, BROWN = LIVE, GREEN & YELLOW = EARTH As the colours of the wires in the mains lead for the appliance may not correspond with the coloured markings identifying the terminals connecting to the fused spur, proceed as follows: •...
-
Page 11: Installation
Installation Gas Supply Requirements IMPORTANT: THIS APPLIANCE SHOULD BE FITTED BY A GAS SAFE REGISTERED FITTER OR OTHER SUITABLY QUALIFIED PERSON. • This installation must comply with the Gas Safety (installation and use) Regulations 1984. • This appliance is category II2H3+ and is designed for use in the UK and Ireland. -
Page 12: Installation Location
• appliances to non Gas Safe registered personnel. Unit: mm Rear wall should be a flame retardant material MXG030SS 283 498 60min 150min 650min MXG060SS MXG070SS 557 477 60min 150min 650min Front edge of worktop Fig. 4 Fig. - Page 13 CAUTION: Accessible parts may be hot when the grill is in use. Young children should be kept away. CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating. When fitting a gas hob above a drawer or a standard housing unit, suitable precautions must be taken to prevent contact with the hotplate surface as it can become very hot during operation.
-
Page 14: Ventilation
3. Place the hob in the installation opening and push it down so that the hob is resting firmly on the worktop. 4. Secure the hob in position using the fixing brackets supplied. Screw one end of the bracket into the pre-drilled holes in the underside of the hob. -
Page 15: Natural Gas To Lpg Conversion
there are any other fuel burning appliances in the same room, consult the relevant British Standard (BS5440) or GAS SAFE document. Natural gas to LPG conversion This conversion must only be carried out by a competent person (i.e. a Gas Safe registered fitter). Instructions to fit replacement injectors: 1. - Page 16 Injector replacement table Burners Normal Normal Injector Nominal pressure rate diameter heat input (kW) Description mbar mm (toler- min. ance ±0.01) Auxiliary Butane 28-30 0.49 Propane 0.49 Natural 0.72 Semi-rapid Butane 28-30 1.75 0.67 Propane 1.75 0.67 Natural 1.75 0.97 Rapid Butane 28-30...
-
Page 17: Troubleshooting
Troubleshooting In the event of an emergency, you should: • • Disconnect the mains plug • Call the service centre • Some minor faults can be fixed by referring to the instructions given in the table below. Before calling the customer support centre or the service centre check the points that are presented in the table below Problem Solution... - Page 18 In the event of your appliance requiring technical assistance and/or spare parts, please contact CDA Customer Care. For more information about the warranty of your product, including terms and conditions, please visit www.cda.co.uk/warranty CDA Customer Care Phone: 01949 862 012 Email: customer.care@cda.co.uk In this case it is necessary to state all the appliance data on the rating...
-
Page 19: Energy Efficiency Information
The packaging materials of this appliances is recyclable, please make good use of waste materials. Energy Efficiency Information Attribute Symbol Value Units i t n c i f MXG030SS MXG060SS MXG070SS Annual Energy Consumption Built in Built in Built in Aux:NA / Aux:NA / SR:56.0 / SR:56.0 / SR:55.6 /... - Page 20 For service or queries relating to your product please contact: The Customer Care Department on 01949 862 012 or email customer.care@cda. co.uk For more information please contact: The Sales Department on 01949 862 010 or email sales@cda.co.uk Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY 01949 862 012 01949 862 003 customer.care@cda.co.uk...
