RS-MX81DSP USER MANUAL

Maximum output power: 4x51W

Rated output power:4x16W

8-channel DSP sound processor

Convenient app for iOS / Android

48-band equalizer

8-way crossover

Channel-by-channel time delays

RCA line outputs (4 pairs)

AUX input (3.5mm jack)

Bluetooth 5.1

USB connector

Playback FLAC / APE / WAV / MP3

Steering wheel button control

(D-SWC)

Digital radio tuner

Memory for 18 FM radio stations

RGB backlight (3 zones)

Table of Contents

Need help?

Do you have a question about the RS-MX81DSP and is the answer not in the manual?

Questions and answers

Summary of Contents for Reiss RS-MX81DSP

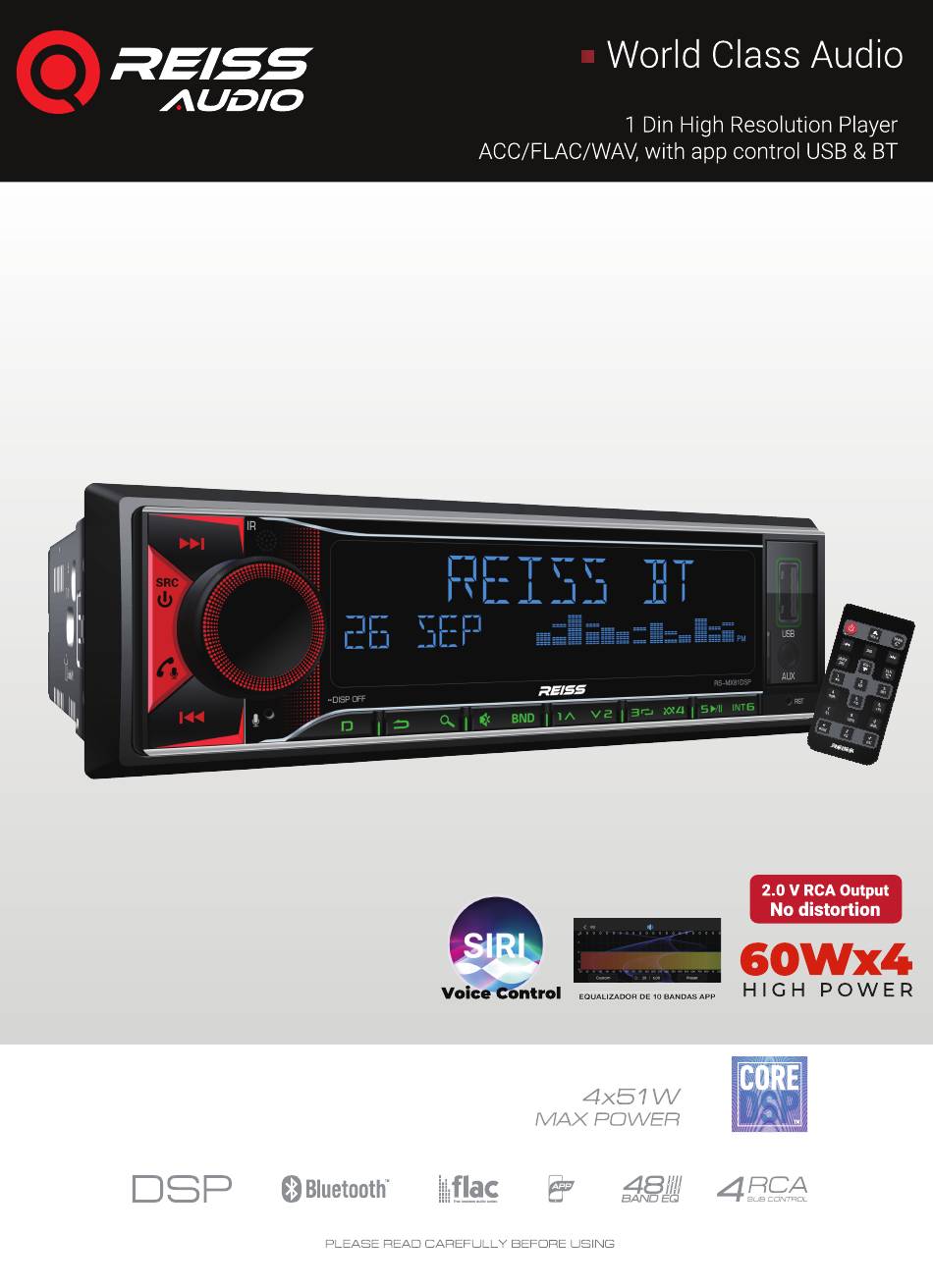

Page 1 RS-MX81DSP USER MANUAL Maximum output power: 4x51W Bluetooth 5.1 Rated output power:4x16W USB connector 8-channel DSP sound processor Playback FLAC / APE / WAV / MP3 Convenient app for iOS / Android Steering wheel button control 48-band equalizer (D-SWC) 8-way crossover...
Page 2 Copyrights Copyrights " ". are registered trademarks. All rights reserved. This document, in whole or in part, may not be reproduced or copied without the prior written permission of the manufacturer. All trademarks, logos and product names used on packaging and in this document are logos or registered trademarks of their respective companies.
Page 3: Table Of Contents
Catalogue Precautions..................3 Completion and installation..............4 Connection..................5 Appearance, controls.................6 Overall dimensions................7 Remote Control..................7 Basic operations................9 Menu: Sound settings.................9 Saving DSP settings (presets) ............13 Display settings................13 Tuner settings...................13 Bluetooth settings................14 System Settings................14 Sources: RadIo................15 USB....................16 Bluetooth..................17 AUX.
Page 4: Precautions
Preventive Measure The user manual contains important safety recommendations and information on the proper use of the device. Please follow all instructions in this manual carefully. 1. When installing the unit, avoid places with high temperature, or places where there's a lot of dust. 2.
Page 5: Complete Installation
Complete installation Open the package and make sure there are some inside: 1. USB receiver - 1pc. 2. Remote control - 1pc. 3. Keys for receiver removal - 2 pcs. . LO-connector - 1 pc. 5. Instructions 6. Sticker Installing the device Connect necessary wires and connectors 1.
Page 6: Connection
Power Connection 1. Make sure the on-board voltage of your vehicle is +12 volts. 2. Remove the fuse from the unit before connecting the wires. 3. Connect the yellow (A4) lead to the +12 volt DC power supply circuit. 4. Connect the red wire (A7) to the ACC terminal of the ignition switch. 5.
Page 7: Appearance, Controls
Management Organization Turning the device on / Turning it off / Selecting a source 2. IR receiver 3. LCD display 4. USB-removal Next track / Fast forward / Radio tuning Adjusting the volume / Switching settings / Confirming selection Previous track / Rewind / Radio tuning Refund 9.
Page 8: External Dimensions
External Dimensions Remote Control Remove the battery protection (CR-2O25). The remote control unit is supplied with battery protection. The remote control will not operate until the protection is removed. Replacing the battery: When the lithium battery has lost capacity, replace it as shown. 1.
Page 9 Remote Control Turning the device on / off 2.Adjusting the volume 3.Switching the radio bands / Receiving a call Previous track / Rewind / Radio tuning 5.Selecting a source Next track / Fast forward / Radio tuning 7.Mute End call / Clock 9.Preset Button 1 / Pause 10.Preset Button 2 / Track scan mode...
Page 10: Basic Operations
Basic Operation On/Off Press any button to turn on the device. Press and hold the (1) / SRC button to turn off. Modulation Turn the volume knob to set the desired level. Select source Press (1) / SRC to switch between playback sources: Radio --> USB --> AUX in -->...
Page 11 EQ Setting(Equalizer) Subwoofer Sub-W output - Turns the subwoofer on/off. Sub-W level - adjusts the volume level of the subwoofer. Sub-W stereo - the subwoofer’s 7/8 RCA outputs (Mono/Stereo). Fader Adjusts the relative volume between 1/2 and 3/4 channels. Balance Adjusts the relative volume between the left and right channels.
Page 12: X-Over (Crossover)
X-Over (Crossover) 3/4-LPF FRQ - cutting frequency: THROUGH (off) / 20Hz - 12.5kHzL 3/4-LPF TYPE - filter type. 3/4-LPF SLOPE - decay slope: 6 - 48 dB per. 3/4 GAIN - the 3/4 level of the channel, ranging from -8 dB to 0 dB. 3/4 PHASE - electrical phase changeover: 0°...
Page 13 140 to the left tweeter channel delay. Make the necessary calculations for all speakers, then make the settings in the REISS Audio app or in the receiver menu. Delay - the value for each channel. Select the desired channel and set the desired signal delay value.
Page 14: Saving Dsp Settings (Presets)
Save DSP Settings (preset) You can store 6 independent settings (presets) and switch between them quickly. IMPORTANT! Settings are saved when the battery power is disconnected. 1. adjust the equalizer, delay, and crossover settings. 2 to save the current settings to memory location "1", press and hold the "1"...
Page 15: Bluetooth Settings
RDS set Enables the text messaging system. TA set Traffic message. AF set Switch to more stable frequencies.* EON set Auto switching to channels with traffic messages.* Radio text Display text information. PI regional Displays the station name. PTY search Search by program type.
Page 16: Sources: Radio
System Beep Enable / disable button sound. AUX IN Enable / disable the AUX source. Programming the standard steering wheel buttons. See page 18 for a detailed description of the programming procedure. Car ACC (ACC position) - ignition switch type Yes - set for a car with ACC position, the red power lead of the unit is connected to the ACC position of the ignition switch.
Page 17: Manual Station Search
Radio Automatically search and store stations Press and hold the SEARCH button (8) for more than 2 seconds. The unit will quickly search and automatically store 18 FM radio stations with a strong signal. Manual station search Press the (7) or (5) to change the frequency step by step.
Page 18: Bluetooth
Pairing with a phone 1. Turn on Bluetooth on your mobile device. 2. Find "RS-MX81DSP" in the list of available BT devices and connect to it. PlN code for authorization: 1234. WARNING! It is not necessary to perform pairing with BLE channel, it may lead to unstable operation of the device! 3.
Page 19: Android And Ios App
Please check for the new software version at Smartphone applications Most of the device settings are available in the REISS Audio mobile app for Android or iOS. 1. Install the "REISS Audio" application from Google Play or App Store.
Page 20 Steering wheel button programming The WHEEL GND wire of the OEM control panel should be connected to the black GND wire (A8), and the WHEEL KEY A and WHEEL KEY B signal wires should be connected to wires A1 (brown/black) and A2 (brown), respectively. Operating voltage range with connected remote control buttons from 0.3 to 3.3 V.
Page 21: S P E C I F I C A T I O N S
Technical Specifications General Working power supply voltage: 12 V (9.6 TO 15 V allowed) Fuse: 15 A Maximum power output: 4 x 51 W (4 Ω) Rated output power: 4 x 16 W (4 Ω) Acoustic impedance: 4 - 8 Ω Frequency range: 20 Hz - 20kHz Display angle:...
Page 22: Warranty Card
y o u r c a r h i f i s p e c i a l i s t...
