Fortress Power Guardian Quick Installation Manual

Iot gateway & app
Hide thumbs Also See for Guardian:
Table of Contents

Advertisement

Quick Links

Download this manual

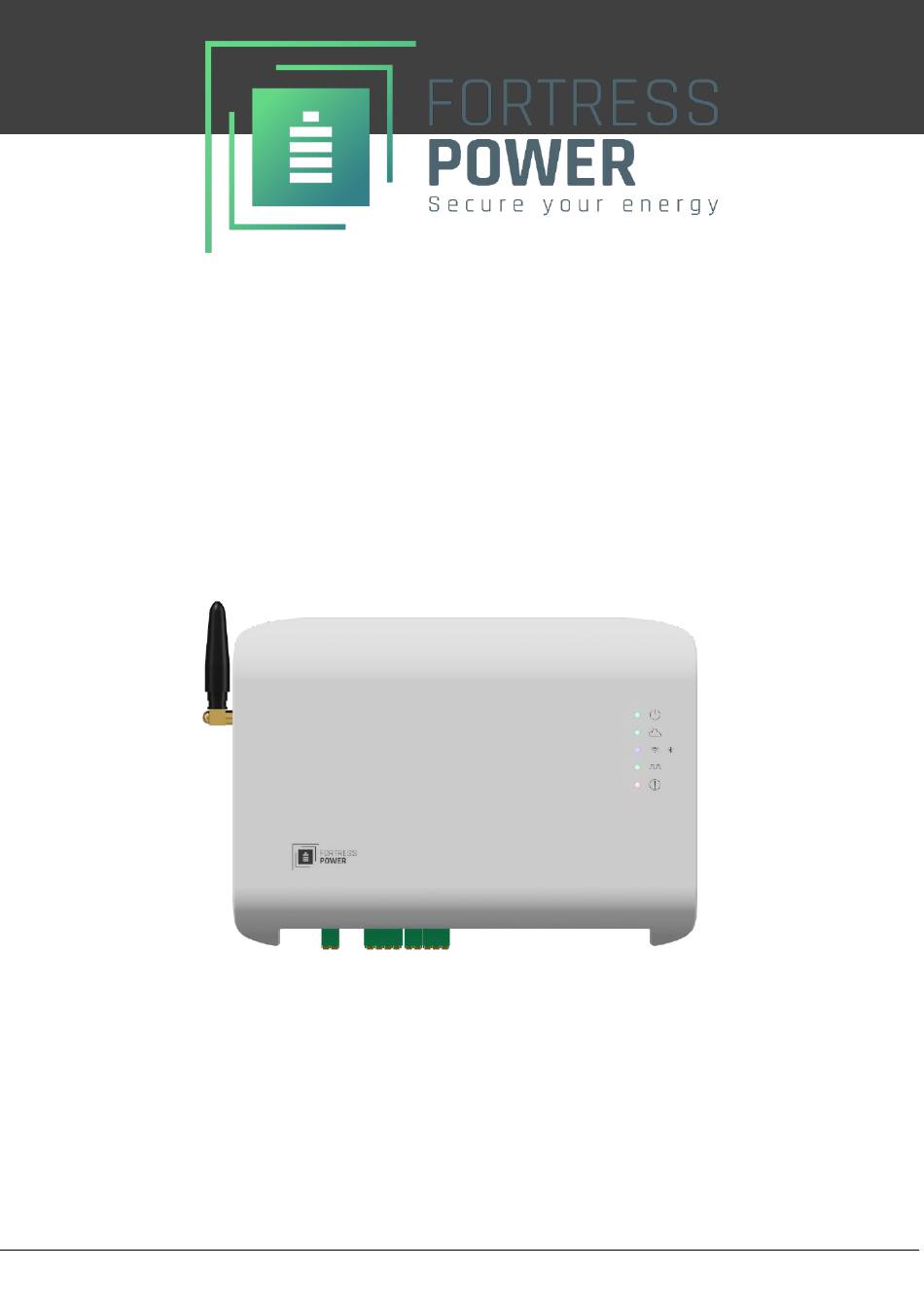

Guardian
IOT GATEWAY & APP
QUICK INSTALLATION MANUAL
: Verify the system configuration before installing.
Important
A proper system design is required for warranty purposes.
Improper system configuration will void the warranty.
Information subject to change without notice.
2024 Fortress Power LLC. All rights reserved.
GM-V2
Fortress Power LLC
GM-V2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Guardian and is the answer not in the manual?

Questions and answers

Related Manuals for Fortress Power Guardian

Summary of Contents for Fortress Power Guardian

  • Page 1 : Verify the system configuration before installing. Important A proper system design is required for warranty purposes. Improper system configuration will void the warranty. Information subject to change without notice. 2024 Fortress Power LLC. All rights reserved. GM-V2 Fortress Power LLC GM-V2...

  • Page 2: Table Of Contents

    5.4.3 DC power to the Guardian from batteries............. 12 5.4.4 AC power supply to the Guardian 120V AC wall outlet receptacle (Optional) .. 13 5.4.5 Wiring Internet Cable directly to the Guardian (Optional) ......13 VPP /ENERGY BROKER PROGRAMS............... 14 COMMISSIONING ..................

  • Page 3: Change Log

    1. C HANGE VERSION CHANGES GM-V2 Manual restructuring. Addition of images for descriptive steps. Commissioning step process when using with a VPP program Fortress Power LLC GM-V2...

  • Page 4: Introduction

    Additionally, if you are enrolling in a VPP program with your local utility the Guardian is able to work with your Fortress Power Envy inverter to meet compliance requirements. Check with your local utility and/or create a support ticket for further details.

  • Page 5: Unboxing

    3. UNBOXING PART DESCRIPTION Guardian Monitoring Hub Quick Installation Manual Wall Plug and Screw 2 each 4P*2 Terminal Plug 2p*2 Terminal Plug Guardian/Battery Communication Cable 120V AC to 24V DC Power Supply Din Rail 48V DC Power Supply Cable Guardian-Envy Cable...

  • Page 6: Specifications

    14" x 8" x 5" SHIPPING PACKAGE WEIGHT 3.6 lbs. HOUSING/ IP23 / MOUNTING SYSTEM Din Rail Mount STATUS DISPLAY LEDS From top to bottom: Power Cloud connection, Bluetooth or Wi-Fi connection, Serial communication with battery, Error signal Fortress Power LLC GM-V2...

  • Page 7: Dimensions And Port Definition

    AREA DESCRIPTION 48v Battery Connection port DI port Internet Ethernet Connection port Modbus LAN Port RS485 PORT/GUARDIAN-ENVY INV485 PORT CAN BUS Battery Connection Port Reserved Use, CAN port AC to DC power supply connection Reset Button SET Button USB port...

  • Page 8: Installation

    5. I NSTALLATION If using in conjunction with the Fortress Power Envy inverters, particularly for VPP/Energy Broker programs, please commission the inverter first by plugging in the dongle and update the inverter firmware. Then you may proceed with the next step that pertains to Guardian installation.

  • Page 9: Mounting The Guardian

    OUNTING THE UARDIAN The Guardian is Din Rail mountable. Mount the Guardian to a wall using the included Din Rail or by using the included Din Rail in the FlexTower or DuraRack. If the installation is outdoors, you must install the Guardian inside a watertight junction box.

  • Page 10: Wiring The Hub

    Note that for the eVault MAX battery you must ensure the dip switch on the last battery of the entire storage bank is in the "Off" position as the Guardian will act as the terminating resistance for communication. In addition, “In” and “Out” ports are bidirectional.
  • Page 11 Battery- Guardian Green communication cable. Battery -Inverter Comm Cable Included with Battery #6 x1 5.4.2.2 UARDIAN ONNECTION Connect the Gurdian battery-Guardian green cable to one of the common ports of the Splitter included with the eFlex MAX SPLITTER Fortress Power LLC GM-V2...

  • Page 12: Dc Power To The Guardian From Batteries

    5.4.3 DC POWER TO THE GUARDIAN FROM BATTERIES. If you plan to power the Guardian with battery power, please use the included DC power supply cable. Please be sure to double-check the polarity of the DC supply cable before plugging into the Guardian. Land on the other side to the corresponding battery terminals.

  • Page 13: Ac Power Supply To The Guardian 120V Ac Wall Outlet Receptacle (Optional)

    Ac wall plug for Grid tied or Virtual Power Plant (VPP)/Energy Broker Programs. Connect the AC plug to the Guardian and then connect to the wall plug. Guardian will turn on. 5.4.5 WIRING INTERNET CABLE DIRECTLY TO THE GUARDIAN (OPTIONAL) If you wish to hardwire your internet to the Guardian, use a traditional rj45 cable and connect one end to the Internet/WLAN port and connect the other end to your router.

  • Page 14: Vpp /Energy Broker Programs

    Energy Broker services only qualify for certain regions and programs such as WattSmart, LUMA, CT When setting up a Guardian with an Envy inverter, Please use the two row/four column plug to wire into the Guardian connection port. For reference, the cable pin-out is Orange to the Guardian's RS485 1A and Orange/White to the Guardian's RS485 1B.

  • Page 15: Commissioning

    7. C OMMISSIONING All the lights will come on when you first power on the Guardian. Wait for about 10 seconds. Begin registering/Sign in on the app via email, Google, or Apple. The Wi-Fi light ( ) will blink quickly (about 2 blinks every second). Make sure your Guardian is located close to your Wi-Fi router for a strong signal.
  • Page 16 Connect your phone to the Guardian hub over Bluetooth connection. Select the Guardian’s serial number which can also be found on the back of the device. Connect your Guardian hub to the internet over your home Wi-Fi (You can skip this part if using Ethernet cable connection):...
  • Page 17 Name your Fortress system and provide your address. Configure your Guardian Hub’s information in the app. It should populate automatically: Scan for batteries. Skip to step 6.2 when installing eFlex MAX. After submitting your battery information, you should now be able to see your newly created place. If...
  • Page 18 Fortress battery system. After submitting your battery information, you should now be able to see your newly created place. If you press on it, you will see a general overview of your battery system. Press any of the tabs highlighted in red above to get more Fortress Power LLC GM-V2...
  • Page 19 Fortress battery system. To check if the batteries have the latest firmware, go to the F IRMWARE SECTION Changing Guardian Settings In the “My Place” section click on the dashboard icon in the top left to view the companion app dashboard. Press on “profile” to update email and phone number information and on “change password”...

  • Page 20: Firmware

    Firmware Revision The initial firmware version of the Guardian is 0.1.0. The Guardian is new hardware, so be prepared to update Guardian firmware at each site visit. • Select the place where you want to update firmware, then select a firmware option from the icons •...
  • Page 21 Please follow the example below. Please write a short descriptive message to explain the issue or image taken. You may keep record of these messages and access them under the messages section. Fortress Power LLC GM-V2...
