Summary of Contents for Hyundai HS4620

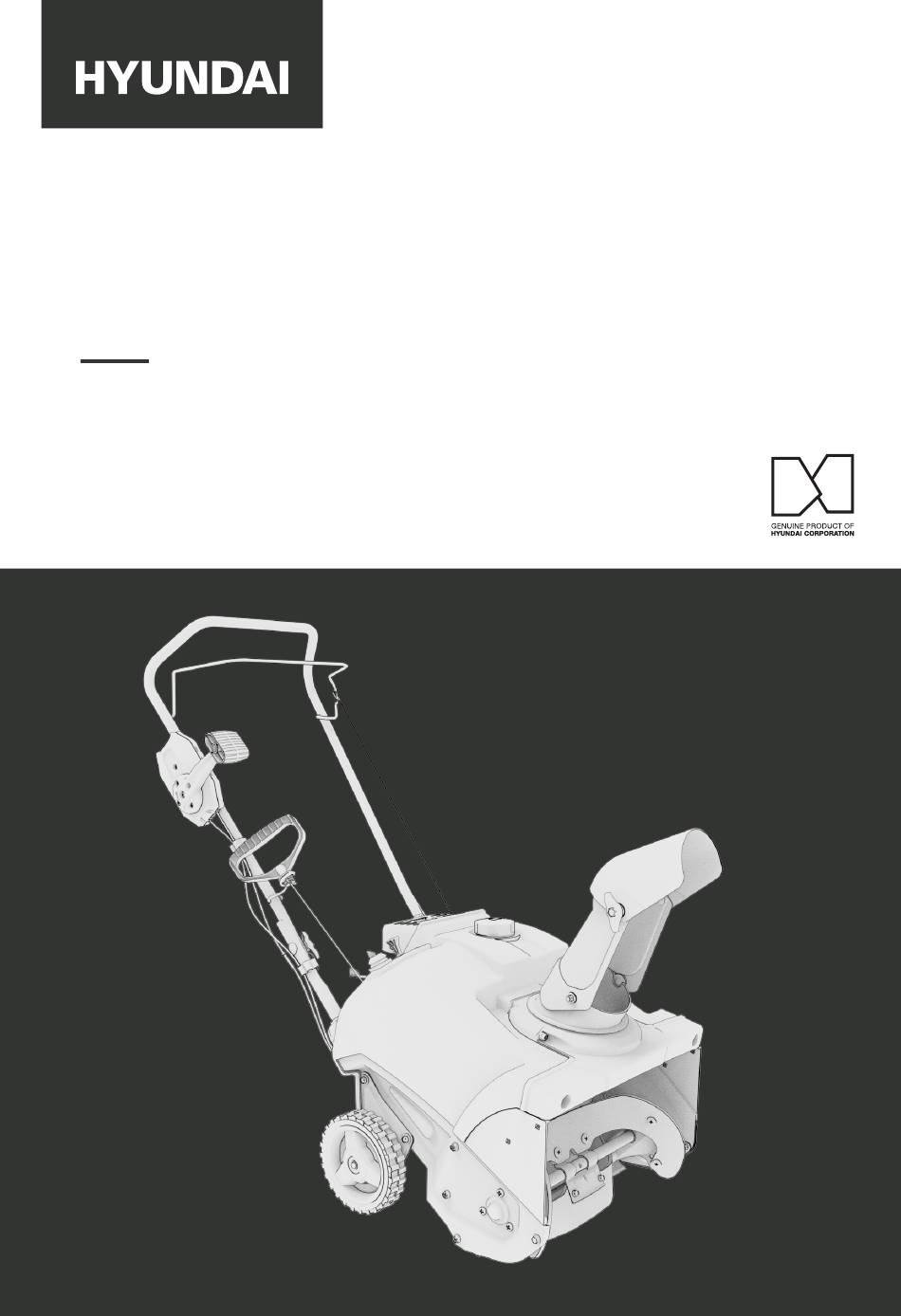

- Page 1 HS4620 Manual...
- Page 2 HYUNDAI HS4620 The engine exhaust from this product contains chemicals known to cause cancer, birth defects or other reproductive harm. ©2023 Hyundai Power Equipment. All Rights Reserved. Licensed by Hyundai Corporation Holdings, Korea. HS4620_Manual_EN_2023-06-23...
- Page 3 HS4620 This product is supported by Midland Power. Contact us directly for assistance and warranty help. Do not return this product to store. You must register online for your warranty to be valid. It only takes a minute, do it now while you still have your purchase receipt.
- Page 4 HYUNDAI Thanks for choosing the HS4620! You're excited to get started, we'll keep this brief. READ THIS ENTIRE GUIDE BEFORE USING THIS PRODUCT AND SAVE FOR LATER USE. This user guide contains important instructions including safety, setup, operation, and maintenance that must be followed.
-
Page 5: Table Of Contents
TABLE OF CONTENTS 1. Safety 1.1 Snowthrower Safety 1.2 Engine Safety 1.3 Maintenance Safety 2. Learn About Your Snowthrower 2.1 Component Identification 2.2 Control Functions 2.3 Make Sure You Have Everything 3. Assembly instructions 3.1 Installing the Handle 3.2 Installing the Recoil Start Handle 3.3 Installing the Auger cable 3.4 Installing the Chute Deflector 4. -
Page 6: Safety
HYUNDAI A note from our designer: When I was a child in Kingston Ontario my family lived beside a retired fellow named Basil. I remember one day Basil got down on one knee to clean out his clogged snowblower, reaching deep into the machine to remove the buildup of hard snow and ice. - Page 7 HS4620 This manual cannot include all situations that can occur when you use this product. Be careful and always take caution. Do not operate the product or perform maintenance if you are not sure about the situation or processes. Speak to a product expert, manufacturer, or service agent for information.
-
Page 8: Engine Safety
HYUNDAI 1.2 ENGINE SAFETY TOXIC FUMES HAZARD. Running engines give off carbon monoxide, an odourless poisonous gas that can cause nausea, fainting, or death. Do not start engine indoors or in an enclosed area, even if the windows and doors are open. -
Page 9: Maintenance Safety
HS4620 1.3 MAINTENANCE SAFETY WARNING! After any maintenance is performed, clean the workspace, and wash your hands immediately using soap and clean water. Repeated and prolonged exposure to lubricant may cause skin irritation. Allow the engine to cool down and turn off the engine before performing any maintenance. -
Page 10: Learn About Your Snowthrower
HYUNDAI 2. LEARN ABOUT YOUR SNOWTHROWER This section will show you how to identify key parts of your snowthrower. Going over the terminology below will make sure we’re on the same page. 2.1 COMPONENT IDENTIFICATION Upper Handle Auger Lever Auger Cable... -
Page 11: Control Functions
HS4620 2.2 CONTROL FUNCTIONS Auger Lever Augers will activate when lever is engaged. Choke Move the Choke to the CLOSED position when starting. Slowly move the Choke back to the OPEN position when engine is warm. Primer Button ... -
Page 12: Assembly Instructions
HYUNDAI 3. ASSEMBLY INSTRUCTIONS 3.1 INSTALLING THE HANDLE Unscrew the hand-fasteners at the joint of the handle assembly. Pivot the upper half of the handle upwards, until the frame snaps in place. Tighten the hand-fasteners to secure the handle assembly. -
Page 13: Installing The Recoil Start Handle
HS4620 3.2 INSTALLING THE RECOIL START HANDLE Slowly pull the recoil start handle so that it is past the handle rest. Thread the cord through the loop opening. Slowly allow the recoil handle to rest onto the loop. Tank•• F ilter••... -
Page 14: Installing The Auger Cable
HYUNDAI 3.3 INSTALLING THE AUGER CABLE Thread the metal end of the cable through the center hole on the left side of the Auger lever. NOTE Once you begin operating this snowthrower, this cable should be adjusted if you find the auger does not engage or disengage quickly. If the auger does not engage when the auger lever is pulled: move the metal end to the higher hole. -
Page 15: Installing The Chute Deflector
HS4620 Tighter Standard Looser 3.4 INSTALLING THE CHUTE DEFLECTOR Remove the lock nut, washer, and bolt from the chute base. Set aside. Gently pull open the sides of the chute deflector to widen it and position the chute deflector onto the base, aligning the tab and slot at the rear. - Page 16 HYUNDAI 8.6.2)Take off the spark arrester from the muffle 8.7) Cleaning•• F u after the engine cool down. Reinstall the lock nut, washer, and bolt on each side to secure the chute. 8.7.1•••• Remove•• t he•• f ue 8.7.2•••• Clean•• t he•• f ilter...
-
Page 17: Pre-Operation Check
Effective Viscosity Range of Engine Oils HS4620 15W-50 4. PRE-OPERATION CHECK Synthetic 5W-30 The engine was shipped from the factory without oil. Before you start the engine, 10W-30 ensure that you add oil according to the instructions in this manual. If you start the engine without oil, it will be damaged beyond repair and will NOT be covered under the warranty. - Page 18 HYUNDAI NOTE Oil max. capacity: 11.8 fl.oz / 350 mL SAE 5W-30 is recommended for general use. Use of synthetic oil does not change maintenance intervals. DO NOT OVERFILL. Effective Viscosity Range of Engine Oils 15W-50...
- Page 19 Oil Capacity: 11.8 . oz / 350 mL HS4620 4.2 ADD FUEL DANGER! Gasoline is highly flammable and explosive under certain conditions. Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow open flames or sparks in the area where the engine is being refueled or where gasoline is stored.
- Page 20 HYUNDAI 4.3 SURVEY YOUR AREA Familiarize yourself with the area in which you plan to operate the snowthrower. Mark off all boundaries of walkways and driveways. Ensure the area to be cleared is free of debris or objects that could be picked up by the auger and thrown from the chute.
-
Page 21: Starting The Engine
HS4620 5. STARTING THE ENGINE DANGER! Using a gas powered engine indoors WILL KILL YOU IN MINUTES. Engine exhaust contains high levels of carbon monoxide (CO), a poisonous gas you cannot see or smell. If you can smell the engine exhaust you are breathing CO. Even if you cannot smell the exhaust, you could be breathing CO. - Page 22 HYUNDAI 5.1 STARTING THE ENGINE 5.1.1 Manual Recoil Start NOTE Return the starter grip slowly by hand, do not let it snap back. Rapid retraction of the starter cord (kickback) will pull your hand and arm toward the engine faster than you can let go and may cause injury.
-
Page 23: Stopping The Engine
HS4620 6. STOPPING THE ENGINE Release the Auger lever. Pull the ignition key to the “STOP” position... -
Page 24: Using Your Snowthrower
HYUNDAI 7. USING YOUR SNOWTHROWER 7.1 ADJUSTING THE CHUTE DEFLECTOR WARNING! Ice, gravel, or other unintended objects can be picked up by the auger and thrown from the chute with force. Objects thrown from the chute could cause death, serious injury, or property damage. - Page 25 HS4620 To adjust the angle of the deflector up or down, use the knob handles to loosen. Once the desired angle is set, tighten the knob handles to set the angle. DO NOT adjust the deflector angle if the engine is running.
-
Page 26: Engaging The Auger
HYUNDAI 7.2 ENGAGING THE AUGER Fully squeeze the Auger Lever against the handle. NOTE The auger should only rotate when the lever is engaged and should stop within 5 seconds when released. If you find the auger does not engage, or does not disengage quickly, TURN OFF the snowthrower and remove the ignition key. -
Page 27: Maintenance
HS4620 8. MAINTENANCE WARNING! Fuel and its vapors are extremely flammable, which could cause burns or fire resulting in death or serious injury. When performing maintenance that requires the unit to be tipped, the fuel tank must be empty, or fuel can leak out and result in a fire or explosion. -
Page 28: Maintenance Schedule
HYUNDAI 8.1 MAINTENANCE SCHEDULE Regular maintenance will improve performance and extend the service life. Maintain the snowthrower according to the schedule below based on your snowthrower’s lifetime hours. NOTE Service more frequently when used in dusty areas or adverse conditions. -
Page 29: Changing The Engine Oil
HS4620 8.2 CHANGING THE ENGINE OIL WARNING! Used motor oil can cause skin irritations if left in long-term contact with skin. Thoroughly wash off used oil as soon as possible with soap and water. Used oil must be disposed of properly. Do not dispose of used oil in drains or on soil. - Page 30 HYUNDAI Remove oil dipstick and wipe with a clean cloth. Pour engine oil slowly into the engine oil fill tube. Check the oil level by inserting the dipstick without screwing it on. Do not overfill. Wait one minute, then insert and tighten the dipstick.
-
Page 31: Spark Plug Service
HS4620 8.3 SPARK PLUG SERVICE 0.70-0.80mm (0.028-0.032in) Remove the spark plug cap. Remove the spark plug with the spark plug wrench. Visually inspect the spark plug. Replace with a new one if the insulation is cracked or chipped. Clean with a wire brush if the spark plug is reused. -
Page 32: Clearing A Clogged Chute Deflector
HYUNDAI 8.4 CLEARING A CLOGGED CHUTE DEFLECTOR Place the unit on a level surface. Release the auger lever. Turn off the engine and remove the ignition key. Ensure the augers have stopped moving. Using a clean-out tool (not included), remove the clog. - Page 33 HS4620 Carburetor Assembly Fuel Cup Seal Mixing Tube (might remain inside carburetor) Main Jet Fuel Cup Washer Drain Bolt Bolt Seal Bolt Turn off the engine. Close the fuel valve. Place a bowl under the fuel cup to catch any spilled fuel.
-
Page 34: Transportation & Storage
HYUNDAI 9. TRANSPORTATION & STORAGE Draining the Fuel Tank Drain the old gas and completely fill the tank with fresh gas. Add a fuel stabilizer according to the manufacturer’s directions to keep your fuel fresh over long periods, we recommend B3C fuel additives. Run the engine for 2 minutes to circulate the fuel stabilizer. - Page 35 HS4620 Storage Gasoline can oxidize in as little as 30 days, causing gum and varnish to build up in fuel system components. NOTE Ensure that the storage area is free of excess humidity and dust. Storage Duration Preparation Required Less than 1 Month ...
-
Page 36: Troubleshooting
HYUNDAI 10. TROUBLESHOOTING Problem Look for Solution The engine does The safety ignition key is Insert the safety ignition key. not start not inserted. Out of fuel. Fill the fuel tank. The ignition key is off. Push the key in to the ON position. - Page 37 HS4620 The engine idles The choke is in the ON Move the choke to the OFF or runs roughly position. position. Fuel line is blocked. Clear the fuel line. There is water in the fuel or Empty the fuel tank and the fuel is too old.
-
Page 38: Technical Specifications
HYUNDAI 11. TECHNICAL SPECIFICATIONS SPECIFICATIONS HS4620 Type Single Cylinder 4 Stroke OHV Engine Displacement 99cc Horsepower 3 HP Engine Speed 4000 rpm Spark Plug E5TC/E5RTC Spark Plug Gap 0.028 - 0.032 in. (0.7-0.8mm) Start System Recoil Fuel Capacity 0.4 Gal / 1.4 L Fuel Type Unleaded Gasoline (Max. -
Page 39: Appendix
HS4620 12. APPENDIX The standard condition of rated power output: Altitude: 0m Ambient temperature: 77°F (25°C) Relative humidity: 30% Factor of Environment Correction: Altitude (m) Ambient Temperature°F (°C) 77° (25°) 86° (30°) 95° (35°) 104° (40°) 113 (45°) 0.98 0.96 0.93... -
Page 40: Limited Warranty
HYUNDAI 13. LIMITED WARRANTY This product is distributed by: Midland Power Inc. 376 Magnetic Drive, Toronto, ON M3J 2C4, Canada Warranty Beginning at the time of retail purchase and for the duration of the warranty period Midland Power Inc. (Midland) warrants that Equipment manufactured by it is warranted to be free from defects in material and workmanship. - Page 41 HS4620 Replacement of parts made in connection with normal maintenance services including oils, adhesives, additives, fuel, filters, brushes, belts, lubricants, spark plugs, gaskets, seals, fasteners, wires, tubes, pipes, fittings, wheels, batteries, and other expendables susceptible to natural wear; g. Any accessory or attachment.
- Page 42 HYUNDAI Emission Control System Warranty Parts: This list applies to parts supplied by Midland Power Inc. and does not cover parts supplied by the equipment manufacturer. Please see the original equipment manufacturer’s emissions warranty for non-Midland Power Inc. parts. Consumable parts are covered up to a maximum of 30 days.
- Page 43 Customer Service Online: www.hyundaipower.ca E-mail: support@midlandpowerinc.com Toll Free: 1-877-528-3772 Enjoy! Be sure to check www.hyundaipower.ca for updates regarding your product.
- Page 44 For Inquiries, Please Contact: Midland Power Inc. 376 Magnetic Drive, Toronto, ON Canada M3J 2C4 1-877-528-3772 support@hyundaipower.ca www.hyundaipower.ca Imported / Distributed by Midland Power Inc., Canada Licensed by Hyundai Corporation Holdings, Korea...
Need help?
Do you have a question about the HS4620 and is the answer not in the manual?
Questions and answers
I have a Hyundai single stage snow thrower, Model Number HS4620. My chute rotator is very difficult to use whenever I want to change directions of the shute. It's become now impossible to move at all. How do you replace the cable(s) for the chute rotator? where and in what direction should they be fed, etc, etc. Diagrams would be very useful and helpful to follow along with or a video. Thank you.
