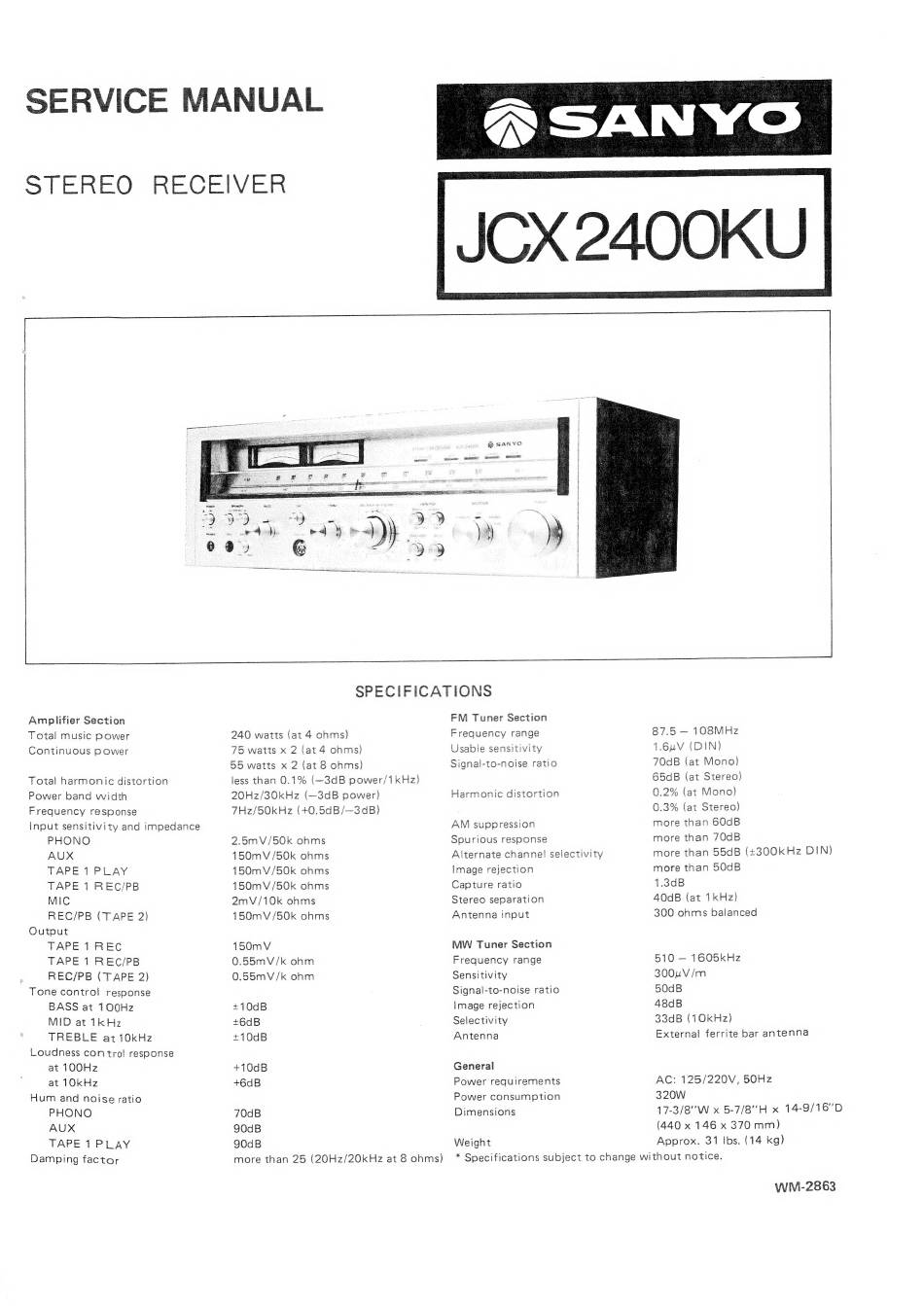

Sanyo JCX2400KU Service Manual

Amplifier Section
Total music power
Continuous power
Total harmonic distortion
Power band width
Frequency response
Input sensitivity and impedance
PHONO
AUX
TAPE 1 PLAY
TAPE 1 REC/PB
MIC
REC/PB (TAPE 2)
Output
TAPE 1REC
TAPE 1 REC/PB
REC/PB (TAPE 2)
Tone control response
BASS at 100Hz
MID at 1kHz
TREBLE at 10kHz
Loudness control response
at 100Hz
at 10kHz
Hum and noise ratio
PHONO
AUX
TAPE 1 PLAY
Damping factor
STEREO: 'RECEIVER
SPECIFICATIONS
240 watts (at 4 ohms)
75 watts x 2 (at 4 ohms)
55 watts x 2 (at 8 ohms)
less than 0.1% (—3dB power/1kHz)
20Hz/30kHz (—3dB power)
7Hz/50kHz (+0.5dB/—3dB)
2.5mV/50k ohms
150mV/50k ohms
150mV/50k ohms
150mV/50k ohms
2mV/10k ohms
150mV/50k ohms
150mV
0.55mV/k ohm
0.55mV/k ohm
£10dB
+6dB
+10dB
+10dB
+6dB
70dB
90dB
90dB
more than 25 (20Hz/20kHz at 8 ohms)
FM Tuner Section
Frequency range
Usable sensitivity
Signal-to-noise ratio
Harmonic distortion
AM suppression
Spurious response
Alternate channel selectivity
Image rejection
Capture ratio
Stereo separation
Antenna input
MW Tuner Section
Frequency range
Sensitivity
Signal-to-noise ratio
image rejection
Selectivity
Antenna
General
Power requirements
Power consumption
Dimensions
Weight
87.5 — 108MHz
1.6uV (DIN)
70dB (at Mono)
65dB (at Stereo)
0.2% (at Mono)
0.3% (at Stereo)
more than 60dB
more than 70dB
more than 55dB (4300kHz DIN)
more than 50dB
1.3dB
40dB (at 1kHz)
300 ohms balanced
510 — 1605kHz
300uV /m
50dB
48dB
33dB (10kKHz)
External ferrite bar antenna
AC: 125/220V, 50Hz
320W
17-3/8°W x 5-7/8"H x 14-9/16"D
(440 x 146 x 370 mm)
Approx. 31 Ibs. (14 kg)
* Specifications subject to change without notice.
