Summary of Contents for STIENEN DLOG-20

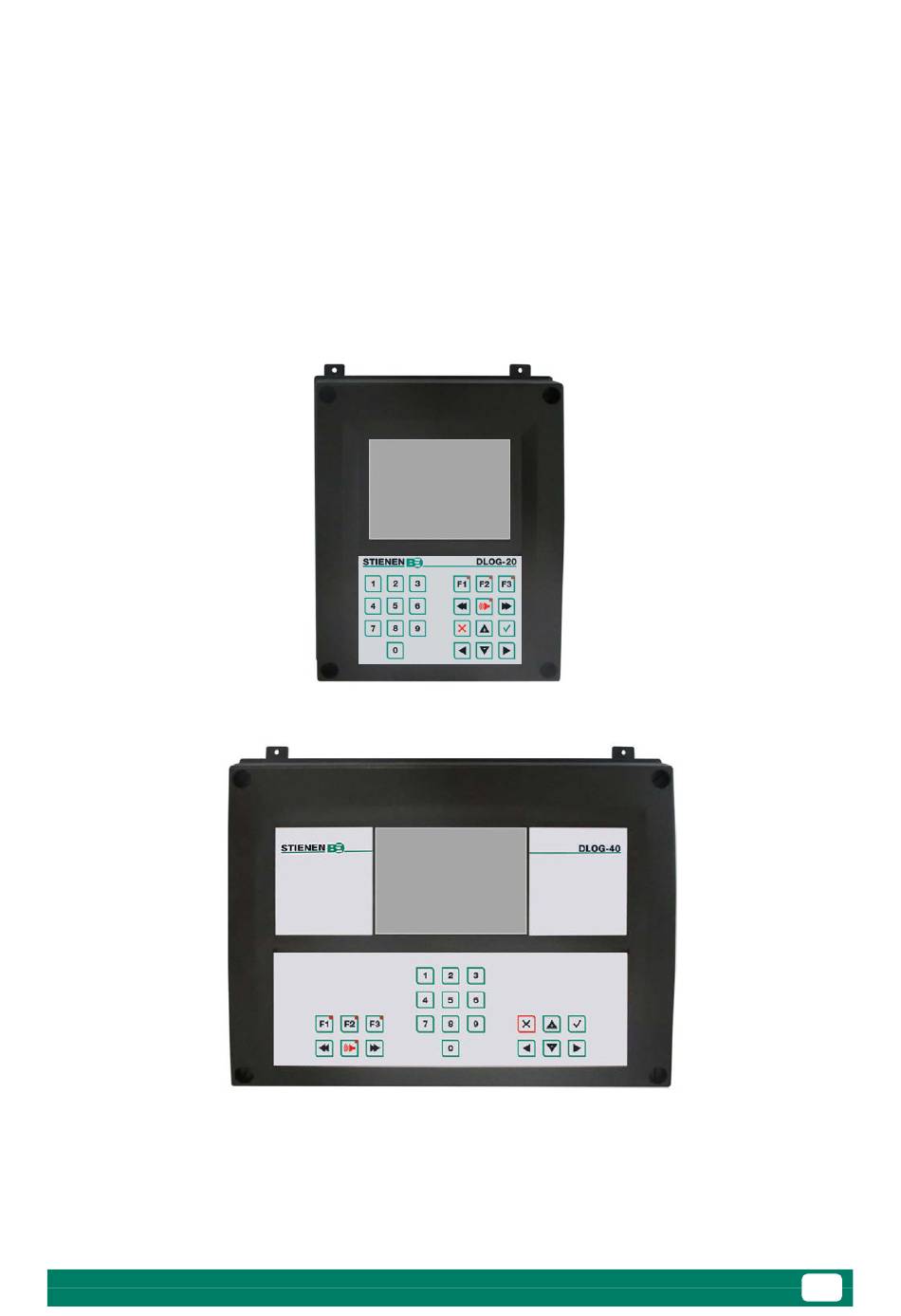

- Page 1 DLOG-20(i) / DLOG-40(i) DATALOGGER FOR 20 AND 40 INPUTS, RESPECTIVELY DLOG-20 (DLOG-20i is the built-in version) DLOG-40 (DLOG-40i is the built-in version) USER MANUAL DLOG-XX-G-EN02100...
-
Page 2: Table Of Contents
No part of this publication may be copied and/or published by photocopying or any other means whatsoever, without prior written permission from Stienen BE (www.stienen.com). We do not accept any liability for the contents of this manual and explicitly waive all implicit guarantees of merchantability or fitness for a certain use. -
Page 3: General Introduction
Please read all information and instructions carefully before using the product. Symbols mark warnings, important notes, tips, etc. in this manual. Stienen has compiled this manual with all due care. If you find any errors, please let us know. 1.1 Symbols and definitions Risk of injury by dangerous electric shock. -
Page 4: Safety Instructions And Warnings
2. Safety instructions and warnings Safety instructions and warnings Read the general safety instructions in this chapter carefully before using the device. A certified installer must install the device and resolve any faults, in accordance with the applicable guidelines. If this product is installed and used in any other way, the warranty will not apply. -
Page 5: About The Dlog-20/Dlog-40
20 hour counters 20 pulse counters The DLOG-20/DLOG-40 has up to ten input fields, enabling you to record events on specific dates, such as 10 litres of acid consumption on dd-mm-yyyy. The data logger stores this data in memory. -
Page 6: Display And Keyboard
4. Display en keyboard Display and keyboard 4.1 Screen layout scrolling up/down screen number + title bar xxx xxxxxxxxxxxxxxxxxxxx Time, date and year scrolling to previous/next screen xx:xx xx xxxxxx 20xx Indication that you can access the remaining settings and measurements using keys Indication that you can access the remaining settings and measurements using keys Indication that you can select the previous/next screen using 4.2 Keyboard... -
Page 7: Function Keys
4. Display en keyboard 4.3 Function keys Press and hold this key and use to select the previous/next language. No function for the user. No function for the user. 4.4 Numeric keys (0..9) Use the numeric keys to enter a screen number, value or text. Select menu item 10 using Text input Button Character allows you to change names;... -
Page 8: Alarm Button
4. Display en keyboard 4.6 Alarm button Shortcut key for alarm screen. The LED in this key lights up in case of an alarm situation. Reset yes = clear all alarms. After a reset, the active alarms Alarm status then reappear on the screen. Main alarm Test 30m00s... -
Page 9: Main Menu
5. Main menu Main menu 5.1 Access code Main menu Main menu 1 Temperature sensors 1 Temperature sensors 2 0-10V inputs 2 0-10V inputs 3 Counters 3 Counters 4 Hour counters 4 Hour counters 5 Pulse counters 5 Pulse counters 6 Manual input 6 Manual input 7 Alarm... -
Page 10: 0-10V Inputs
5. Main menu 10 Temperature sensor 1 Current temperature 24.6°C Min.°C Time Max.°C Time 25,1°C. Interval 24.6 18:23 25.1 17:53 Today 20.2 6:36 28.3 15:04 Yesterday 13.6 6:28 27.2 15:55 24,6°C. Interval (30 minutes) 17:53 18:23 Under Current temperature, you will see the temperature currently measured by the selected sensor. Below this, there is a min/max table showing the minimum and maximum temperatures recorded during the current interval, as well as for today and yesterday. -
Page 11: Counters
Hour counter 5 2:01m 212h Total shows the total number of hours the input has been closed Hour counter 6 2:01m 212h (enabled) since the DLOG-20/DLOG-40 was commissioned. Hour counter 7 12:01m 2014h Hour counter 8 12:15m 2017h Hour counter 9... -
Page 12: Pulse Counters
5.8 Manual entry Sometimes, it is necessary to enter additional data manually. 6 Manual input The DLOG-20/DLOG-40 provides up to 10 manual input fields Manual 1 -06-2024 000001 for this purpose. -
Page 13: Alarm
No alarm Control The last 5 alarm causes that triggered the alarm relay are stored in the DLOG-20/DLOG-40 data logger and displayed on the screen. In addition to the cause of each alarm, the date and time when the alarm occurred are also recorded. -
Page 14: Alarm Codes
To resolve the issue: 1. Check the connection: Ensure that the connection between the DLOG-20/40 and the PC-485 is secure. 2. Verify power: Make sure the PC-485 is powered on. 3. Inspect the fuse: Check the fuse in the PC-485 to ensure it Communications is not blown. -
Page 15: System
7. System System 7.1 Language Under Language, select the language in which the texts should 8 System appear on the screen. Device D-Log You can also change the language by holding down the Programme version ..function key F1 and pressing at the same time.
