Roto Ops Dream Maker Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

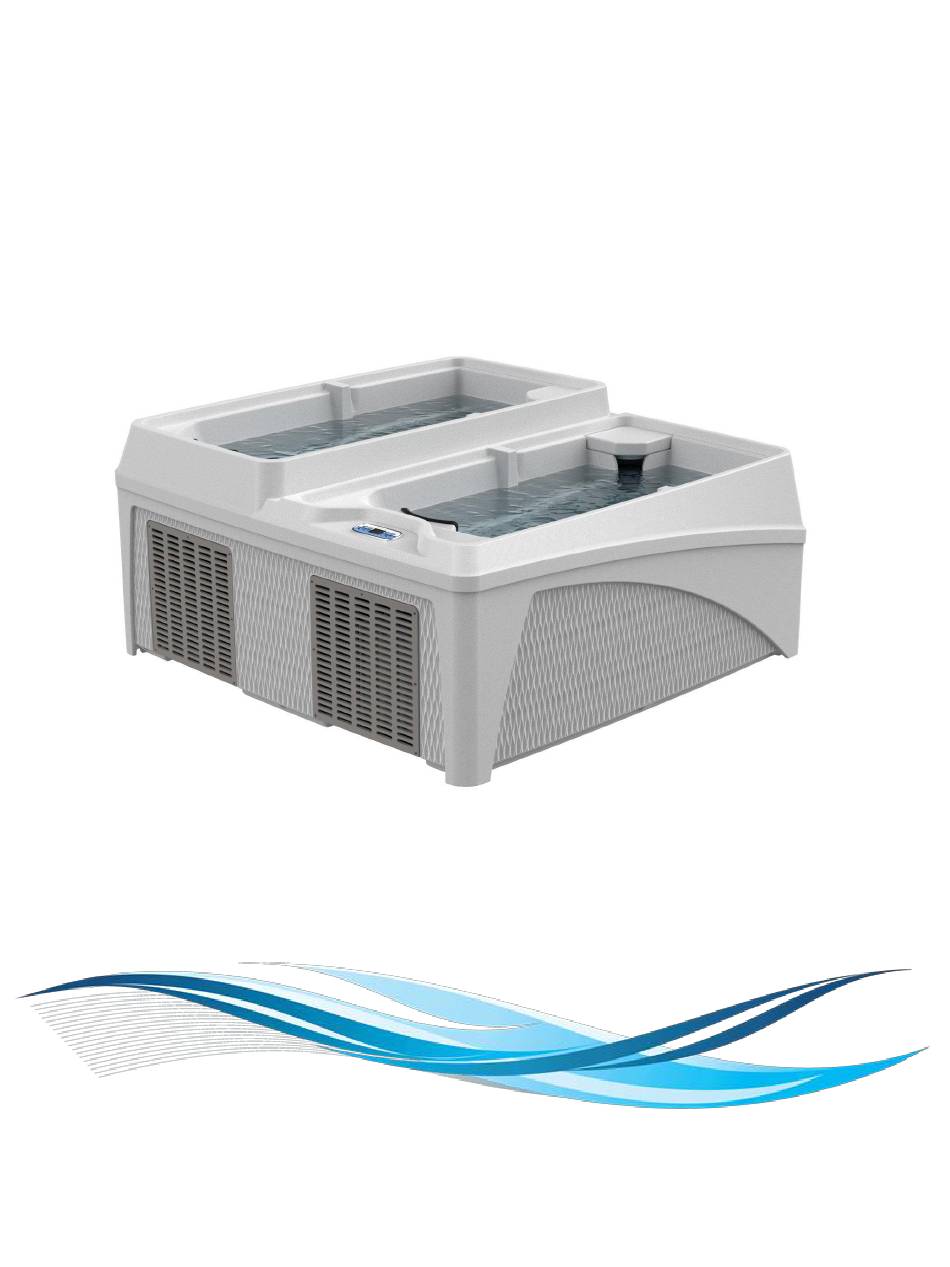

Spa Owner's Manual
AA6
1
PN 378301 Rev D
Domestic

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dream Maker and is the answer not in the manual?

Questions and answers

Related Manuals for Roto Ops Dream Maker

Summary of Contents for Roto Ops Dream Maker

  • Page 1 Spa Owner’s Manual PN 378301 Rev D Domestic...

  • Page 2: Owner's Information

    OWNER’S INFORMATION DEALER/RETAILER Company ___________________________________________________________________ Address ___________________________________________________________________ Phone ___________________________________________________________________ E-mail ___________________________________________________________________ INSTALLER Company ___________________________________________________________________ Address ___________________________________________________________________ Phone ___________________________________________________________________ Model (see below) ______________________________________________________________ Serial Number (see below) ______________________________________________________ Color ___________________________________________________________________ Date of Delivery _________________________________________________________________ Locate the white plate by access doors, near the floor.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS FIX IMPORTANT SAFETY INSTRUCTIONS……………………………………………………………………………………………………………………………………4-7 SELECT A LOCATION……………………………………………………………………………………………………………………………………………………………..8-9 SPA COVER INSTALLATION…………………………………………………………………………………………………………………………………………………..10 COMPONENT LOCATIONS AND IDENTIFICATIONS………………………………………………………………………………………………………………..11 FILLING YOUR SPA………………………………………………………………………………………………………………………………………………………………..12 DRAINING YOUR SPA……………………………………………………………………………………………………………………………………………………………13 SYSTEM OPERATION………………………………………………………………………………………………..…………………………………………………………..14-17 SURFACE SKIM FILTER ………………………………………………………………………………………………………………………………………………………….18 REMOVING AND CLEANING THE FILTER CARTRIDGES ……………………………………………………..…………………………………………………..18 AIR INJECTION VENTURI ADJUSTMENT………………………………………………………………………………………………………………………………...19 CLEANING THE DUST SCREENS…………..………………………………………………………………………………………………………………………………...19 WATER CHEMISTRY……………………………………………………………………………………………………………………………………………………………….20-21 REPLACING THE LED LIGHT…………………………………………………………………………………………………………………………………………………….22...

  • Page 4: Important Safety Instructions

    When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: READ AND FOLLOW ALL INSTRUCTIONS WARNING: To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times.
  • Page 5 14. WARNING: If equipped, broken or missing drain covers should be replaced immediately. Accidents can occur when long hair or a body part is trapped by suction from a drain or outlet whose cover is broken or removed. Children are particularly vulnerable, and they should be warned against danger. 15.
  • Page 6 with relaxed soaking in hot water. This can lead to sleep or unconsciousness and possibly result in drowning. Using your spa with other people who are also drinking is not a preventative measure since they are likely to become similarly affected by the combinations of alcohol and hot water soaking.
  • Page 7 a. If you are sick or have a weaker immune system, you do not want to put too much stress on your system. Therefore, it is wise to skip ice baths when you are sick. Also be more careful when you have health problems and consult your doctor first, to find out if ice bathing could be potentially harmful in your case.

  • Page 8: Selecting A Location

    Selecting a location ❑ WARNING! DO NOT STORE OUTDOORS WITHOUT THE PROPER WATER LEVEL. A spa stored outside in direct sun, without proper water level, uncovered or under a tarp/cover, can accumulate temperatures that will damage the spa, its components and void the warranty. Only store an empty spa indoors or in the shade. ❑...
  • Page 9 ❑ Are there overhead electrical lines? Do not locate your spa under overhead power lines or in near proximity to existing buried or exposed electrical circuits. ❑ Is there adequate room to access the service door, drain, filter and insulating cover removal? If you are installing your spa near a wall or with any type of structure on the outside, such as a gazebo, remember to allow access for service and insulating cover removal.

  • Page 10: Spa Cover Installation

    Spa Cover Installations WARNING! AVOID DROWNING RISK • Failure to follow instructions may result in injury or drowning. • Non-secured covers are a hazard. • Keep children away. People or objects cannot be seen under the cover. • Because of entrapment possibility, remove cover completely before entry of bathers. •...

  • Page 11: Component Locations And Identifications

    Component Locations and Identifications...

  • Page 12: Filling Your Spa

    Filling Your Spa Warning! Your spa is constructed of a very resilient and flexible polymeric material. It is designed to flex as much as 2 inches (5cm) without damage. However, overfilling the spa and/or installing it on a non-level surface for extended periods of time can permanently distort the original shape of your spa, cause structural damage, affect the sealing of the cover and void your warranty.

  • Page 13: Draining Your Spa

    Draining the spa Draining both the cold and hot side spas on a regular basis rids the spa of dissolved solids and protects your spa equipment from the effects of residual calcium hardness and total alkalinity problems. Depending upon usage, it may be as often as every three months.

  • Page 14: System Operation

    Initial Start-Up WARNING! DO NOT SUPPLY ELECTRICAL POWER UNTIL THE SPA HAS BEEN SET IN PACE, LEVELED, SAT FOR 24 HOURS AND BOTH TUBS ARE PROPERLY FILLED WITH WATER. The oil in the chiller must settle before it can operate without damage to the compressor. Failure to let it settle for 24 hours before operating can void the warranty.
  • Page 15 Control Use Set temperatures. Touch the button to select between Fahrenheit/Celsius degree display. Touch the button to select between hot or cold side. When this button is touched, a white line will appear under either the hot or cold side. While the white line shows, use the buttons to adjust the desired temperature.
  • Page 16 Control panel warning information. The following is the screen status when this information is displayed, as shown. When the following fault messages appear, first please try to power off the system and then power on again a few minutes later to clear the fault; If the fault occurs again, please follow the instructions below to handle the fault;...
  • Page 17 F13: Cold side temperature is too low. Heating protection temperature is too low. The control system has detected that the temperature is too low. Please pay attention to freeze protection. F14: Cold side temperature sensor is disconnected. Heating protecting temperature sensor disconnected. The control system has detected the temperature sensor is not connected.

  • Page 18: Surface Skim Filter

    SKIMMER FILTERS CLEANING OR REPLACEMENT OF THE FILTER CARTRIDGE The spa’s automatic surface skimmer filters are designed to remove floating debris and contaminants, such as body lotions, by drawing water through a specially formulated filter cartridge element. It is critical that this element be routinely cleaned.

  • Page 19: Air Injection Venturi Adjustment

    Hot Side Air Injection Venturi Adjustment Air injection into the hot side’s jet water stream is adjusted by turning the venture dials. Turn it counterclockwise to increase, and clockwise to decrease, the amount of air injected into the jets’ water stream.

  • Page 20: Water Chemistry

    PRECAUTIONS-Important Chemical Safety • Do not use this device with bromide products. • Do not use Sodium Chloride as an additive. • Do not use any Product containing Sodium Bromide. • To prevent unintended mixing of chemicals, use the same sanitizer and chemicals for both sides of the spa. Spa water chemistry (or water balance) affects the safety of your equipment as well as the appearance of your spa water.
  • Page 21 who can assist you in prescribing the correct program for your spa. Store all chemicals in a cool dry place and in such a manner as to prevent contact by children and pets. When adding chemicals to your spa water, add to the center of the spa with the pump operating. Never add chemicals to unheated water as this will affect chemical action.

  • Page 22: Replacing The Led Light

    Replacing the LED light. 1. Turn off the power to the spa. 2. Remove the cabinet access door nearest the LED light. 3. Locate the LED light to be replaced. 4. Pull the LED light out of the light socket. 5.

  • Page 23: Freeze Protection And Winterization

    DO NOT ALLOW THE SPA TO FREEZE CAUTION RISK OF EQUIPMENT DAMAGE: DO NOT ALLOW EITHER TUB’S WATER TO FREEZE. THE SPA MUST BE MOVED INDOOR TO A CLIMATE CONTROL AREA, OR DRAINED AND WINTERIZED IF AMBIENT AIR FALLS TO, OR BELOW, 32 DEGREES F [0 DEGREES C]. You may want to consider contacting a spa professional for winterizing service.

  • Page 24: Cleaning Your Spa

    CLEANING YOUR SPA Do not use cleaners or compounds containing harsh abrasives. Also, avoid using heavy-duty rubbing or buffing compounds. Use a soft liquid cleaner. CARE OF THE COVER Your cover is designed to be easy to maintain. It can be washed or brushed off and rinsed. Proper care and cleaning are important to the life of all fabrics.

  • Page 25: Frequently Asked Questions

    • Why does my spa not shut off? The spa is designed to run from the time you plug it in. The hot side will run until it reaches your desired temperature. Once the desired temperature is reached then you can control the on/off with the buttons on the control panel.

  • Page 26: Purging The Hot Side Pump

    PURGING THE PUMPS Hot Side. Sometimes after a water change (draining and refilling the spa), or initial start-up of the spa, there is no water flowing from the jets. You may hear the pump operating or even see the shaft of the pump motor turning but have no water flowing from the jets.

  • Page 27: Purging The Cold Side Pump

    To prevent an air lock in the cold side plumbing, before you start filling and while you are filling, unscrew and remove the air bleed valve on the cold side, as seen below. After properly filling, screw the air bleed valve to a snug fit. If the cold side has an air lock, you may want to try draining and filling again.

  • Page 28: Jet Tool

    Jet Tool This wrench is used to tighten jets when needed. To tighten the jets, insert the hex portion of the wrench into the hexagon hole at the base of the jet and turn clockwise. Do not over tighten.

  • Page 29: Troubleshooting Guide

    SITUATION PROBABLE CAUSE ACTION NO HEAT OR HEAT TOO LOW Operating while spa cover is open. Ensure that spa cover is properly closed. Dirty filter Remove filter cartridge and clean. JETS WON’T COME ON No power to spa control. Check the GFCI plug, circuit breaker and/or disconnect switch. NO CONTROL DISPLAY OR FUNCTIONS No power to spa control.
