Operating Instructions Manual

Special tips:

1. Before installation and operation, please read this operation manual carefully.

2. Please save this manual for future reference.

3. Product may vary slightly from the item pictures due to model upgrades.

Questions, problems, missing parts? Contact technical support department at

657-341-0362, 9:00 a.m. - 5 p.m., PST, Monday - Friday or contact us via email at

support@scsources.com.

Please have your model and serial number ready

Scan QR Code to Visit Registration Page:

MOTORIZED TREADMILL

Model#TM2302

Table of Contents

Need help?

Do you have a question about the LifeTrend TM2302 and is the answer not in the manual?

Questions and answers

Summary of Contents for Supply Chain Sources LifeTrend TM2302

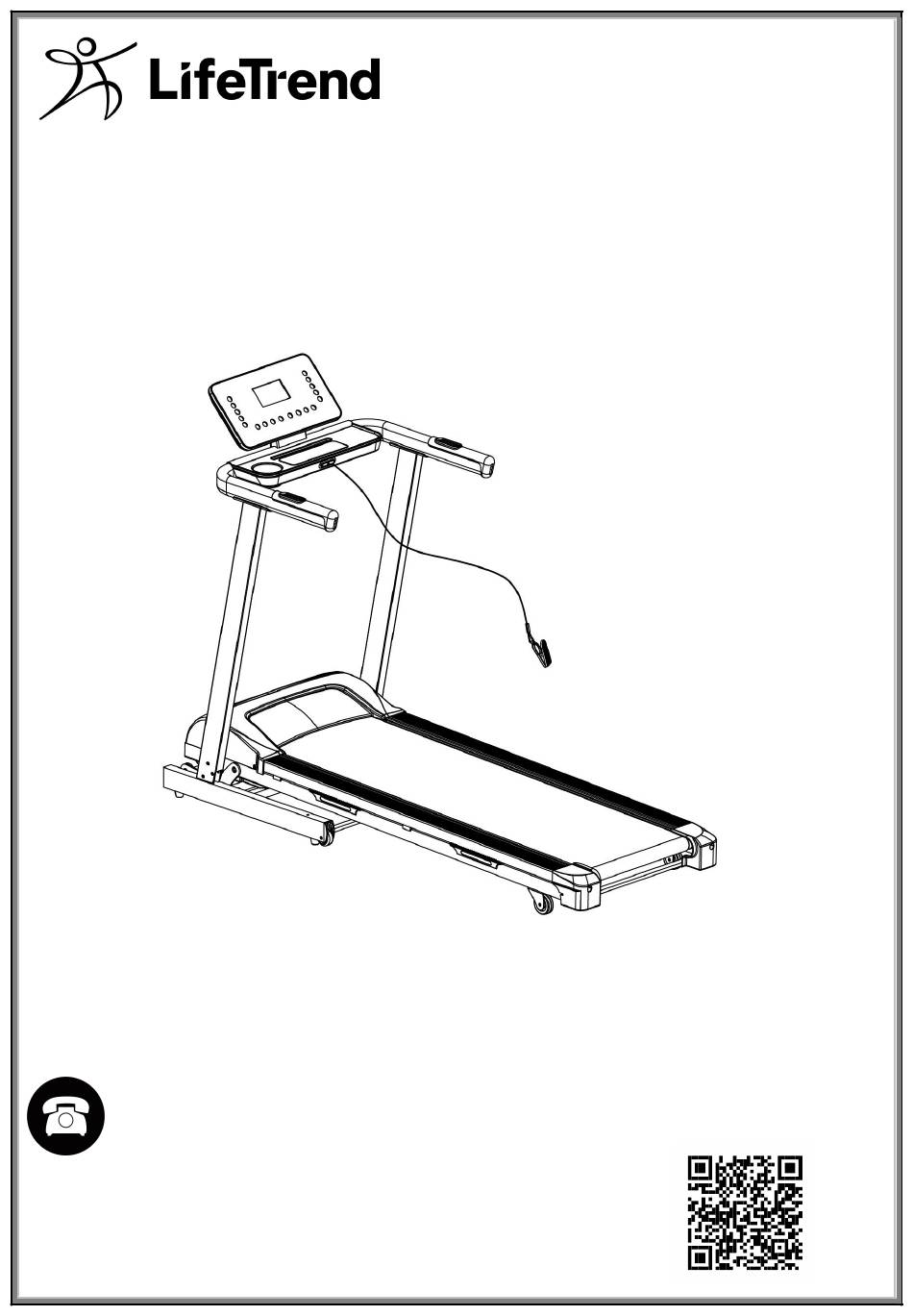

Page 1 Model#TM2302 ® LIFE TREND is a registered trademark of Supply Chain Sources LLC., All Rights Reserved. Operating Instructions Manual Special tips: 1. Before installation and operation, please read this operation manual carefully. 2. Please save this manual for future reference.
Page 2: Electrical Safety Instruction
Electrical Safety Instruction When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. DANGER –To reduce the risk of electrical shock: Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING –To reduce the risk of burns, fire, electric shock, or injury to persons: 1.
Page 3: Important Safety Instruction
Important Safety Instruction To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.
Page 4 Important Operating Instructions 1. Insert the power plug directly into the socket. 2. Read the manual before operating the equipment. 3. Changes in speed do not occur immediately. 4. While on the treadmill, move with caution as distractions may cause you to lose balance and stray from walking in the center of the belt.
Page 5 Assembly Parts and Tools Required When you open carton box, you will find below spare parts: Spare parts list： Part description Quantity Treadmill Frame Handle Bar Set Console Set Lubrication Oil Safety Key Tools: Please check carefully if all items inside the packaging box are complete and in good condition. If anything is missing or damaged, please contact customer service!
Page 6: Assemble The Treadmill
Assemble the Treadmill...
Page 13 How to Fold&Move...
Page 14: Important Electrical Information
Important Electrical Information WARNING: This treadmill requires a right power source in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging the equipment. Any incorrect power source could cause significant damage to the equipment and or user. GROUNDING METHODS: This product must be grounded.
Page 15: Window Display
Operation Guide Window Display 1. PROG When you choose program, display current program from P01-P12-FAT. 2. TIME: Display the time elapsed. 3. SPEED: Display current speed. 4. INCL.: Display current slope. 5. PULSE: Display the current pulse. Hold on the hand pulse sensor by both hands for 5 seconds, the console will show user’s pulse value.
Page 16 Console Button Function 1. MODE: Under standby mode,press this button to choose among time count down, distance count down, and calories count down. Press “START/PAUSE” button to start. 1.1 TIME COUNT DOWN Under standby mode, press MODE button till window twinkles and it enters into time countdown ˅...
Page 17 Press this button to stop. STOP: Press this button to decrease the speed. SPEED -： Press this button to increase the speed. SPEED +: 9. SPEED ( 2, 4, 6, 7, 8): Speed quick button. Press these buttons to enter desired speed directly. 10.
Page 18 10.2 Body Fat Test Under standby mode, press PROG. button until you get to FAT. -Press MODE to enter information. ˅ ˄ Set value with SPEED+/- or “INCLINE ” “INCLINE ” buttons from -1- to -4-(-1-SEX, -2- AGE, -3- HEIGHT, -4-WEIGHT). -Press MODE to enter -5-(BODY FAT TEST), hold hands on the hand pulse sensors, the console will display your body fat value after 5 seconds.
Page 19: Safety Lock Function
Transfer between Kilometer&Mile: Pull off the safety key. Press “PROG.” and “MODE” buttons together and hold on for 3 seconds, the window will show “0”(“0” for “kilometer”) or “1”(“1” for “mile”). Press both “SPEED+” and “SPEED-” buttons and hold on for 3 seconds, you can transfer between “mile” and “kilometer”. Insert the safety key back to confirm the setting and the machine will enter into standby mode.
Page 20: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in Plug cord into outlet Treadmill will not start Safety key not inserted Insert Safety key Running belt tension not Tighten the adjustment bolts on the Running belt not centered correct on the left or right sides of left and right side of the rear roller the running board Wires from the PCB...
Page 21 Check the upper and middle wires to see if the control board is E06/E08: Control board is connected. If the wire has been damaged. Control Board Abnormality punctured or damaged, you will E07: Display data is missing. need to replace it. If the problem is not rectified, you may need to replace the control board.
Page 22: Maintenance And Care
Maintenance & Care General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the running belt to prevent dust from accumulating underneath the belt. Keep your running shoes clean so that dirt from your shoes does not wear out the running board and belt.
Page 23: Lubricating The Treadmill
Lubricating the Treadmill IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the running board and running belt is essential as the friction between the two affects the life span and function of the treadmill, therefore it is suggested that the running board and belt be inspected regularly.
Page 24: Exploded Drawing
Exploded Drawing...
Page 26: Parts List
PARTS LIST Part Description Remark Part Description Remark Cone Foot Pad Bottom Frame Blue Cushion Main Frame Power Cord Buckle Console Bracket Rubber Pad Left Upright Tube Right Upright Tube Spacer Φ30*Φ16.5*3 Motor Bracket Adjusting Cushion Console Assembly Fixing Plate Adjusting Wheel Lifting Assembly Foot Pad...
Page 27 Part Description Remark Part Description Remark Hand Pulse Connection Washer 861.2-87 5 Wire-Lower Washer GB/T 93-1987 5 Key Button Board-L Lock Washer Φ8 Key Button Board-R Key Button Bolt M5*10 Key Button Connection Board-Middle Wire L&R Key Button Connection Screw ST4.2*45 Wire Middle Bolt...
Page 28: 90-Day Limited Warranty
90 DAY LIMITED WARRANTY The manufacturer warrants this product against defects in materials and workmanship on functional parts, for a period of 90 days from the original date of purchase. Your sales receipt showing the date of purchase of the product is your proof of purchase. Keep it in a safe place for future reference.
Page 29 V1.0...
