Summary of Contents for MyTrendyPhone 1531W

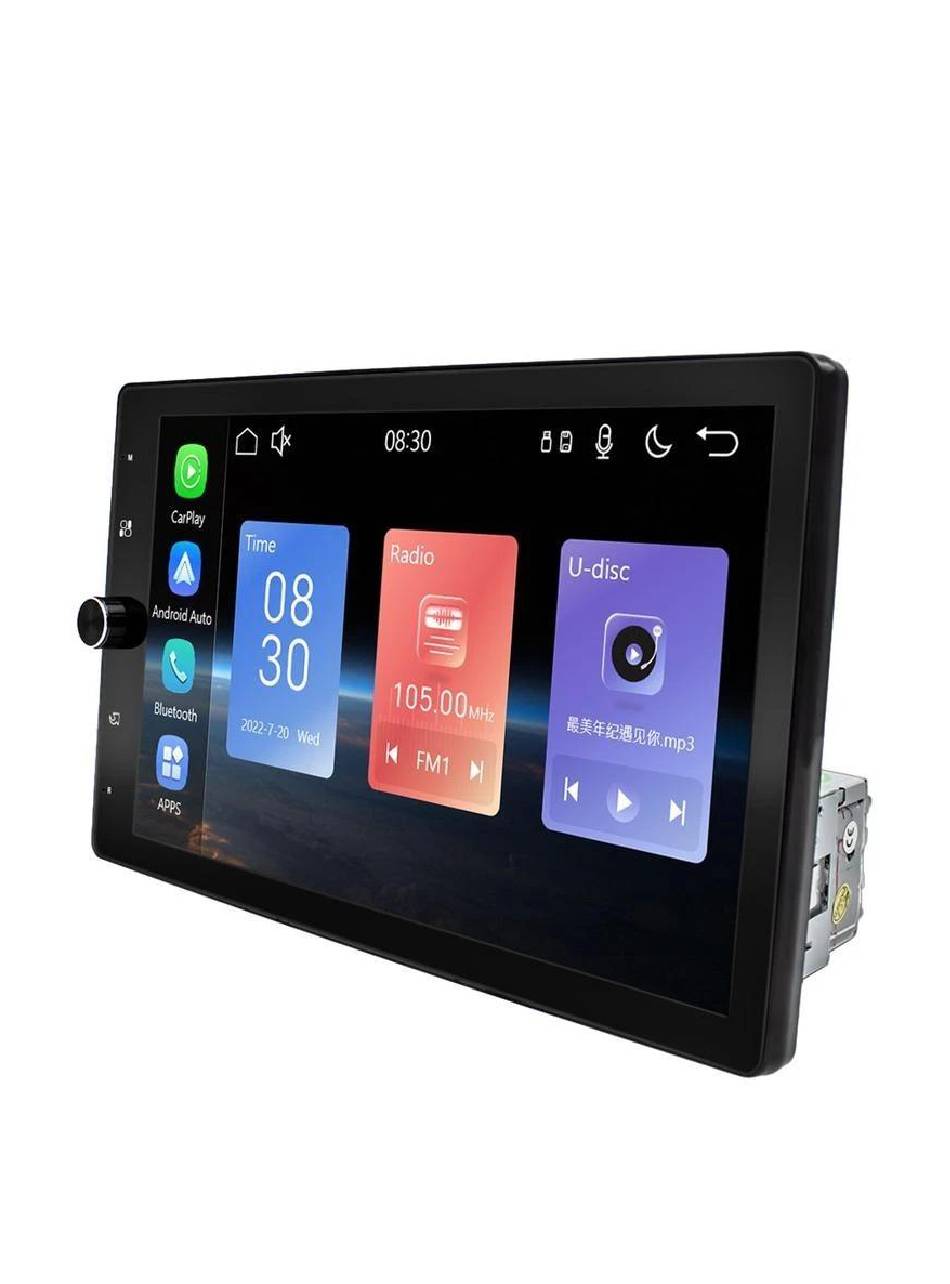

- Page 1 1531W Bluetooth Car Stereo with CarPlay / Android Auto Navigation 10.4"...
-
Page 2: Specifications
Attention 1. The abnormal situation occurring during operation, please pressing reset key on the panel to restore factory settings. 2. When the in-car temperature is much higher or lower, please adjust the temperature inside the car first before using this machine. 3. - Page 3 Wiring diagram 7042-A-E-U 1. Rear Right + Speaker (Violet) 2. Front Right + Speaker (Gray) 3. Front Left + Speaker (White) 4. Rear Left + Speaker (Green) 5. Rear Right - Speaker (Violet/Black) 6. Front Right - Speaker (Gray/Black) 7. Front Left - Speaker (White/Black) 8.
- Page 4 16PIN Power socket 48PIN multi-function socket FM 1. Ground wire (Black) 2. +12V Constant Power Supply (Yellow) 3. +12V Accessory/Switch (Red) 4. High beam line (Orange) OR NC 5. Parking Sensor Control wires (Pink) 6. Brake line (Brown) OR NC 7.
- Page 5 Function brief Support the audio playback format of MP3/WMA/WAV/MKV/FLAC/OGG/APE Support the video playback format of RM/RMVB/DVD(VOB)/VCD(DAT)/MP1/MP2/DIVX/XVID/MP4/H263/H264/FLV/3 GP/SWF/AVI/ASF/MJPEG etc. Support the picture format of JPG/BMP/PNG etc. Rearvien camera function Right turn blind area detection function HD digital TFT screen Multi screen display Two channel video/audio output One channel audio and video input interface Super-clear FM radio, can store 6 stations, support AM, RDS function...
- Page 6 Main interface 1. Volume icon: click pop-up volume adjustment 2. Time display: click enter time adjustment interface 3. BT/memory card/U disk, status display (no change status, no display) 4. Function button: click to enter the corresponding function interface, right slide can turn page 5.
- Page 7 1. Band switching FM1/2/3/AM1/2, support RDS 2. Forward/backward search 3. Automatic scanning storage 5. Stereo switching 6. Long-range or short-range switching 7. Radio button, short press switch to preset station, long press save current station 8. Radio frequency forward/backward fine-tuning 1.
- Page 8 1. Hang up button 2. Voice switching (between phone and unit) 3. Mute button 4. Return button 5. Synchronous cell phone all record...
- Page 9 Main interface 1. Five buttons from left to right: BT, FM, main interface, voice key, setting 2. Time date 3. FM 4. U disk play 5. Day / night / screen off switching 6. Volume - 7. Volume + 8. Mute 9.
- Page 10 1. Delete key 2. Sync phone book 3. Previous 4. Pause button 5. Next...
- Page 11 EQ setting mode 1. From top to bottom 6 button: set, EQ sound, display setting, dock, background, steering wheel remote control, click into the corresponding interface 2. Forward/backward selection EQ effects 3. EQ custom adjustments 4. Click enter speaker effect interface 5.
- Page 12 Display and time setting interface 1. Picture screen proportional selection 2. Time adjustment area: year, month, day, hour, minute, second, click adjust 3. Reset button 4. Time adjustment area: year, month, day, hour, minute, second, click adjust 5. Confirm button 6.
- Page 13 Introduction to panel features 1. Power 2. Back to desktop 3. vol. + 4. vol. - 5. AUX input 6. Reset hole 7. TF card slot 8. USB 9. Remote control receiver 10. Microphone 1. Microphone 2. Remote control receiver 3.
- Page 14 Introduction of vertical panel button 1. Menu 2. Voice 3. Power 4. Previous 5. Next 1. Mic 2. Card 3. Menu 4. Voice 5. Phone 6. Power/Volume 7. Res 8. USB 9. Back 10. Video 11. Music 12. Mode...
- Page 15 Main functions of single spindle 1: Remote control receiver 2: AUX input 3: Reset hole 4: Microphone 5: USB 6: Memory card slot 1: MIC 2: Return to main menu 3: Volume + 4: Return to desktop 5: Volume - 6: Return to the previous level 7: Res...
