PELEKIS INTD1010 Reference Manual

Nfc access control system
Hide thumbs

Advertisement

Table of Contents

NFC Access control system
Σελ. 2
Σελ. 3
Σελ. 4
Σελ. 5
Σελ. 6
Σελ. 7-9
Please read the instructions carefully to be able to achieve all the
INTD1010
Firmware Revision
General description-Features
Specifications
Wiring diagram
Device Operation
Device programming
benefits of this device.
Reference Manual
www.pelekis.tech
Rev. 1.00
August 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INTD1010 and is the answer not in the manual?

Questions and answers

Summary of Contents for PELEKIS INTD1010

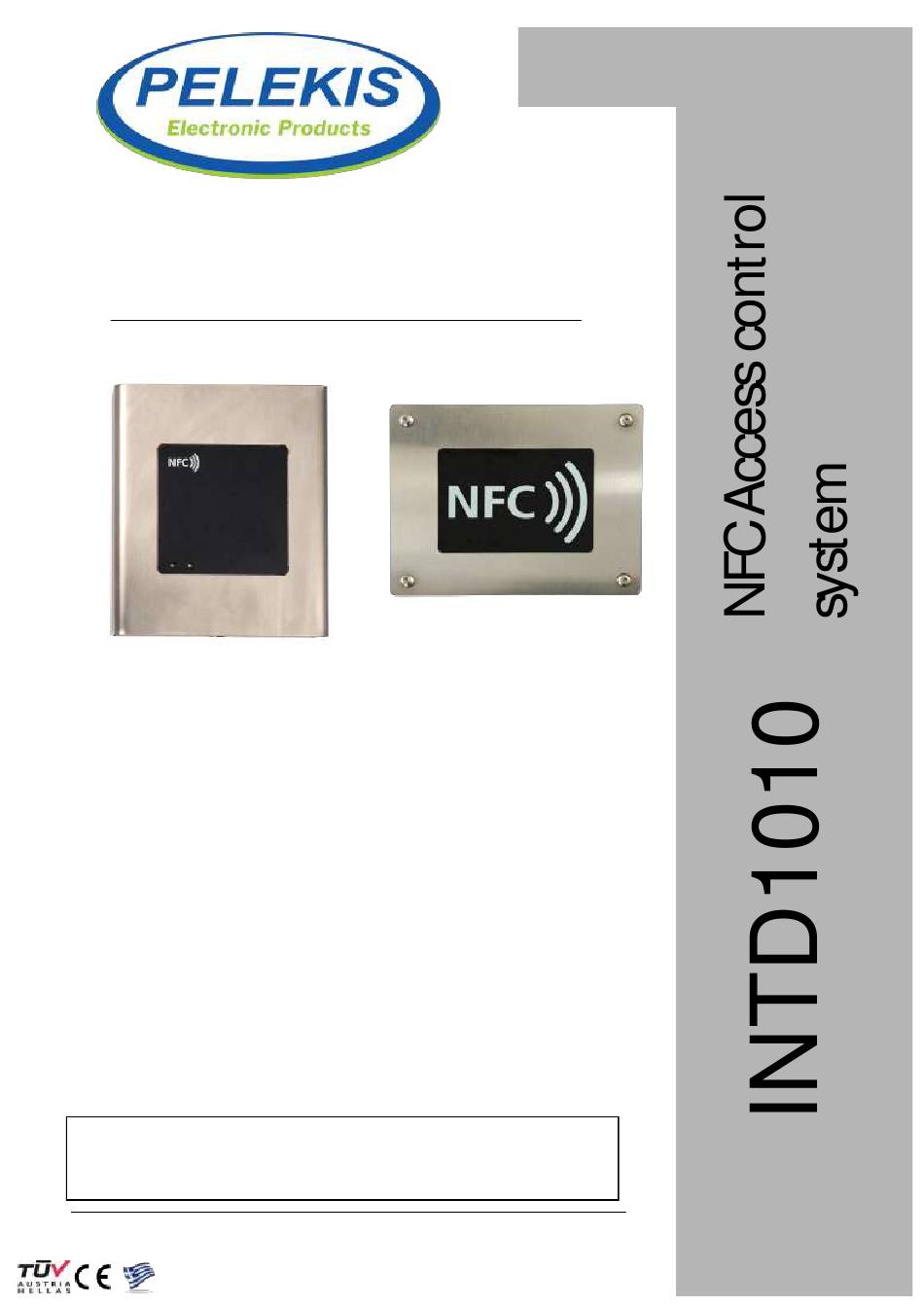

  • Page 1 Reference Manual NFC Access control system INTD1010  Σελ. 2 Firmware Revision  Σελ. 3 General description-Features  Σελ. 4 Specifications  Σελ. 5 Wiring diagram  Σελ. 6 Device Operation  Σελ. 7-9 Device programming Please read the instructions carefully to be able to achieve all the benefits of this device.
  • Page 2 Firmware Version history  v1.00 08/2017 (Initial release) PELEKIS ELECTRONICS ISO9001/2015 Rev. 1.0 August 2017...

  • Page 3: General Description

    The INTD1010 Intelco Access Control is fully programmed with any mobile phone that is compati- ble with NFC technology and through a specific mobile application that is provided free of charge by Pelekis Electronics.

  • Page 4: Specifications

    LED indicators 1x green 1x red Acoustic power buzzer 70db Operating temperature 0-80°C Moisture level 10-80% (non condensing) Dimensions (external) 60 x 210 x 145 mm (H x W x D) Weight <1Kg PELEKIS ELECTRONICS ISO9001/2015 Rev. 1.0 August 2017...

  • Page 5: Wiring Diagram

    Power Supply board. Power supply and outputs board Connector that links the Central unit board with the Power Supply board. Outputs connection (Normal Open) Power supply Common + Outputs from the relay PELEKIS ELECTRONICS ISO9001/2015 Rev. 1.0 August 2017...

  • Page 6: Device Operation

    (eg celebration in an apartment, work on a floor). All the above actions are controlled by the system administrator with the help of the transfer card and the specially designed mobile application "Pelekis NFC Access Control" available on PlayStore and Pelekis Electronics website.

  • Page 7: Device Programming

    Step 1: Adding a New Device At the home page of the application are appeared all the stored devices (INTD1010). When there are not stored devices in the application, this page is blank and a message prompt the user to add a new one.
  • Page 8 User Card registration. This action will give the opportunity to create multiple User Cards with exactly the same settings and configuration( Access points - Delays) PELEKIS ELECTRONICS ISO9001/2015 Rev. 1.0 August 2017...
  • Page 9 Transfer Card and afterwards to the device. As per image below we can accomplish the above operation by pressing the option “View/ edit registered users” in the Edit Configuration screen. PELEKIS ELECTRONICS ISO9001/2015 Rev. 1.0 August 2017...
  • Page 10 Transfer Card to the mobile in order to accomplish the save process. PELEKIS ELECTRONICS ISO9001/2015 Rev. 1.0 August 2017...
  • Page 11 Attention ! Each Device is designed to recognize a "specific" Transfer Card and therefore we can not pro- gram our INTD1010 with any Transfer Card. This ensures the possibility of changing the Device's data from unauthorized persons. In case of damage or loss of the Transfer Card you should contact our company to arrange the replacement.

  • Page 12: Additional Programming

    For the above changes to take effect, we will need to transfer the data to the Transfer Card from the initial Edit Configuration screen as done in Step 3: “View/ Edit User and Save to the trans- fer Card”. PELEKIS ELECTRONICS ISO9001/2015 Rev. 1.0 August 2017...
  • Page 13 If the "No" option is selected, the process is canceled, in case "Yes" option is selected the man- ager is asked to bring the mobile phone into contact with the Transfer Card. PELEKIS ELECTRONICS ISO9001/2015 Rev. 1.0 August 2017...
  • Page 14 Device from the application. By selecting the "No" button in the pop-up text ,the deletion process is canceled while on the other hand by selecting the "Yes" button, the process is been completed. PELEKIS ELECTRONICS ISO9001/2015 Rev. 1.0 August 2017...
  • Page 15 In addition, through the "Administrator Access" button, some additional actions may be performed that are not part of this manual. Administrator access requires a password provided by our com- pany for specific use. PELEKIS ELECTRONICS ISO9001/2015 Rev. 1.0 August 2017...

  • Page 16: Technical Support

    Technical support: For technical support on this product, please contact a local reseller or directly Pelekis Elec- tronics. Contact information Pelekis Electronics : Τel. :+30 210 23 23 345 Fax :+30 210 23 86 382 E-mail : service@pelekis.tech Website : www.pelekis.tech...
