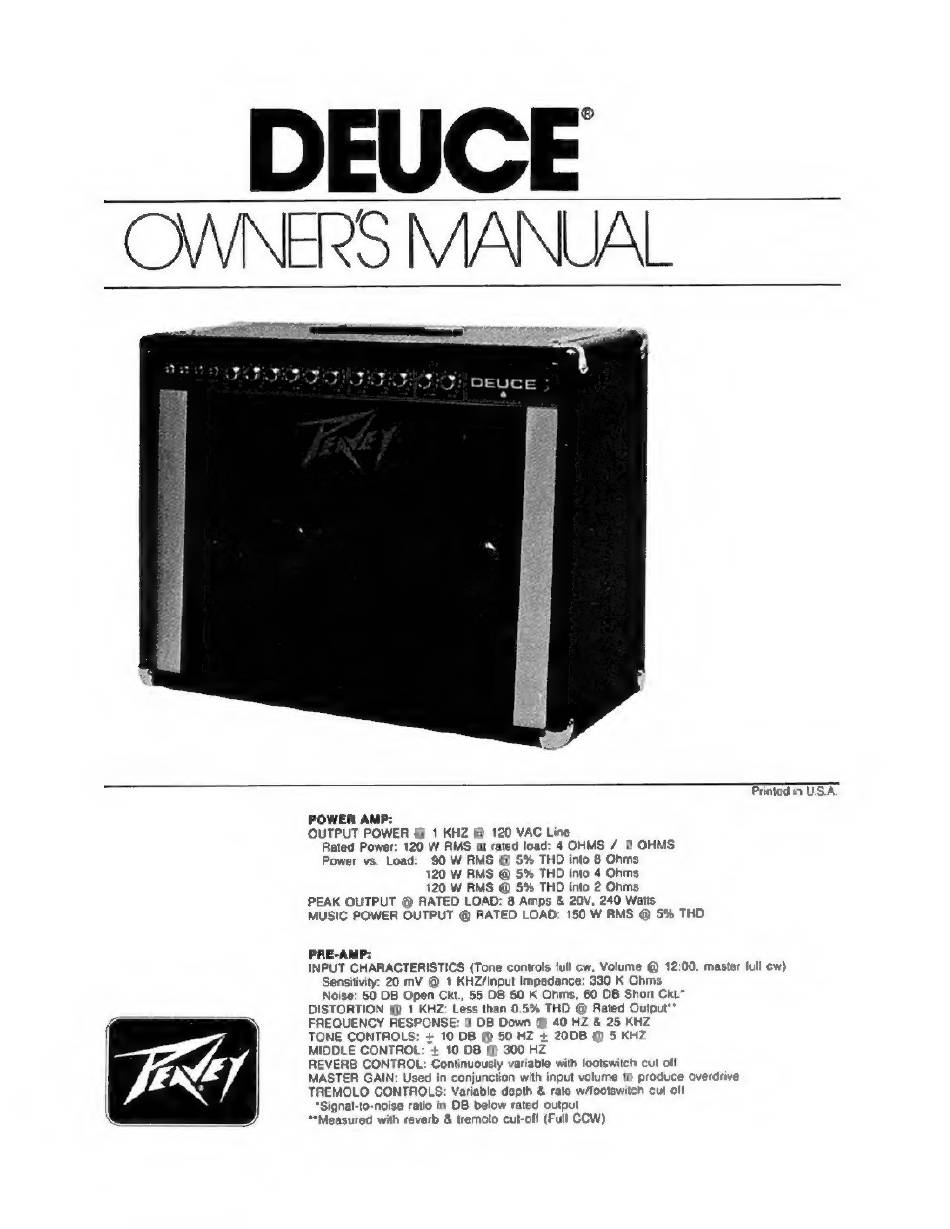

Peavey DEUCE Owner's Manual

DEUCE
OWNERS MANUAL
Printed in USA
POWER AMP:
OUTPUT POWER @ 1 KHZ @ 120 VAC Line
Rated Power: 120 W RMS al rated load: 4 OHMS / 2 OHMS
Power vs. Load: 90 W RMS @ 5% THD into 8 Ohms
120 W RMS @ 5% THD into 4 Ohms
120 W RMS @ 5% THD into 2 Ohms
PEAK OUTPUT @ RATED LOAD: 8 Amps & 20V. 240 Watts
MUSIC POWER OUTPUT @ RATED LOAD: 150 W RMS @ 5% THD
PRE-AMP:
INPUT CHARACTERISTICS (Tone controls full cw, Volume @ 12:00, master full cw)
Sensitivity: 20 mV @ 1 KHZ/Input Impedance: 330 K Ohms
Noise: 50 DB Open Ckt., 55 DB 50 K Ohms, 60 DB Short Ckt.*
DISTORTION @ 1 KHZ: Less than 0.5% THD @ Rated Output"*
FREQUENCY RESPONSE: 3 DB Down @ 40 HZ & 25 KHZ
TONE CONTROLS: + 10 DB @ 50 HZ + 200B @ 5 KHZ
MIDDLE CONTROL: + 10 DB @ 300 HZ
REVERB CONTROL: Continuously variable with footswitch cut off
MASTER GAIN: Used in conjunction with input volume to produce overdrive
*Signal-to-noise ratio in DB below rated output
"Measured with reverb & tremolo cut-off (Full CCW)
