Quick Start Guide
General Information
Read the instructions before commencing installation. The user is to retain the instructions for future reference.
• Espire Alarms have been designed and developed for fixed residential installation and use.
• The Alarm is required to be permanently wired to a 230V mains electrical supply by a qualified electrician in accordance with the local
wiring regulations.
• Before commencing electrical work, ensure the mains isolator on the consumer unit is in the 'OFF' position to prevent electric shock and ensure the
Alarm is complete with the Lock-in Wiring Base.
• After installation the Alarm is to be tested weekly: Press and hold the Test/ Hush button for at least 10 seconds to ensure the Alarm sounds and all
interconnected Alarms activate.
Product Description
• ES1SLV Optical Smoke Alarm Powered by Mains Supply with a Sealed 10 Year Lithium Battery
• ES1HLV Heat Alarm Powered by Mains Supply with a Sealed 10 Year Lithium Battery
• ES1MULV Optical Smoke and Heat Multi-Sensor Alarm Powered by Mains Supply with a
Sealed 10 Year Lithium Battery
The Alarm is supplied with a Lock-In Wiring Base.
The RF-Link (ES1RF) module is supplied with the Alarm or available separately.
The Alarm's backup battery is sealed and non-replaceable.

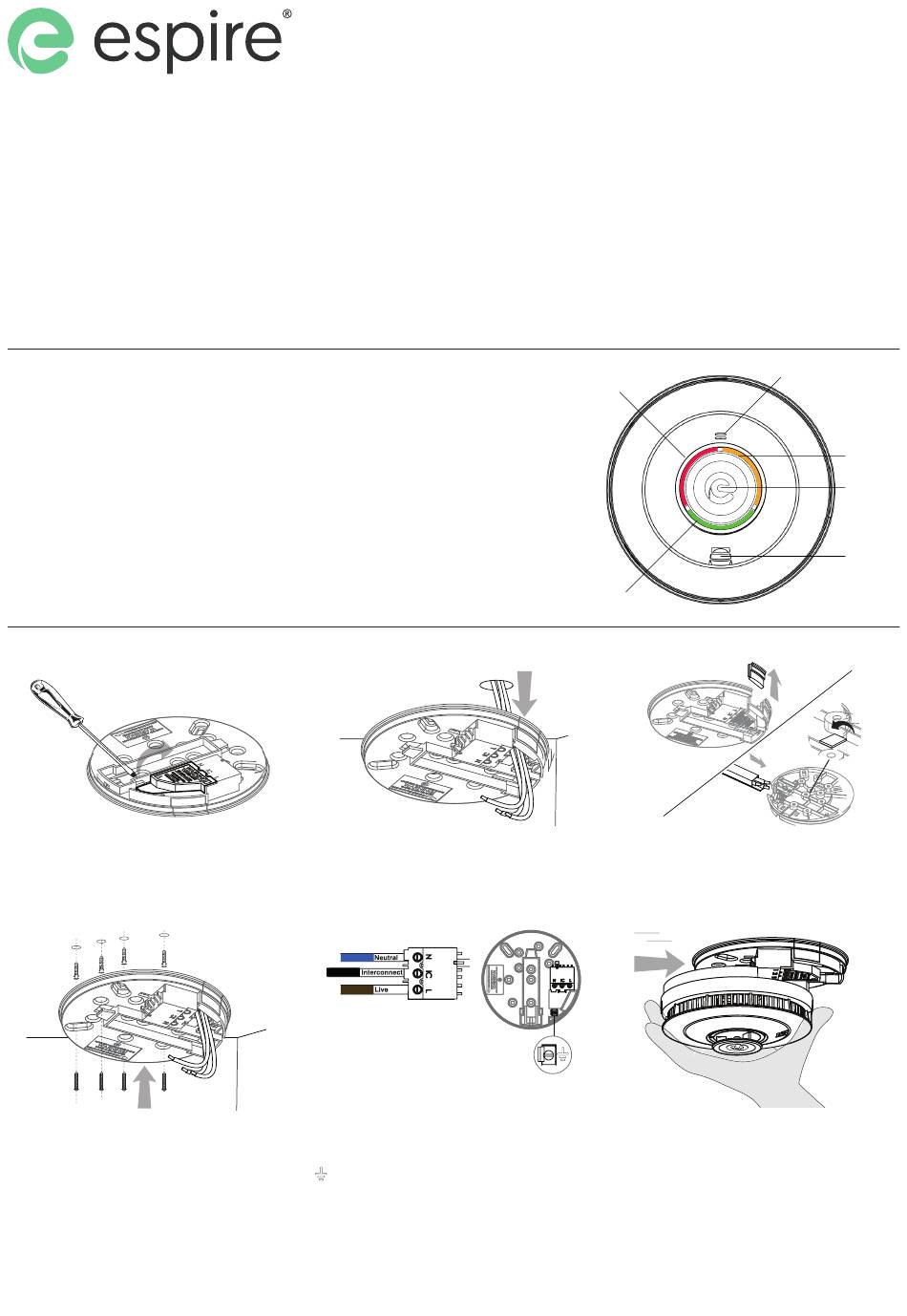

Alarm Connections
Step 1.
On the Lock-in Wiring Base remove the cover
for the wiring terminal block using a
flathead screwdriver.
Step 4.
Using the base, mark the desired mounting
holes, drill and re-align the base, screwing
into place.
Multiple mounting holes are available for
retro fit installations.
Step 7.
After the wiring connections have been made and checked, connect the mains power supply. Check that the Red LED flashes at 40 second
intervals to show that the Alarm is functioning and the Green power status LED is permanently illuminated.
Alarm Powered by Mains Supply with a Sealed 10 Year
Lithium Battery with Optional RF-Link Module
Step 2.
Lead recessed wires through the rear entry
of the base.
Earth Terminal
Step 5.
Connect the wires to the terminal block;
L: Live (Brown), N: Neutral (Blue),
IC: Interconnect (UK/Black) or (ROI/White)
: Earth Terminal (Green & Yellow)
The Alarm is not required to be Earthed, the
Earth Terminal has been provided for safe
termination.
ES1SLV, ES1HLV, ES1MULV
Red Alarm LED
Green Power LED
Step 3.
For surface wiring; slide the trunking clip away
from the base.
Step 6.
Replace the terminal block cover as shown
in Step 1, and carefully line up the Alarm to
the base and slide on until secured and a
'click' is heard.
Light Sensor
Amber
Fault LED
Test/Hush
Button
Sounder
