Summary of Contents for Eagle EG708AE

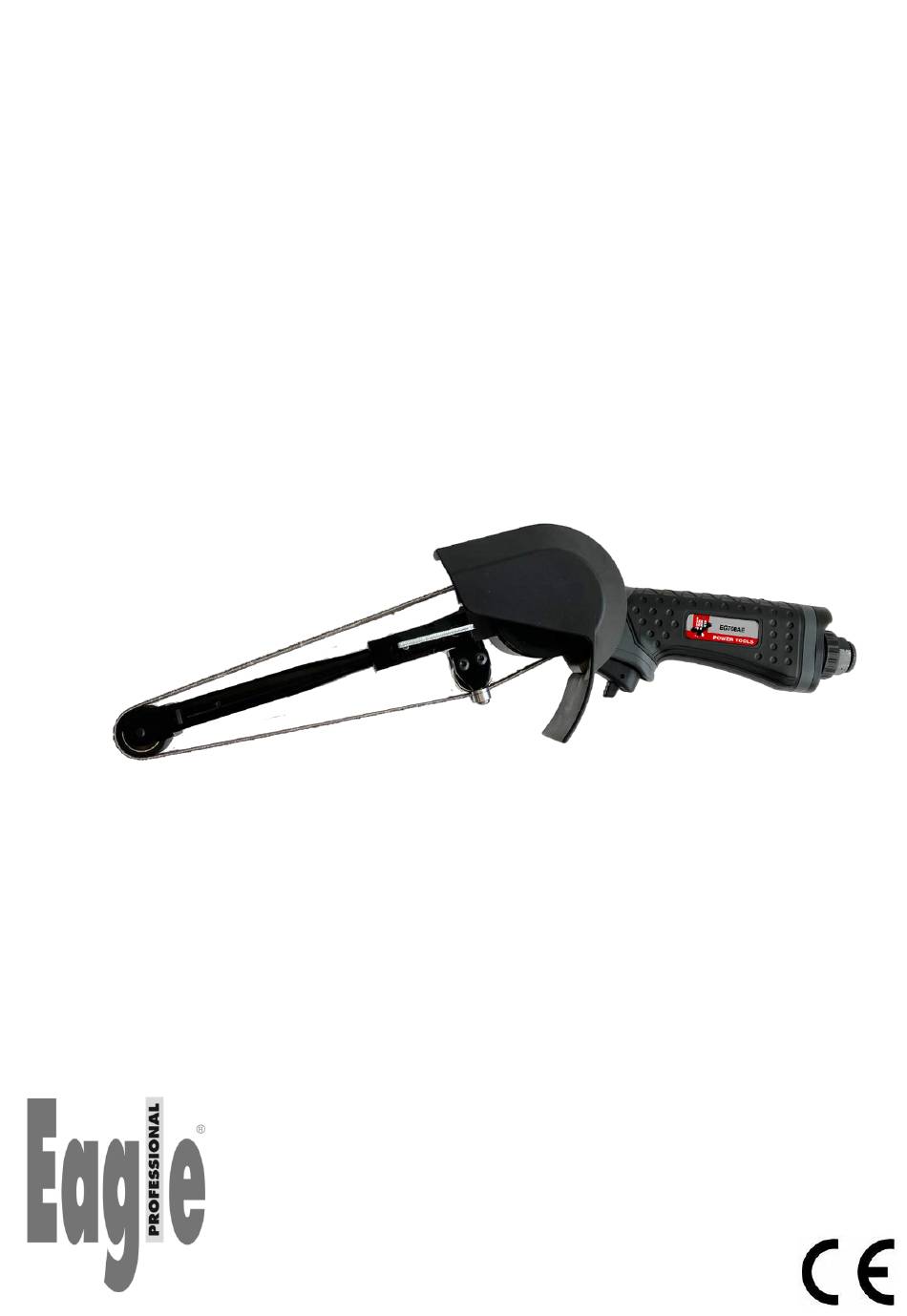

- Page 1 User manual Pneumatic belt sander EG708AE...
-
Page 2: Table Of Contents
Your special attention is asked • Avoid unintentional starting of the tool. for important specific instructions • Unexpected tool movement caused by or safety risks reaction forces or breakage of accessories can cause injuries. User manual Eagle EG708AE Pneumatic belt sander... -
Page 3: Main Application
• Loose clothing and hair can get caught in • Make sure the work piece is properly supported or fixed. the rotating spindle and may cause • Only use original Eagle sanding belts of serious injuries. • When working in tight spaces hand the correct size. -
Page 4: Installation
Regularly clean the tool to remove sanding dust and dirt. Regularly check the free speed of the tool using a tachometer. The free speed may never exceed the max free speed as mentioned in the technical specifications. User manual Eagle EG708AE Pneumatic belt sander... -
Page 5: Operating Instructions
The angle of the belt arm can be changed to reach tight places. Loosen the belt arm angle locking screw with the supplied Allen key. Rotate the belt arm towards the desired position. Securely fasten the belt arm angle locking screw. User manual Eagle EG708AE Pneumatic belt sander... -
Page 6: Specifications
Slowly press the start/stop lever. The tool will start. Disconnect the air-tool before changing the belt or adjusting the belt arm angle or the belt alignment. Only use original Eagle sanding belts of the correct dimensions, supplied by your distributor. Always check the belt alignment prior to use. -
Page 7: Exploded View
SHROUD ST29022AAS CYLINDER SET ST70857-40# SANDING BELT (40#) ST70822 ROTOR BLADE ST70857-60# SANDING BELT (60#) ST70823A ROTOR ST70857-80# SANDING BELT (80#) ST70624 ST70659 HEX (2 mm) ST25125 BEARING SPACER 23039 HEX (3 mm) User manual Eagle EG708AE Pneumatic belt sander... -
Page 8: Eu Declaration Of Conformity
For the following equipment Product Pneumatic belt sander Multiple List Model No. EG708AE Brand Name EAGLE Complies with the requirements of the European Community Directive 2006/42/EC. The above product(s) has (have) been tested and has been found in compliance with the European Standards as listed below.
