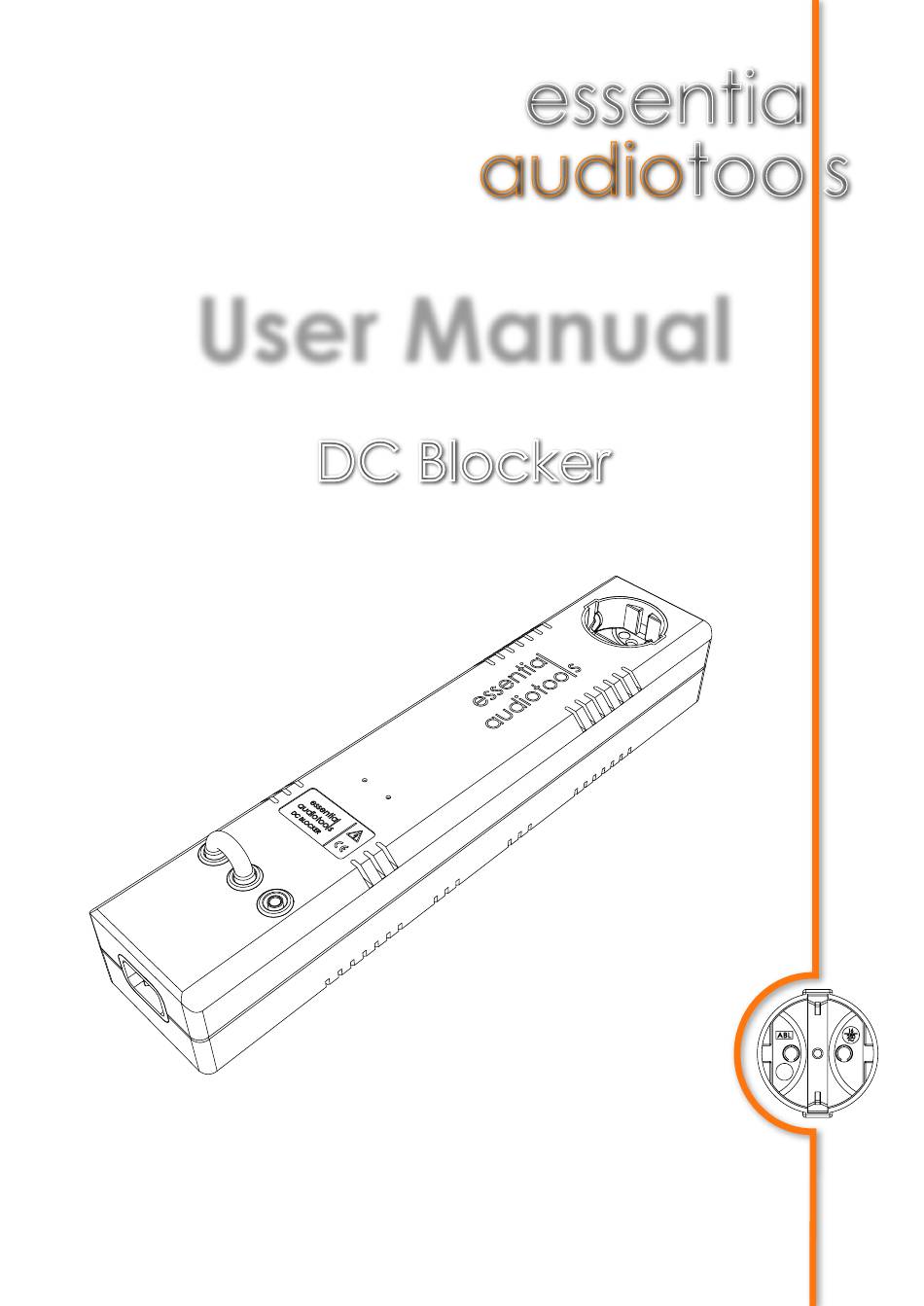

- Page 1 User Manual Rev 1.0 October 2024 DC Blocker...
-
Page 2: Table Of Contents
The Essential Audio Tools cables, distribution boxes, DC Blocker, filters and phase indicator make any audio set perform better. Essential Audio Tools invests lots of time and effort to make products as good as they can be. They are all made with use of precision CNC machining. Beautifully shaped, well-designed and manufactured from top-quality material by experts. -
Page 3: Description
AC source is at a different level than the ground of another AC source. The difference is usually amplified in the form of audible hum. Unique to our DC Blocker is what we call the ‘Ground-Bridge’. With the Ground-Bridge you are able to choose between the earth terminal in your wall socket or an external earth you supply yourself. -
Page 4: Safety Precautions
Possible damages due to exceeding these maximum ratings will void warranty. Heat The DC Blocker may generate heat. This is normal if the DC Blocker is required to power a large amplifier. Caution should be taken to keep the DC Blockers’ ventilation holes free from obstruction e.g. -
Page 5: Connections
The DC Blocker has a build in slot for a fuse. This fuse will protect your equipment and the DC Blocker itself from malfunctions. The slot is easily accessible from the bottom of the product. -
Page 6: Specifications
essentia Specifications audiotoo s Rated voltage 220-240V~ @ 50/60 Hz Max. continuous current Protecting Phase-Neutral Maximum voltage 250V~ Maximum peak-voltage 2500V Maximum peak-current 4500A Maximum peak-energy 2x65 Joule Response time <25 nanoseconds Dimensions 329 x 70 x 53.5mm Weight 1,1 kg Input connector IEC C14 Output connector... -
Page 7: Problem Solving
1 – Check the wall socket by plugging in a light or load to check if the power is present. 2 – Check if the power cord from the wall socket to the DC Blocker is functioning and make sure the power cord is plugged deep enough into the DC Blockers’ input. - Page 8 MORE INFORMATION: WWW.ESSENTIALAUDIOTOOLS.COM Essential Audio Tools: CopyRight by Square Audio BV, The Netherlands, info@essentialaudiotools.com...
