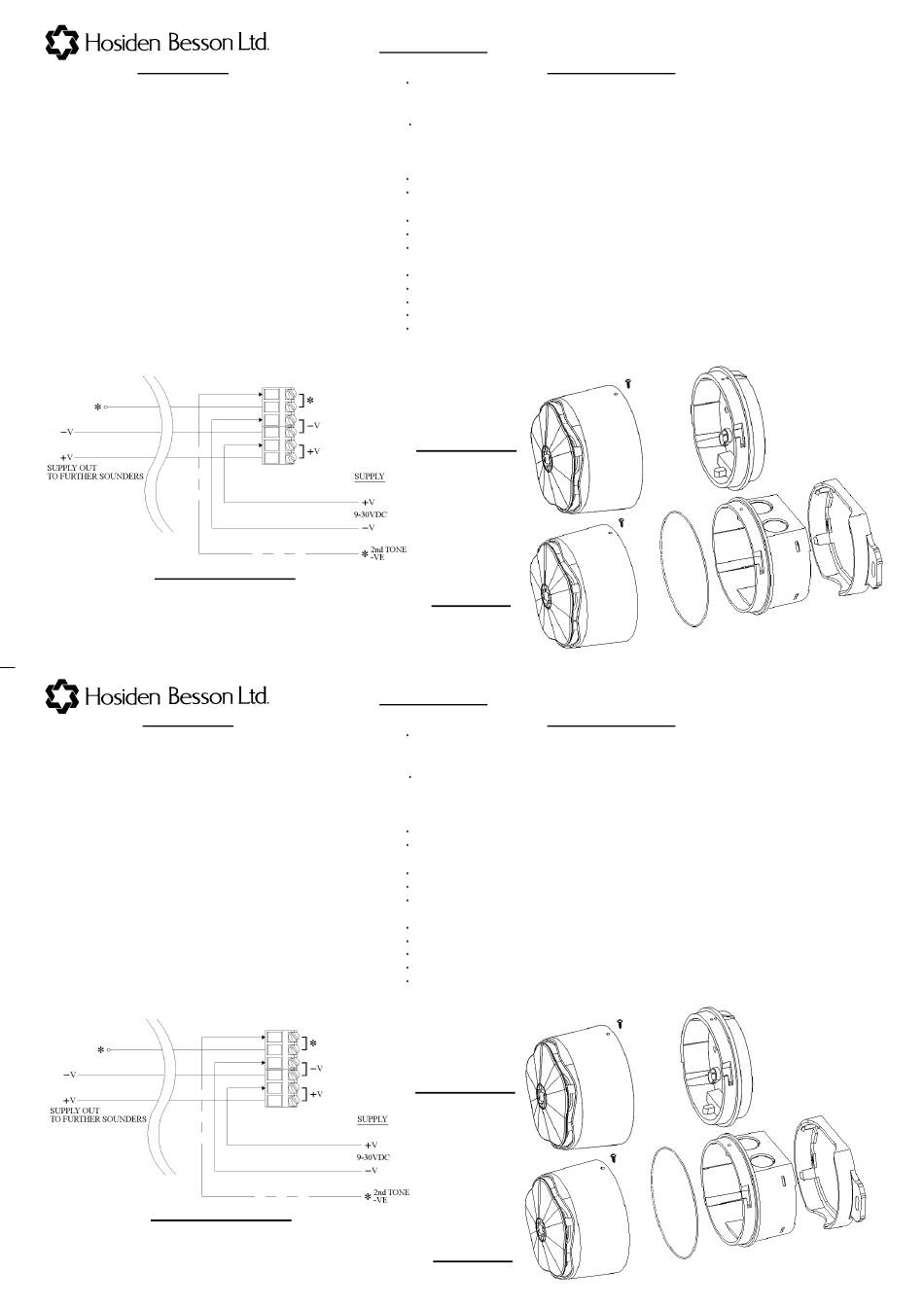

Hosiden Besson Banshee Excel Quick Start Manual

Specification.
Termination: Screw terminals for 0.28mm
2.5mm
EN54-3 Voltage Range: 24VDC (20VDC to 28VDC)
Operating Voltage Range: 9-30VDC*
Not Used Switch 6
Current Consumption: See Sound output table.
Operating Temperature: -25°C to +70°C
Synchronisation: Synchronised start.
Environment Category: Type A – Shallow Base.
Type B – Deep Base.
Second Tone: Connect *terminal to –ve.
Case Material: ABS.
IP Rating:* Shallow Base IP45.
Deep Base IP66.
Units meet minimum requirements of IP21C Shallow
Base and IP33C Deepbase in accordance with EN54-3
Connection Details
Specification.
Termination: Screw terminals for 0.28mm
2.5mm
EN54-3 Voltage Range: 24VDC (20VDC to 28VDC)
Operating Voltage Range: 9-30VDC*
Not Used Switch 6
Current Consumption: See Sound output table.
Operating Temperature: -25°C to +70°C
Synchronisation: Synchronised start.
Environment Category: Type A – Shallow Base.
Type B – Deep Base.
Second Tone: Connect *terminal to –ve.
Case Material: ABS.
IP Rating:* Shallow Base IP45.
Deep Base IP66.
Units meet minimum requirements of IP21C Shallow
Base and IP33C Deepbase in accordance with EN54-3
Connection Details
Banshee Excel
to ALL INSTALLATION TO BE CARRIED OUT BY A COMPETENT PERSON.
2
2 wire conductor
IP66 Deep Base Moulding (weatherproof).
To maintain IP rating when using a Deep Base, use wall mounting bracket Part Number:
MM08728. Do not drill fixing holes in deep base. Use suitably rated 20mm cable glands to fit
cables or conduit via side knock-outs. Fit 'O'-Ring seal between lens and base.
Non-IP66 Deep Base.
Knock out the conduit/cable gland holes in side of deep base.
Fit conduit or 20mm cable glands then screw the base to the mounting surface or BESA box
Shallow Base Moulding.
Drill mounting holes in the bottom of Base for screw fixings.
Route cable through rear hole or side knock-outs.
Screw the base to the mounting surface or BESA box.
All fixings.
Connect unit as shown in connection details (Left).
Place the Banshee Excel onto the base and turn clockwise to retain.
To remove the Banshee Excel turn unit counter-clockwise.
Where applicable, fit the security screw through the hole in the side of the lens assembly.
For optimum Ingress Protection performance the unit should be mounted either horizontally or
upside down from an overhang.
Shallow Base
Banshee Excel
to ALL INSTALLATION TO BE CARRIED OUT BY A COMPETENT PERSON.
2
2 wire conductor
IP66 Deep Base Moulding (weatherproof).
To maintain IP rating when using a Deep Base, use wall mounting bracket Part Number:
MM08728. Do not drill fixing holes in deep base. Use suitably rated 20mm cable glands to fit
cables or conduit via side knock-outs. Fit 'O'-Ring seal between lens and base.
Non-IP66 Deep Base.
Knock out the conduit/cable gland holes in side of deep base.
Fit conduit or 20mm cable glands then screw the base to the mounting surface or BESA box
Shallow Base Moulding.
Drill mounting holes in the bottom of Base for screw fixings.
Route cable through rear hole or side knock-outs.
Screw the base to the mounting surface or BESA box.
All fixings.
Connect unit as shown in connection details (Left).
Place the Banshee Excel onto the base and turn clockwise to retain.
To remove the Banshee Excel turn unit counter-clockwise.
Where applicable, fit the security screw through the hole in the side of the lens assembly.
For optimum Ingress Protection performance the unit should be mounted either horizontally or
upside down from an overhang.
Shallow Base
Installation Details.
Deep Base
Installation Details.
Deep Base
IS62 Iss D
.
IS62 Iss D
.
