Summary of Contents for ICON ProAudio AIRMICPRO

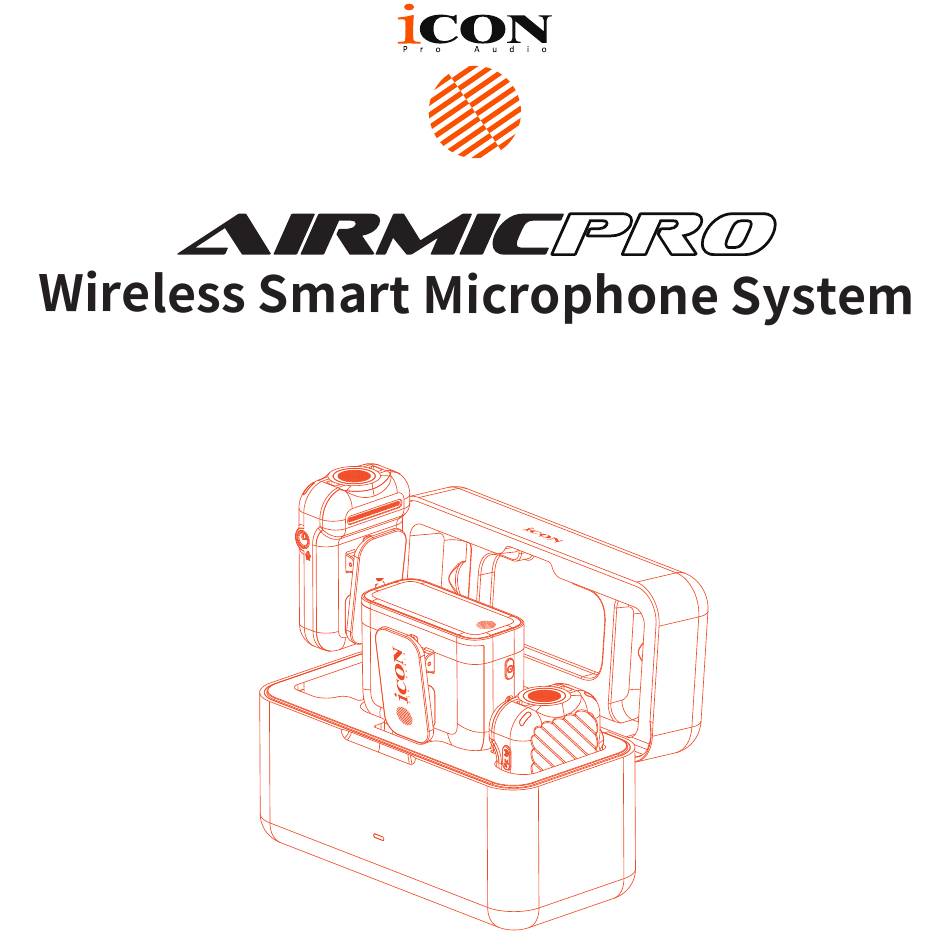

- Page 1 User Manual...
-
Page 2: What's In The Box
What's in the box Charging Case ×1 Transmitter ×2 Receiver ×1 Windscreen ×2 Charging Cable ×1 Camera Audio Cable ×1 Phone Audio Cable ×1 (3.5mm TRRS) (3.5mm TRS) Guides ×1 Warranty card ×1 Sticker ×1 Phone Adapter ×2 * The picture is only for reference, please make the object as the standard. - Page 3 Transmitter 1.Link & Noise Cancellation Button Short press to enable soft noise reduction, (yellow indicator light). Short press again for strong noise reduction, (red indicator light). Short press again to disable noise reduction, (green indicator light). Long press for 2 secs and click 'Link Device' on the receiver's screen to re-link. 2.Power &...
-
Page 4: Expansion Port
Receiver 1.Touchscreen Displays information such as the real-time volume, battery level of the receiver and transmitter, charging status wireless signal and gain Slide up or down on the screen to access settings. 2.Expansion Port For connecting to a mobile phone or a computer using a phone adapter. -
Page 5: Charging Case
Charging Case Disconnect the transmitters and receiver from the charging case USB C port. They will link automatically. Connect the transmitters and receivers to the charging case USB C port to begin charging. 1.Battery Indicator Light When charging, the indicator light will slowly blink red and change to solid green when fully charged. In a non-charging state, the indicator will display as outlined below;... -
Page 6: Operation
Operation Use with a Mobile Phone Attach the receiver to a mobile phone using the phone adapter in order to record audio on the phone. - Page 7 Operation Wear the transmitter on or near the collar. Using with a Camera To record audio and transmit to a camera, attach the receiver to a camera using the back clip and connect to the microphone port of the camera using the camera cable provided. * Lower the volume of the camera to avoid sound distortion.
-
Page 8: Touch Screen Operation
Touchscreen Operation Left Channel Right Channel (Only shown in stereo mode) (Only shown in stereo mode) Phone or Computer Receiver Connected Battery Level Screen Lock Mode Selection Connected Track Mode Battery Level Battery Level Connected TX1 Gain TX2 Gain Noise Reduction Real-time Volume Noise Reduction Real-time Volume... -
Page 9: Settings Menu
Touchscreen Operation When a transmitter is connected, slide up to enter quick settings where you can adjust noise cancellation, enable and disable mute, and adjust gain." Settings Menu Slide down or right to enter settings menu to operate and view track mode, mode selection, transmitter settings, receiver volume, phone speaker, system settings, etc. -
Page 10: Specifications
Specifications Device Name Item Transmitter Receiver Charging Box X1TX X1RX X1CHGR Model Dimensions 49 X 32 X 20mm (including clip） 108 X 52 X 68mm 49 X 37 X 29mm (including clip） 159g Weight Battery 660mAh 3000mAh 200mAh Capacity Operating Fully charge three devices 8 hours 8 hours... -
Page 11: Safety Precautions
Safety Precautions IMPORTANT: THIS PRODUCT CONTAINS MAGNETS. Please also keep device/s such as magcards, IC cards, hard disks, RAM chips, and other such devices away from the AirMiC Pro device/s to avoid interference and potential damage. 2. DO NOT listen at a high volume for an extended period using monitor earphones. Other- -wise, you may experience possible hearing damage. - Page 12 天猫官方旗舰店 抖音号 哔哩哔哩 微信公众号 官方售后QQ B站iCONProAudio 4006311312.114.qq.com 天猫店艾肯旗舰店 抖音iCON艾肯 微信号iCON-PRO 中国地区用户 Twi�er Instagram Facebook Youtube www.twi�er.com/iconproaudio www.instagram.com/iconproaudio www.facebook.com/iconproaudio www.youtube.com/iconproaudio Support Dashboard Website www.iconproaudio.com support.iconproaudio.com iconproaudio.com/dashboard/...
