Summary of Contents for Buchi Pure DAS / Dry Air Supply

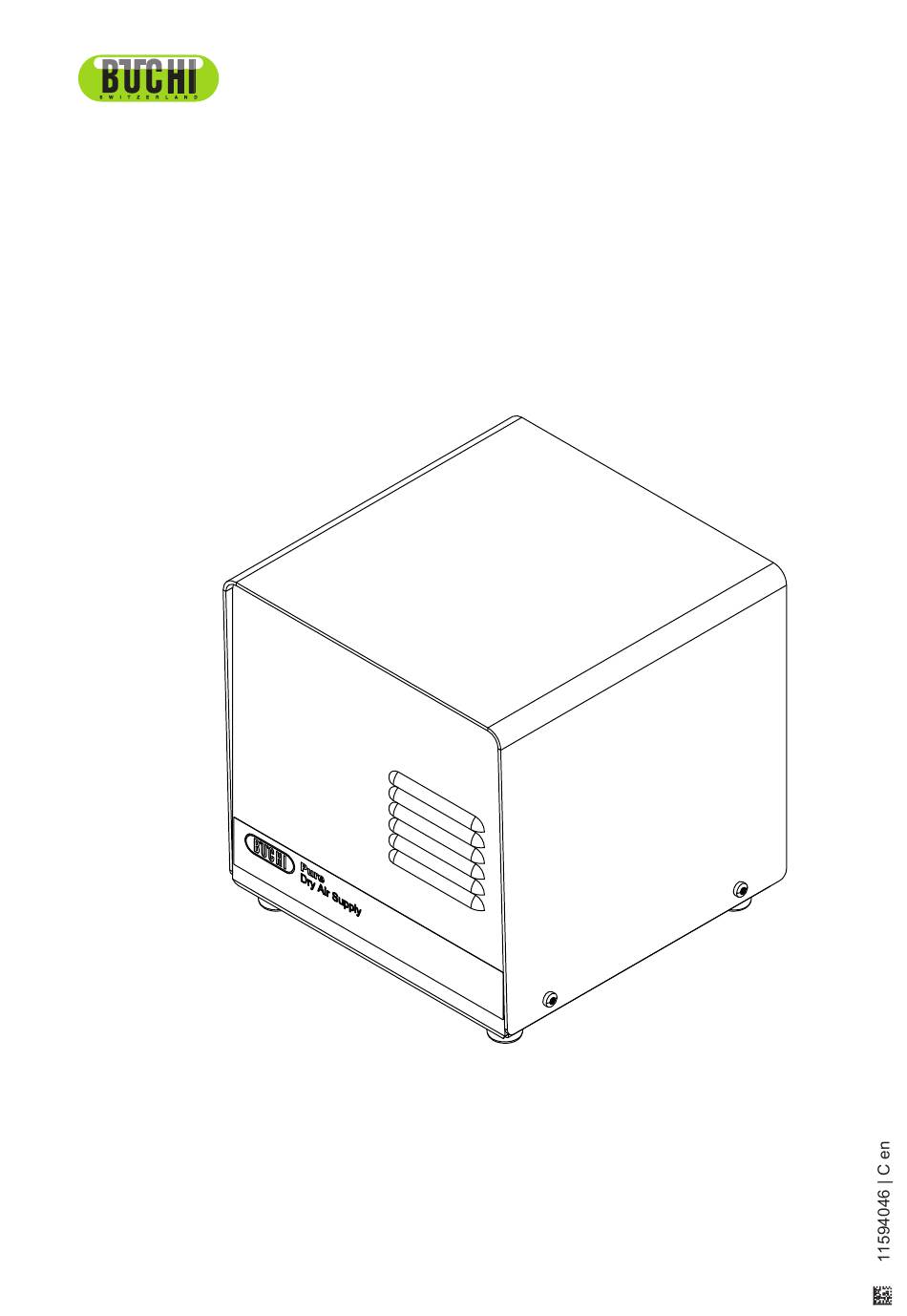

  • Page 1 Pure DAS / Dry Air Supply Operation Manual...
  • Page 2 CH-9230 Flawil 1 E-Mail: quality@buchi.com BUCHI reserves the right to make changes to the manual as deemed necessary in the light of experi- ence, especially with respect to structure, illustrations and technical details. This manual is copyrighted. Information from it may neither be reproduced, distributed, or used for com- petitive purposes, nor made available to third parties.

  • Page 3: Table Of Contents

    Rear view .......................... 10 3.2.3 Type plate .......................... 10 Scope of delivery .......................... 11 Technical data ...........................  11 3.4.1 Pure DAS / Dry Air Supply .....................  11 3.4.2 Ambient conditions.........................  12 3.4.3 Materials .......................... 12 Transport and storage ...................... 13 Transport ............................ 13 Storage ..............................
  • Page 4 Taking out of service and disposal..................  21 Taking out of service..........................  21 Disposal .............................  21 Returning the instrument ........................ 21 Appendix .......................... 22 10.1 Spare parts and accessories ...................... 22 10.1.1 Spare parts .......................... 22 Operation Manual Pure DAS / Dry Air Supply...

  • Page 5: About This Document

    R This character draws attention to a requirement that must be met before the in- structions below are carried out. This character indicates an instruction that must be carried out by the user. Operation Manual Pure DAS / Dry Air Supply 5/24...

  • Page 6: Connected Devices

    Trademarks Product names and registered or unregistered trademarks that are used in this docu- ment are used only for identification and remain the property of the owner in each case. 6/24 Operation Manual Pure DAS / Dry Air Supply...

  • Page 7: Safety

    — Safety-related incidents that occur while using the device should be reported to the manufacturer (quality@buchi.com). BUCHI service technicians Service technicians authorized by BUCHI have attended special training courses and are authorized by BÜCHI Labortechnik AG to carry out special servicing and repair measures.

  • Page 8: Location Of Warning Signs On The Product

    Technical modifications to the device or accessories should only be carried out with the prior written approval of BÜCHI Labortechnik AG and only by authorized BUCHI technicians. BUCHI accepts no liability whatsoever for damage arising as a result of unauthorized modifications. 8/24...

  • Page 9: Product Description

    BÜCHI Labortechnik AG Product description | 3 Product description Description of function The Dry Air Supply supplies particle free dry air for BUCHI instruments. Configuration 3.2.1 Front view Fig. 2: Front view Ventilation inlet Basis Operation Manual Pure DAS / Dry Air Supply...

  • Page 10: Rear View

    Power supply connection On/Off master switch 3.2.3 Type plate The type plate identifies the instrument. The type plate is located at the rear side of the instrument. See Chapter 3.2.3 "Type plate", page 10 10/24 Operation Manual Pure DAS / Dry Air Supply...

  • Page 11: Scope Of Delivery

    Dimension (W x D x H) 204 x 210 x 210 mm Weight 4.8 kg EMC Class Control voltage 12 VDC Output at atm. pressure 15 L/min Max. operating pressure 7 bar Operation Manual Pure DAS / Dry Air Supply 11/24...

  • Page 12: Ambient Conditions

    Housing Aluminum 5052 with powder coating Base Polypropylene and Satopren RMS 42 Screws Stainless steel Protection shield Thermocarbonband ROM12 Connecting pieces Nickel-plated brass, POM, NBR, stain- less steel Entry module Thermoplastic 12/24 Operation Manual Pure DAS / Dry Air Supply...

  • Page 13: Transport And Storage

    After storage, check the device, all seals and tubing for damage and replace if necessary. Lifting the instrument NOTICE Dragging the instrument can damage the feet of the instrument. Lift the instrument when positioning or re-locating. Operation Manual Pure DAS / Dry Air Supply 13/24...

  • Page 14: Installation

    1. Provide the mains voltage and frequency specified on the type plate of the instru- ment. 2. Be designed for the load imposed by the instruments connected. 3. Be equipped with suitable fuses and electrical safety features. 4. Be equipped with proper earthing. 14/24 Operation Manual Pure DAS / Dry Air Supply...

  • Page 15: Connecting The Instrument With A Chromatography System

    Risk of property damage and diminished performance due to use of un- suitable power cables. The power supply cables supplied with the product by BUCHI precisely match the re- quirements of the device. If other power cables that do not meet those requirements are used, the device may be damaged and/or its performance diminished.
  • Page 16 BÜCHI Labortechnik AG Connect the tubing with the instrument. Use the connection DRAIN. Place the other end of the tubing in an aque- ous waste container located lower than the in- strument. 16/24 Operation Manual Pure DAS / Dry Air Supply...

  • Page 17: Operation

    ð The instrument is ready to use. All functions of the instrument are controlled by the Chromatography system soft- ware. Shutting down the instrument Switch the On/Off master switch to Off. Operation Manual Pure DAS / Dry Air Supply 17/24...

  • Page 18: Cleaning And Servicing

    Any servicing and repair work which involves opening up the casing may only be car- ried out by BUCHI service technicians. Use only genuine BUCHI consumables and spare parts in order to ensure correct operation of the device and preserve the warranty.

  • Page 19: Help With Faults

    A failure in carrying out this operation can result in death or serious injury. Only suitably qualified personnel should carry out this operation. Disconnect the power cord before replacing the fuse. Operation Manual Pure DAS / Dry Air Supply 19/24...
  • Page 20 Replace the fuse drawer. Make sure the fuse inserts into the fuse slot on the right side of the fuse block. The correct slot has a metal contact inside the fuse block. 20/24 Operation Manual Pure DAS / Dry Air Supply...

  • Page 21: Taking Out Of Service And Disposal

    When disposing, observe the disposal regulations of the materials used. Materials used see Chapter 3.4 "Technical data", page 11 Returning the instrument Before returning the instrument, contact the BÜCHI Labortechnik AG Service Depart- ment. https://www.buchi.com/contact Operation Manual Pure DAS / Dry Air Supply 21/24...

  • Page 22: Spare Parts And Accessories

    Appendix 10.1 Spare parts and accessories Use only genuine BUCHI consumables and spare parts in order to ensure correct, safe and reliable operation of the system. NOTE Any modifications of spare parts or assemblies are only allowed with the prior written permission of BUCHI.
  • Page 24 T +971 4 313 2860 T +52 55 9001 5386 F +66 2 862 08 54 F +971 4 313 2861 latinoamerica@buchi.com bacc@buchi.com middleeast@buchi.com www.buchi.com/es-es www.buchi.com/th-th www.buchi.com We are represented by more than 100 distribution partners worldwide. Find your local representative at: www.buchi.com...
