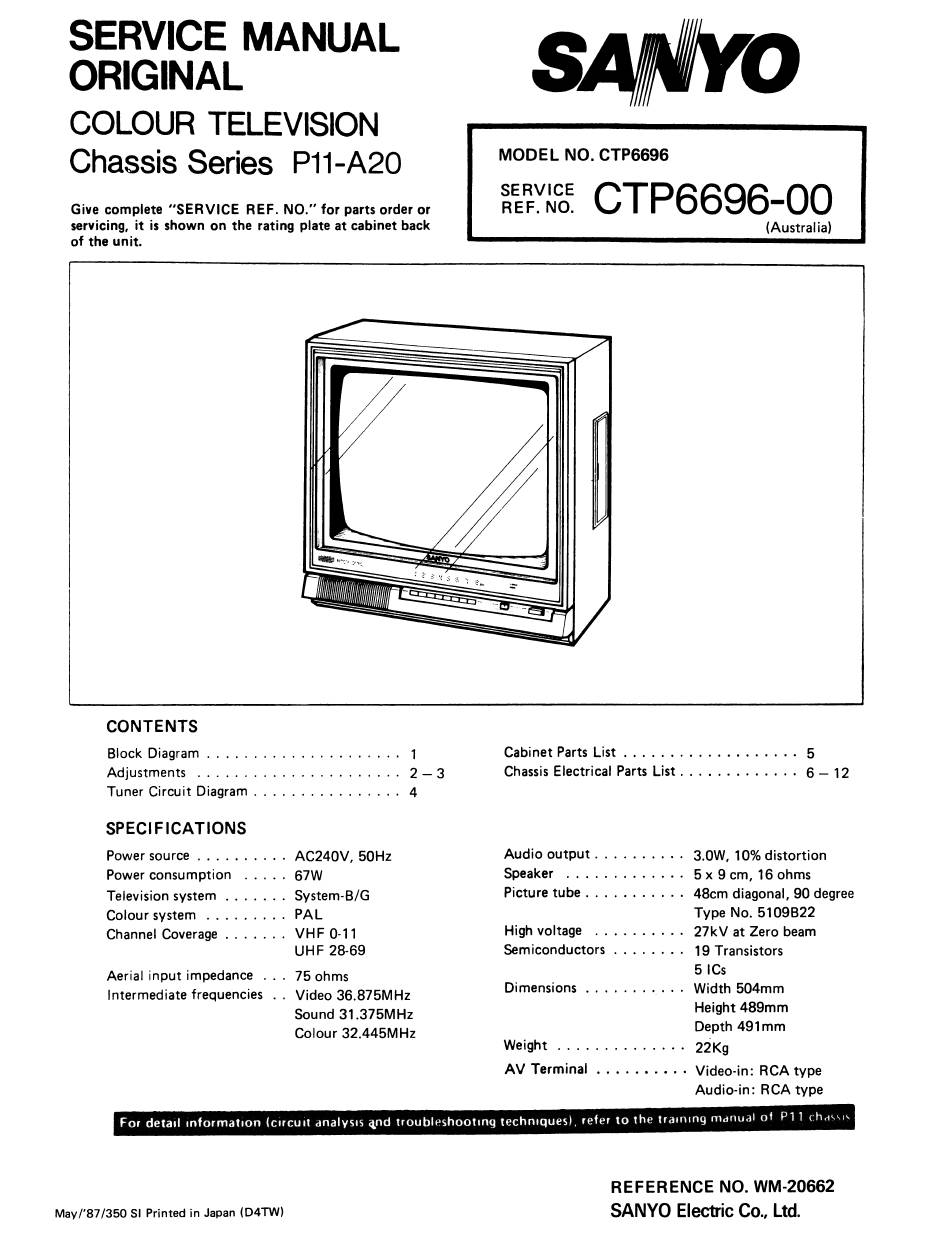

Sanyo CTP6696 Service Manual

SERVICE MANUAL
ORIGINAL
COLOUR TELEVISION
Chassis Series P11-A20
MODEL NO. CTP6696
SERVICE C 6 6
Give complete "SERVICE REF. NO." for parts order or REF. NO. TP6 9 -OO
servicing, it is shown on the rating plate at cabinet back (Australia)
of the unit.
CONTENTS
Block Diagram .. 1... 0... 0... eee eee 1 Cabinet Parts List ..........0 002 ewes 5
Adjustments ....... 0.0000 e eee eee 2-3 Chassis Electrical Parts List............. 6—12
Tuner Circuit Diagram .............2.20. 4
SPECIFICATIONS
Power source .......... AC240V, 50Hz Audio output.......... 3.0W, 10% distortion
Power consumption ..... 67W Speaker ...........6- 5 x 9cm, 16 ohms
Television system ....... System-B/G Picture tube........... 48cm diagonal, 90 degree
Coloursystem .........
PAL
Type No. 5109B22
Channel Coverage ....... VHF 0-11
High voltage
..........
27kV at Zero beam
UHF 28-69 Semiconductors ........ 19 Transistors
Aerial input impedance ... 75 ohms 5 ICs
Intermediate frequencies .. Video 36.875MHz
Dimensions ........ +++
Width 504mm
Sound 31.375MHz Height 489mm
Colour 32.445MHz Depth 491mm
Weight .............4. 22Kg
AV Terminal .......... Video-in: RCA type
Audio-in: RCA type
REFERENCE NO. WM-20662
May/'87/350 SI Printed in Japan (D4TW) SANYO Electric Co., Ltd.
