AQG-10007-02
M400B Cabinet
Quick Start Installation Guide
Description
The M400B is designed for pole mounting applications and the mounting
hardware will accommodate varying applications and pole types. Pole
installations should be on a minimum nine inch wood, metal, or concrete
type pole. The pole mounting bracket can accommodate bolts, stainless
steel strapping or a combination of both.
Required Hardware/Equipment (for
Bolted Installations)
•
17mm socket with extension for the bolts that attach the cabinet to
the mounting bracket.
•
Two 1/2" diameter machine bolts (UNC thread); SAE (Grade 5 or
better), length to suit the pole (not provided)
•
Two 1/2" diameter (I.D.) zinc-plated flat washers
•
Two 1/2" diameter (I.D.) hex nuts (UNC thread)
•
Auger or drill for boring 9/16" diameter holes in the wood pole
Installation
MOUNT THE CABINET
1. Remove the mounting bracket from the enclosure and use it as
a template to drill 2 holes into the pole. Follow local practices for
drilling the holes.
2. Secure the mounting bracket to the pole with the specified
machine bolts.
3. Hook the top of the mounting bracket under the enclosure
attachment fitting.
4. Secure the cabinet to the mounting bracket.
5. As an option, you can use utility grade stainless steel pole straps
to thread through the provided slots up to 2 1/2" wide with a
minimum of 3 (of the wide type) if this is the primary support.

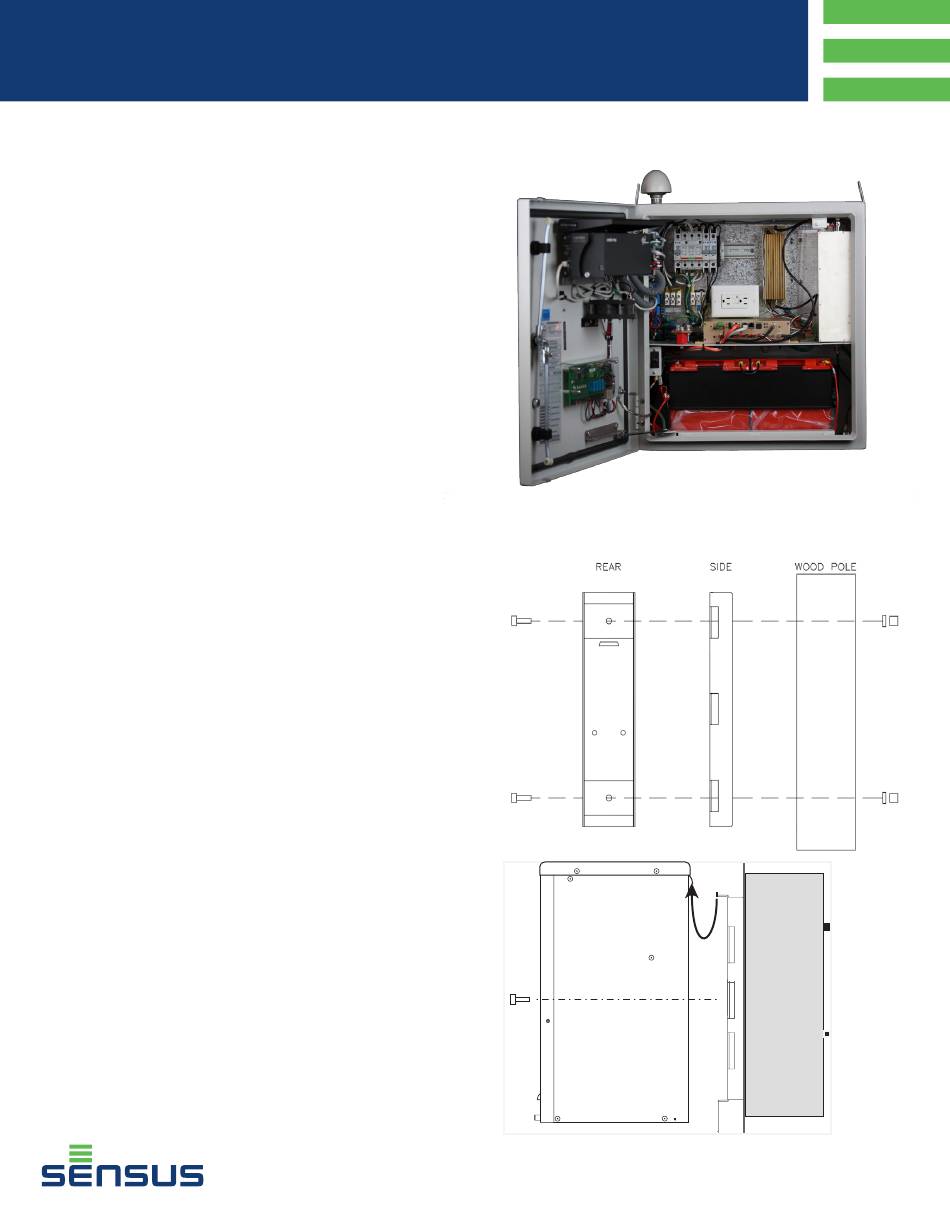

Figure 1: Cabinet Mounting
