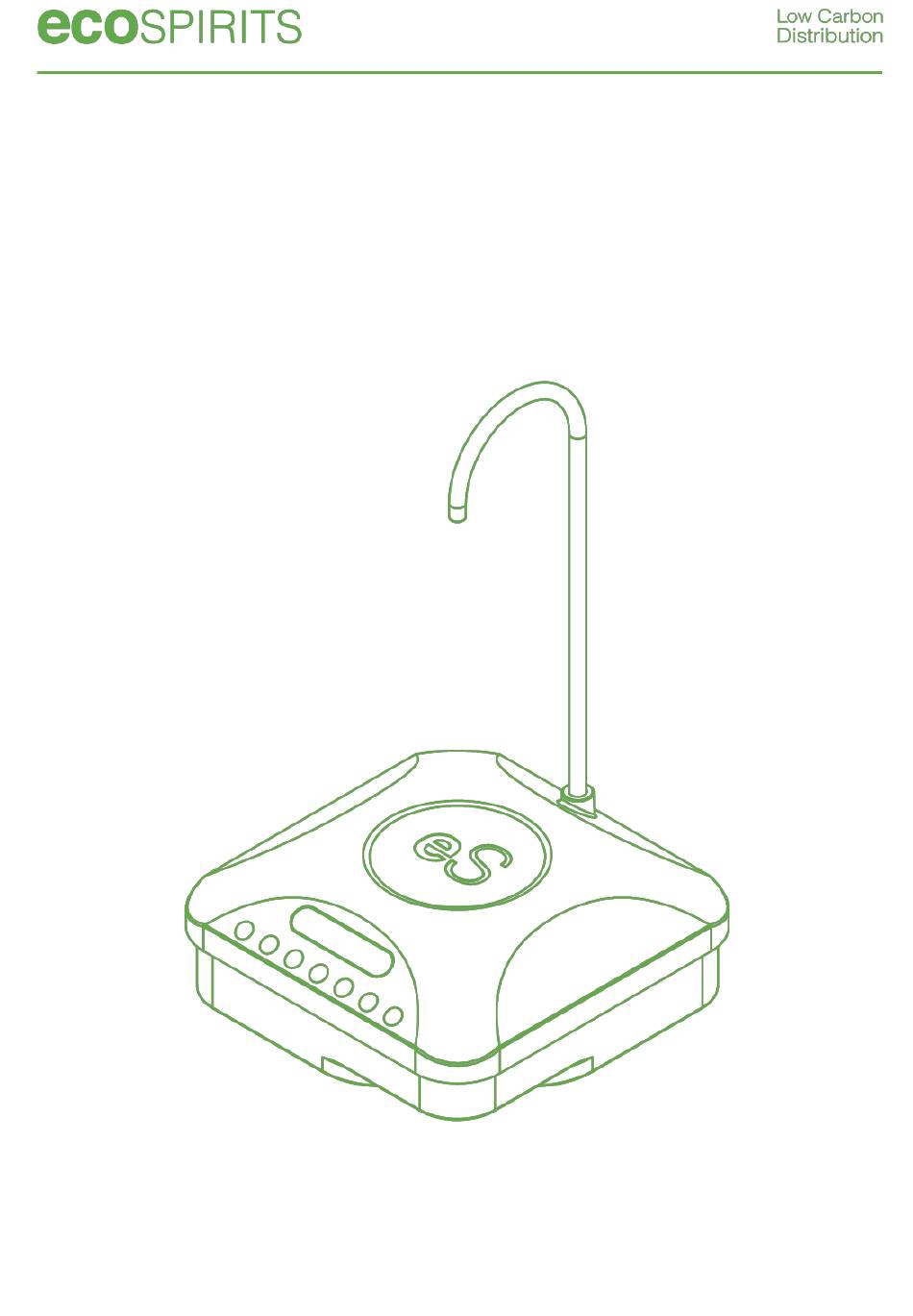

- Page 1 SmartPour 1.1S Plus Operating Guide...
-
Page 2: Safety Guidelines
Safety Guidelines This appliance is only to be used for its intended purpose, and with all applicable laws, rules, and regulations. This appliance can be used by persons if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 3: Table Of Contents
SmartPour 1.1S Plus Operating Guide Rev_00 Safety Guidelines .................................. 2 SmartPour Introduction ............................. 4 SmartPour Accessories .............................. 5 SmartPour Display Screen & Keypad ........................6 SmartPour Display Description ..........................7 SmartPour Specifications & Features ........................8 Registering Your SmartPour ............................. 8 Setting Up your Dispense Volume Buttons. -
Page 4: Smartpour Introduction
The purpose of this Operating Guide is to provide you with the necessary steps and instructions to operate your SmartPour 1.1S Plus safely and sanitarily. This Operating Guide covers the key steps involved in registering, cleaning, and using of the SmartPour 1.1S Plus. -
Page 5: Smartpour Accessories
SmartPour Accessories Please ensure that the following items are included in with your SmartPour 1.1S Plus. Please store your unit and its accessories in a clean, dry, and accessible location between use. 1 x SmartPour 1.1S Plus 1 x Stainless Steel Dispense Nozzle... -
Page 6: Smartpour Display Screen & Keypad
SmartPour Display Screen & Keypad Your SmartPour 1.1S Plus features a back-lit LCD Display Screen and a touch-sensitive User Keypad to allow the user to conveniently operate all key functions. SmartPour Screen & Keypad Remaining ecoTOTE CircularONE Pouring Volume ecoTOTE Volume... -
Page 7: Smartpour Display Description
SmartPour Display Description SmartPour Screen Display Description Cleaning Mode Indicator will appear only when cleaning mode is activated Indicator Remaining ecoTOTE Displays the volume of liquid remaining in the ecoTOTE Volume Pouring Volume Indicator will display the selected dispense volume and measuring unit ecoTOTE Indicator Indicator will appear only when NFC enable ecoTOTE is... -
Page 8: Smartpour Specifications & Features
Google Play and in the App store. Ensure that the SmartPour 1.1S Plus is fully charged before the registration steps. To charge, plug your SmartPour 1.1S Plus into wall power using the USB-C Charging Cable provided. - Page 9 Step 7 - Input your Wi-Fi SSID and password into the fields on the ecoSPIRITS SmartPour Pairing App. Tap on “Next” Step 8 – It will take around 30s to be connected. Step 1 Step 2 Step 3 Step 6...
-
Page 10: Setting Up Your Dispense Volume Buttons
SmartPour Pairing App Method: Upon Successful registration of your SmartPour 1.1S Plus, the SmartPour Pairing App will allow you to select the measurement units (mL / US – oz / UK – oz) and customize the dispense volume (Button 1 -5 Volume) Step 1 –... -
Page 11: Cleaning Your Smartpour
O-ring breakage. Step 3 – Assembly of Inlet Tube Connect the Inlet Tube to the bottom of the SmartPour 1.1S Plus via push fit. Ensure that the end of the tube without any attachments is used for this connection. -
Page 12: Using Your Smartpour
Turn on the SmartPour 1.1S Plus by pressing on the User Keypad. Check your unit is fully charged. Ensure the Inlet Tube is properly connected. Inspect your SmartPour 1.1S Plus to ensure it is clean and ready for use. Step 2 – ecoTOTE Loading Ensure the ecoTOTE you wish to dispense is filled, sealed and undamaged. -
Page 13: Smartpour Calibration
10. SmartPour Calibration Each SmartPour 1.1S Plus unit has been pre-calibrated at the factory as part of the quality control process. However, if you notice that your SmartPour 1.1S Plus unit is starting to show significant deviation from selected dispense volume, a recalibration might be required. -
Page 14: Troubleshooting Guide
Troubleshooting Guide To identify a problem with a SmartPour 1.1S Plus follow the troubleshooting measures below: The SmartPour does not turn on Malfunction Symptom Using ONLY the provided charging cable, make sure the unit is being charged by confirming the charging indicator is lit up on its display screen. - Page 15 Remove unit from service and utilize another unit if available until SmartPour can be repaired or replaced. Please contact us at techsupport@ecospirits.global for remote support. Place order for FOC replacement SmartPour with your ecoSPIRITS supplier if under warranty. Malfunctioning unit to be sent back for ecoSPIRITS diagnostics and repair.
-
Page 16: Release History
12. Release History Date Originator Description of Change 27 Feb 2024 Alan McQuillan Update for SmartPour 1.1S Plus For more information, please contact techsupport@ecospirits.global...
