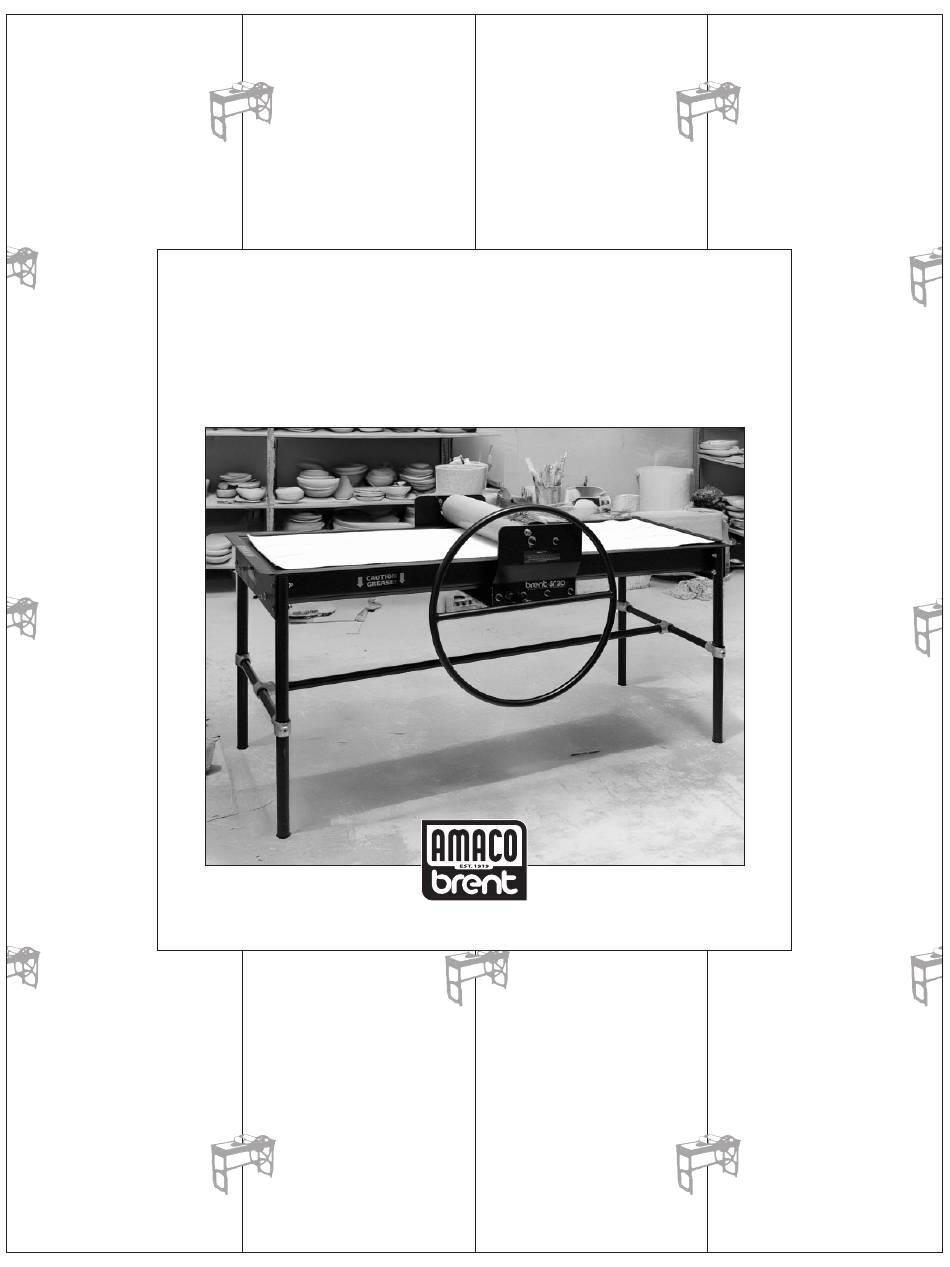

- Page 1 ® SLAB ROLLERS 6060 Guion Road • Indianapolis, Indiana 46254-1222 USA 800-374-1600 • 317-244-6871 • www.amaco.com...
- Page 2 Dear Customer, We hope you enjoy your new brent® slab roller. Many different people are involved in the fabrication and manufacturing of each brent® product. We all work together to build the best equipment possible. These sturdy machines are constructed of heavy gauge steel pipe and plate, precision machined parts, permanently sealed bearings, and aircraft quality cables.
- Page 3 Welcome to the AMACO Brent Family! Thank you for making the decision to explore ceramic art through an AMACO Brent product! We know you will enjoy many years of creative exploration from your equipment. To maximize your experience the following resources are available to assist you at any time: The Manual - This manual provides tips and F.A.Q.s about your new product.
-
Page 4: Maintenance
BRENT® MODEL MINI SRC SET UP: 1. Lift machine out of box. The legs can be easily screwed in by hand. 2. Bolt the wooden crank handle to the crank arm with the lock-nut. Your machine is now ready for use. USE: 1. - Page 5 BRENT® MODEL MINI SRC TOP ROLLER (D) FRAME (H) SNAP RING TO REWIND CABLES, START WITH THIS CABLE AT THIS END OF MACHINE. SET OF FOUR CABLES (J) BOTTOM ROLLER (I) CABLE ADJUSTMENT CABLE BOLT CABLE BOLT ADJUSTMENT PLATE SRC PARTS LIST Stock # Description # Per 22668G Leg Set...
- Page 6 BRENT® MODEL SRC SET UP: 1. Lift machine out of box. If you have purchased the leg set, the legs can be easily screwed in by hand. 2. Bolt the wooden crank handle to the crank arm with the nut and lock-nut. Your machine is now ready for use. USE: 1.
- Page 7 BRENT® MODEL SRC SRC PARTS LIST Stock # Description # Per 22668G Leg Set Opt. 22657B Cable, One Only 22694N Cable, Set of 4 22654R Handle, Wood 22651M " Shim 22650L " Shim w/Canvas 1 22652N " Shim 22649K Top Canvas...
- Page 8 BRENT® MODEL SRC/ MINI SRC SUPPLEMENTAL HANDLE INSTALLATION INSTRUCTIONS 8:00-5:00 M-F...
- Page 9 brent® S RC R ound H andle I nstallation BRENT® MODEL SRC ROUND HANDLE INSTALLATION 1. Remove t he w ooden h andle f rom t he S RC c rank a rm b y r emoving t he c ap-‐nut. 2.
- Page 10 BRENT® MODEL SR-14 SET UP: 1. Remove all cardboard crating and cut plastic bands. Roll carriage to one end of the slab roller, pull the heavy top canvas out from under the roller, and roll it up on itself and tape it to the outside of the frame. This will keep the canvas out of your way and off the greasy cables. Now remove the masonite shims and wood bed.
- Page 11 BRENT® MODEL SR-14 SMALL PARTS LEG SET ONLY TIP: SR-14 PARTS LIST SMALL PARTS Leg Caps WW13 Use a " wrench or socket to Stock # Description # Per -18 x Set Screws " 18 x 2 Bolts remove leg bots if needed. 22620A Leg Set Opt.
- Page 12 BRENT® MODEL SR-20 SET UP: 1. Remove all cardboard crating and cut plastic bands. Roll carriage to one end of the slab roller, pull the heavy top canvas out from under the roller, and roll it up on itself and tape it to the outside of the frame. This will keep the canvas out of your way and off the greasy cables. Now remove the masonite shims and wood bed.
- Page 13 BRENT® MODEL SR-20 SR-20 PARTS LIST Stock # Description # Per 22256A Set of Cables 22353X Handle, Painted 22527R " Shim w/Canvas 1 22526P " Shim 22150P Top Canvas...
-
Page 14: Special Notes
HOW TO USE THE BRENT® SRC, SR-14, SR-20 To use the slab roller, crank SRC (or turn the wheel on SR-14 and 20) to move the top roller all the way to the end of the machine where the heavy top can- vas is attached to the bed. -
Page 15: For Your Safety
dry shim every few slabs without having to wait for one to dry. With extra can- on top. The slab will be sandwiched between the boards. Take the two boards vas shims you can also remove the slab and the top shim together then put in between your hands and flip them over using enough pressure in your hands another shim which will allow you to use the slab roller continuously. - Page 16 BRENT® SLAB ROLLER CABLE REPLACEMENT INSTRUCTIONS MODELS SR-14 AND SR-20...
- Page 17 BRENT® SLAB ROLLER CABLE REPLACEMENT INSTRUCTIONS MODELS SR-14 AND SR-20...
- Page 18 BRENT® SLAB ROLLER CABLE REPLACEMENT INSTRUCTIONS MODELS SR-14 AND SR-20...
- Page 19 BRENT® SLAB ROLLER CABLE REPLACEMENT INSTRUCTIONS MODELS SR-14 AND SR-20...
- Page 20 BRENT® SLAB ROLLER MAINTENANCE LOG Keep track of any maintenance you perform on your slab roller.
- Page 21 BRENT® SLAB ROLLER MAINTENANCE LOG Keep track of any maintenance you perform on your slab roller.
- Page 22 BRENT® SLAB ROLLER MAINTENANCE LOG Keep track of any maintenance you perform on your slab roller.
-
Page 23: Warranty Registration
Contact the dealer from which you If it is necessary to ship equipment or parts purchased your equipment. Parts and labor to AMACO/brent for inspection, repair or INSTRUCTIONS will be covered for valid warranty claims. replacement, the technician will explain... - Page 24 American Art Clay Co., Inc. 6060 Guion Road • Indianapolis, Indiana 46254-1222 USA 800-374-1600 • 317-244-6871 • www.amaco.com 11965A...
