FASTMOUNT TEXTILE TC Series Installation Manual

TEXTILE TC RANGE
TC-F6H & TC-M6 INSTALLATION GUIDE
TC-F6H & TC-M6
TC-F6H
INSTALLATION STEPS

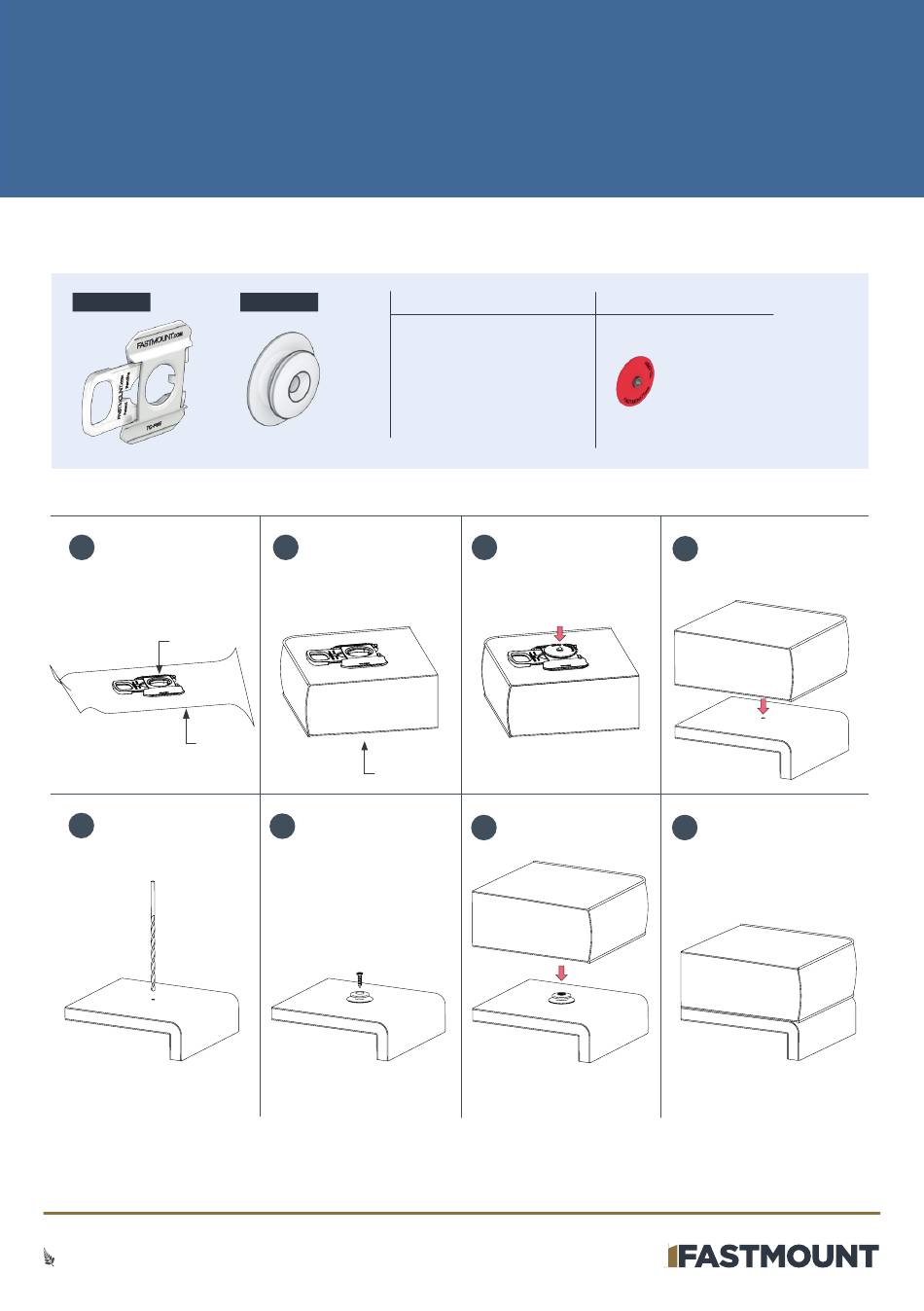

INSTALLATION STEPS:
1
Sew TC-F6H to fabric
using 110/18 needle
and V92 size thread
along stitch groove.
TC-F6H
Fabric
5
Drill on mark.
PROUDLY DESIGNED IN NEW ZEALAND
117 | FASTMOUNT TECHNICAL GUIDE 2024
Textile Clip Range
USE WITH:
TC-M6
Upholstery sewing machine
using standard foot, size
110/18 needle and V92
thread.
#6 screw
2
Complete cushion
assemby.
Cushion
Screw TC-M6 onto
6
base using #6 gauge
CSK screw.
Subject to change without notice.
Version: TC-F6H/M6 - 06/24. Copyright © Fastmount Ltd.
INSTALL WITH:
TC-CP6H
3
Insert TC-CP6H into
TC-F6H. Press slider to
hold TC-CP6 in place
Align cushion
7
with TC-M6.
fastmount.com
Align cushion and
4
press firmly on mounting
surface.
Press cushion into place.
7
To engage, slide lock
away from cushion edge,
to disengage, pull lock
towards edge.
