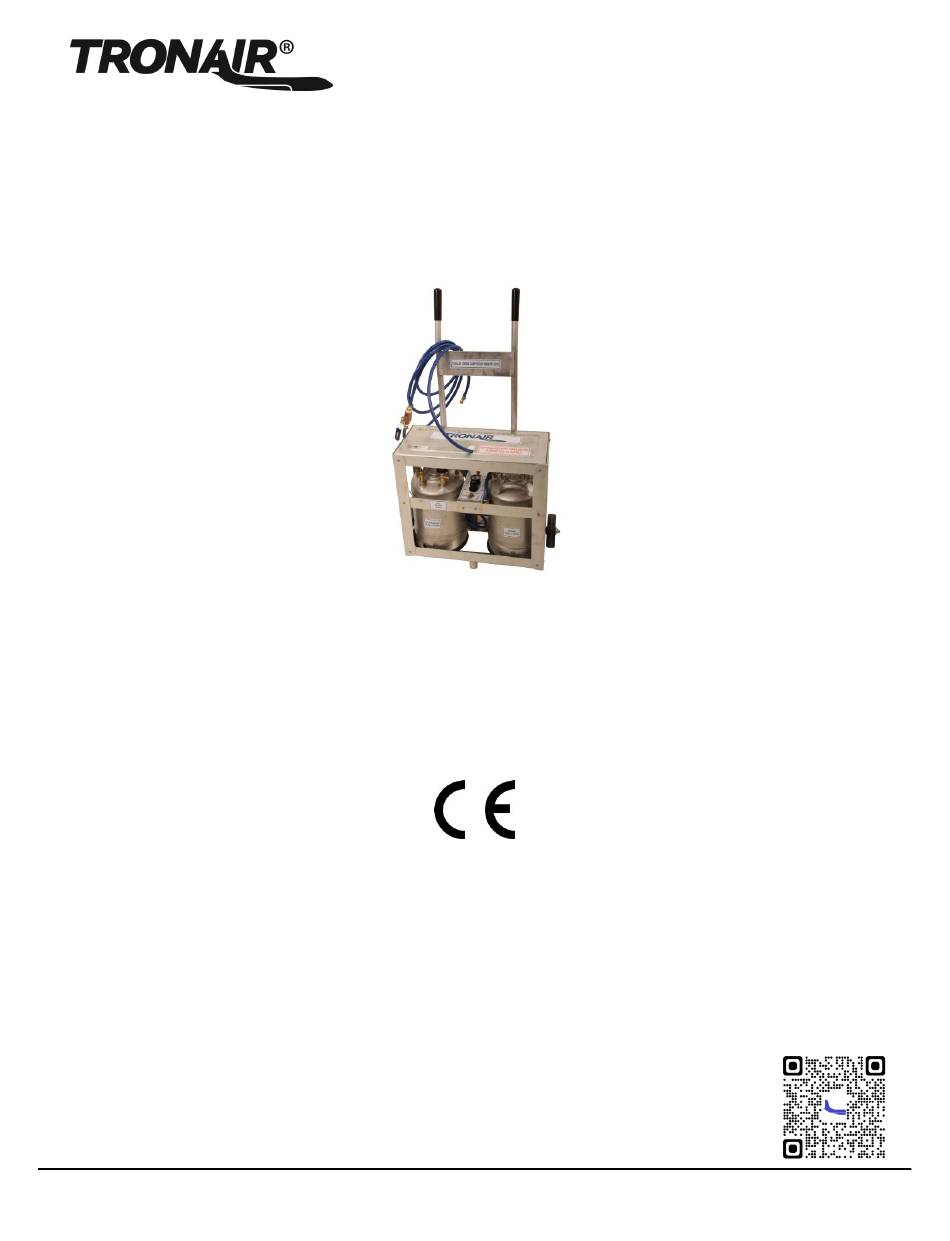

OPERATION & SERVICE MANUAL
Model: 08-4060-6700
3 Gallon
Engine Compressor Washer
08/2022 - Rev. 05
For Spare Parts, Operations & Service Manuals or Service Needs
Scan the QR code or visit Tronair.com/aftermarket
Tronair, Inc.
Phone: (419) 866-6301 | 800-426-6301
1 Air Cargo Pkwy East
Web: www.tronair.com
Swanton, OH 43558
Email: sales@tronair.com
Advertisement
Table of Contents
Related Manuals for Tronair 08-4060-6700
Summary of Contents for Tronair 08-4060-6700
- Page 1 3 Gallon Engine Compressor Washer 08/2022 - Rev. 05 For Spare Parts, Operations & Service Manuals or Service Needs Scan the QR code or visit Tronair.com/aftermarket Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 01/2009 Original Release 01/2012 Major revision 07/2014 Modified Parts List 06/2021 Major revision 08/2022 Modified 1.5 Specifications...
-
Page 3: Table Of Contents
Model: 08-4060-6700 3 Gallon Engine Compressor Washer TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 STANDARD FEATURES ............................ 1 SPECIFICATIONS .............................. 1 SAFETY INFORMATION ..............................2 USAGE AND SAFETY INFORMATION ......................2 TRAINING .................................. -
Page 4: Product Information
3 Gallon Engine Compressor Washer This product cannot be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., its suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. -
Page 5: Safety Information
Model: 08-4060-6700 3 Gallon Engine Compressor Washer SAFETY INFORMATION USAGE AND SAFETY INFORMATION To insure safe operations please read the following statements and understand their meaning. Also refer to your equipment manufacturer’s manual for other important safety information. This manual contains safety precautions which are explained below. -
Page 6: Operation
Model: 08-4060-6700 3 Gallon Engine Compressor Washer OPERATION WARNING! Personal injury may result if procedures are not followed! NEVER open fluid tank while under pressure. NEVER pressurize air tank more than 125 psi. CAUTION! Use only clean water and/or cleaning fluids approved by engine manufacturer. -
Page 7: Pneumatic And Hydraulic Schematic
Model: 08-4060-6700 3 Gallon Engine Compressor Washer 5.1.4 Pneumatic And Hydraulic Schematic 06/2021 | Rev. 04 Page | 4... -
Page 8: Maintenance & Storage
GUARANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the... -
Page 9: Parts List
Model: 08-4060-6700 3 Gallon Engine Compressor Washer Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. 11 12 13 Item Part Number Description H-1550-12 Snaplock Hose Clamp U-1002 Wheels, 6 inch diameter G-1100-109526 Bolt, ½... - Page 10 Model: 08-4060-6700 3 Gallon Engine Compressor Washer Parts List - Control Panel Assembly When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description H-1397 Regulator HC-1831 Gauge, Pressure 0-160 psi PC-1072 Valve, Three-Way Ball ¼...
- Page 11 Model: 08-4060-6700 3 Gallon Engine Compressor Washer Parts List - Clean Tank Assembly When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description H-1216 Vessel, Pressure PC-1017-02-150 Valve, Safety (150 psi) Z-6929...
- Page 12 Model: 08-4060-6700 3 Gallon Engine Compressor Washer Parts List - Rinse Tank Assembly When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description H-1216 Vessel, Pressure PC-1017-02-150 Valve, Safety (150 psi) H-1529-01...
- Page 13 Model: 08-4060-6700 3 Gallon Engine Compressor Washer Parts List - Filter Assembly When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description H-2792 Filter, Output N-2210-08-B Reducer, Pipe Thread N-2410-02 Elbow, 90º Male...
- Page 14 Model: 08-4060-6700 3 Gallon Engine Compressor Washer Parts List - Output Hose Assembly When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description TF-1064-04*180 Hose, ¼ ID N-2412-05 Connector, Straight Male N-2210-08-B...
- Page 15 APPENDIX I Declaration of Conformity...
-
Page 17: Declaration Of Conformity
Email: tronair@rauh-hydraulik.de Product Type: Powerplant Washing Equipment Product Name: Engine Compressor Washer Model Number (s): 08-4060-6700 Serial Number (s): Relevative directives complied with by the vessels: 2014/68/EU 2014/29/EU Relevative standards complied with by the assembly: EN ISO 12100:2010 Identification of person empowered to sign on behalf of the Manufacturer:...
