User Manual
VL-1
Flying bracket
Please read this user manual through carefully before using
the VL-1 flying bracket and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VL-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fohhn VL-1

  • Page 1 User Manual VL-1 Flying bracket Please read this user manual through carefully before using the VL-1 flying bracket and keep it for future reference.

  • Page 2: General Information

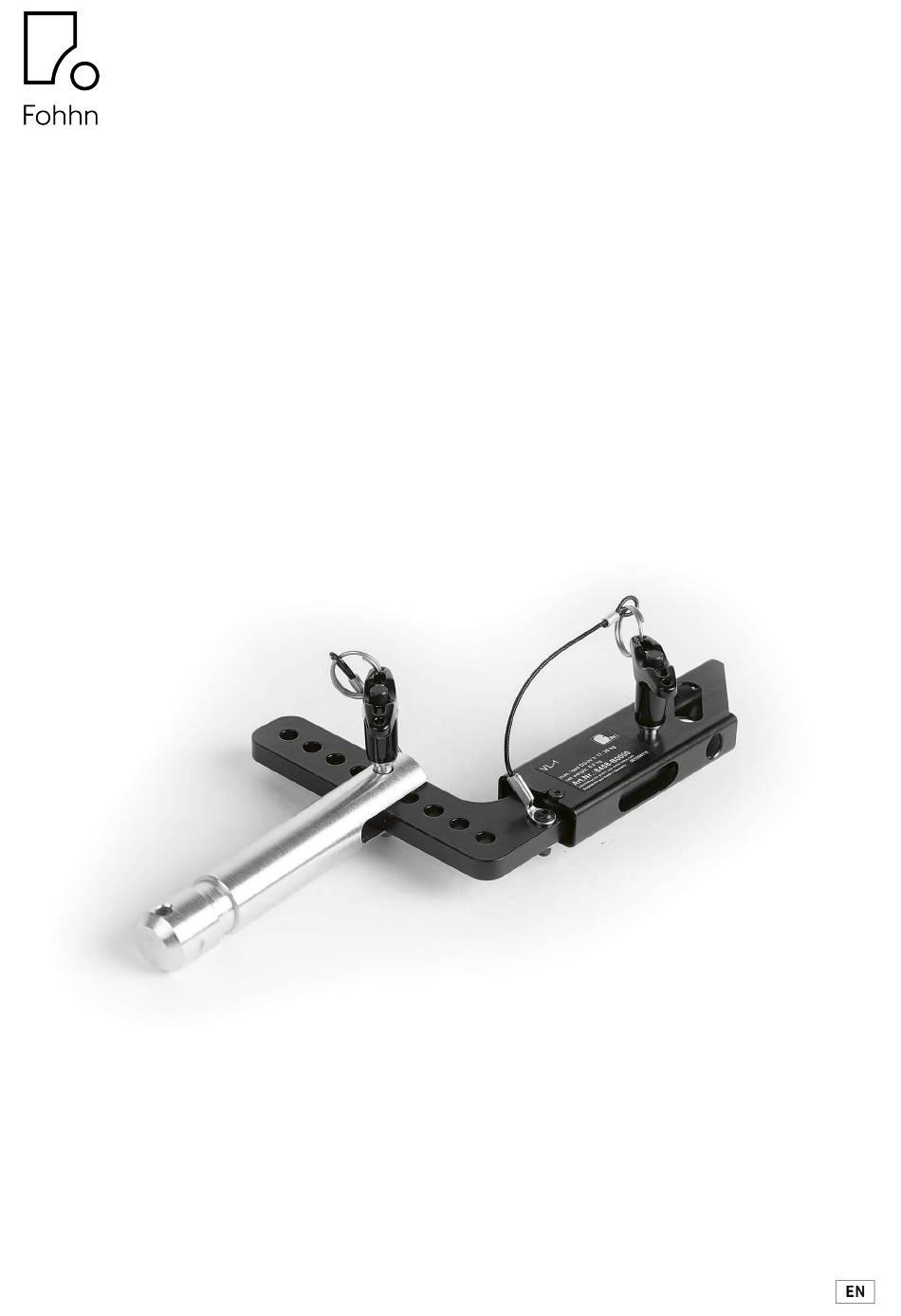

    1. General information The flying bracket VL-1 allows to rig a variety of Fohhn speakers to truss structures and is designed to be used with couplers and clamps with a 28mm TV-spigot receptive. It provides plenty of possible pick points to adjust the tilting angle of the speaker mechanically and allows for rotating it 360°...
  • Page 3 VL-1 flying bracket must never be exceeded. For the proper load capacity, please refer to the label attached to the VL-1 flying bracket.

  • Page 4: Scope Of Delivery

    (e.g. with unsuitable packaging). If necessary, please contact your Fohhn dealer and the transportation company immediately. Contact details can be found in the appendix to this user manual. 3. Scope of delivery...
  • Page 5 4. Tilting with VL-1 The VL-1 flying bracket allows to tilt a variety of Fohhn speakers, in many cases even upwards. The flying rail may be mounted forward-facing to get small downward or upward angles and straight alignment or backward-facing to get wider downward angles.
  • Page 6 6. Secondary safety It is necessary to apply a secondary safety to the VL-1 mounting bracket. There are several ways to attach a safety to the VL-1 as shown in the pictures below. Choose one. Caution! Ensure, that all components used for secondary safety will carry the total weight of the loudspeaker system, if the main suspension breaks.

  • Page 7: Technical Specifications

    8.2 CE marking and Declaration of Conformity This product complies with the currently applicable EU legislation and as such carries the CE marking. The relevant Declarations of Conformity are available on request from Fohhn Audio AG, 72622 Nürtingen...

  • Page 8: Contact Address

    Fohhn Audio AG therefore reserves the right to make changes or additions to the given information at any time. Neither Fohhn Audio AG (as a public limited company), nor its Executive Board or employees take any responsibility for direct or indirect damage, including loss of profit, which arises as a result of, or in connection with, the information in this manual.
