Sony RM-X2001 Service Manual

Be Sc ae
hee = RR Se

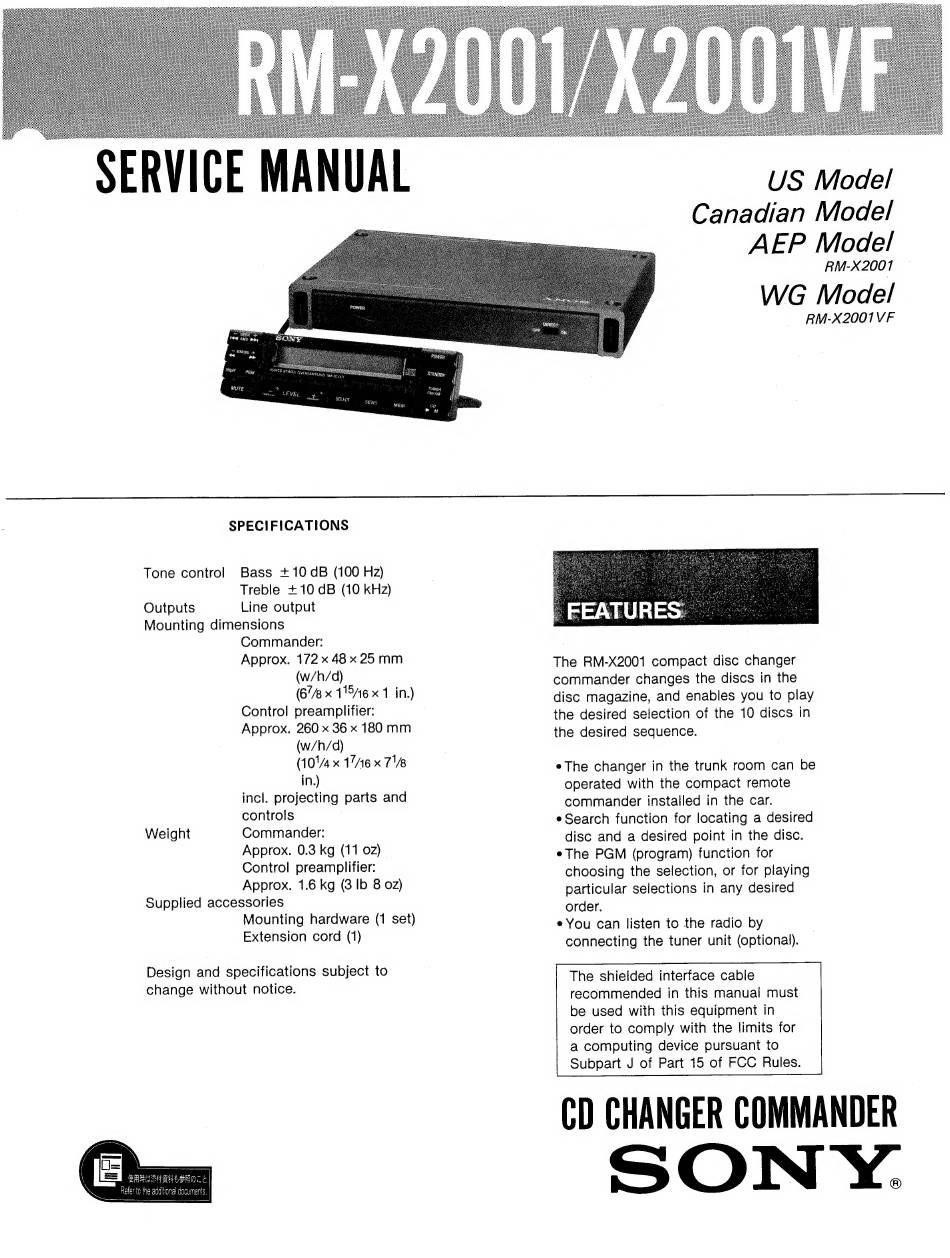

SERVICE MANUAL
SPECIFICATIONS
Tone control Bass +10 dB (100 Hz)
Treble +10 dB (10 kHz)
Outputs Line output
Mounting dimensions
Commander:
Approx. 172 x 48 x 25 mm
(w/h/d)
(67 x 115/16 x 1 in.)
Control preamplifier:
Approx. 260 x 36 x 180 mm
(w/h/d)
(101% x 17/16 x 71/8
in.)
incl. projecting parts and
controls
Commander:
Approx. 0.3 kg (11 02)
Control preamplifier:
Approx. 1.6 kg (3 Ib 8 02)
Supplied accessories
Mounting hardware (1 set)
Extension cord (1)
Weight
Design and specifications subject to
change without notice.
US Model
Canadian Model
AEP Model
RM-X2001
WG Model
RM-X2001VF
The RM-X2001 compact disc changer
commander changes the discs in the
disc magazine, and enables you to play
the desired selection of the 10 discs in
the desired sequence.
eThe changer in the trunk room can be
operated with the compact remote
commander installed in the car.
e Search function for locating a desired
disc and a desired point in the disc.
¢The PGM (program) function for
choosing the selection, or for playing
particular selections in any desired
order.
¢ You can listen to the radio by
connecting the tuner unit (optional).
The shielded interface cable
recommended in this manual must
be used with this equipment in
order to comply with the limits for
a computing device pursuant to
Subpart J of Part 15 of FCC Rules.
CD CHANGER COMMANDER
SONY.
