BaByliss PRO FXONE LO-PRO Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LO-PRO CLIPPER
FX829U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FXONE LO-PRO and is the answer not in the manual?

Questions and answers

Related Manuals for BaByliss PRO FXONE LO-PRO

Summary of Contents for BaByliss PRO FXONE LO-PRO

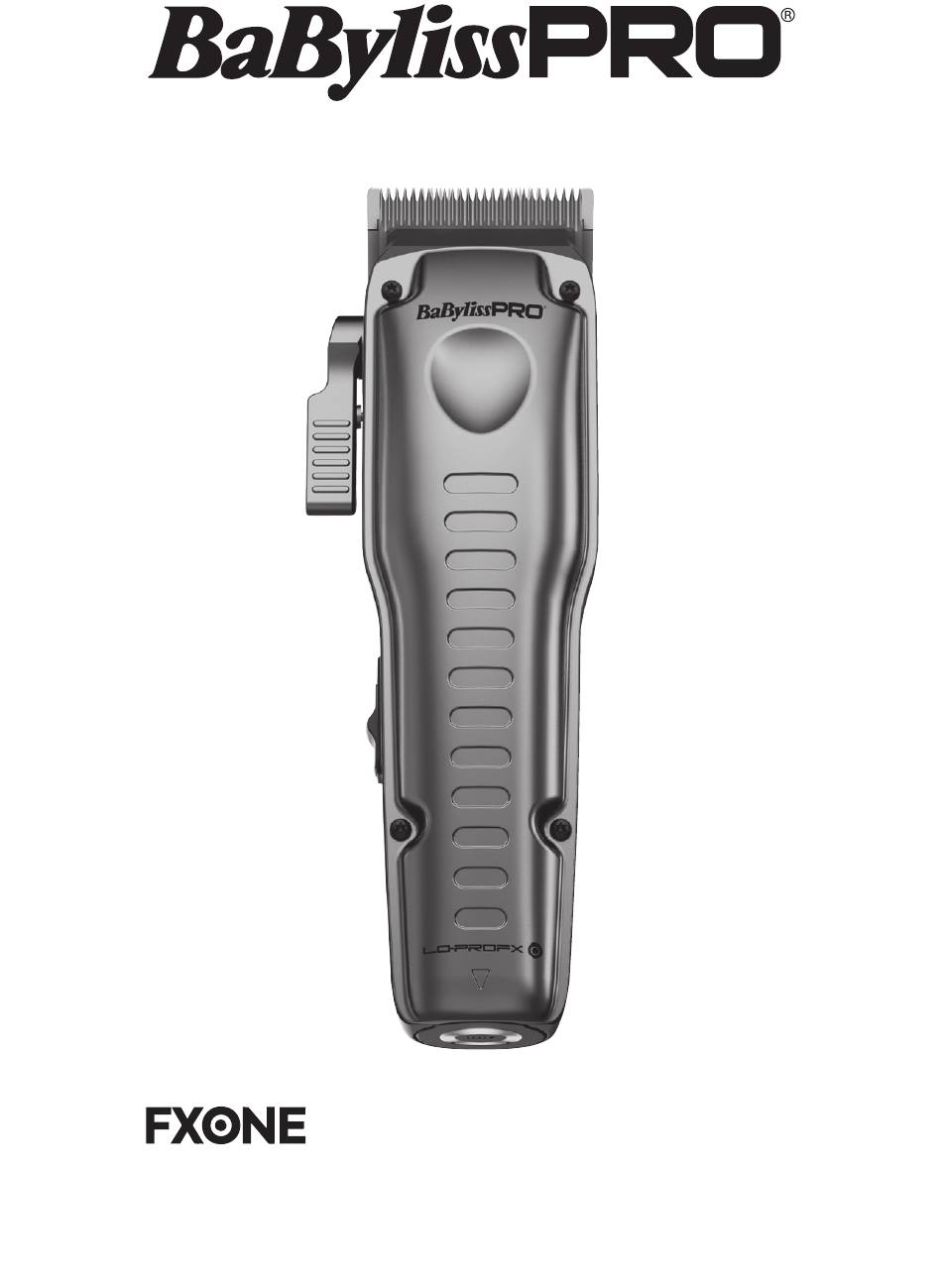

  • Page 1 LO-PRO CLIPPER FX829U...

  • Page 3: Safety Cautions

    FXONE Model: FX829U SAFETY CAUTIONS • Original instructions. Read these safety precautions carefully before using the unit! This appliance should only be used as described within this instruction booklet. Please retain for future reference. IMPORTANT CHILD SAFETY • ALWAYS keep out of the reach of very young children (during and after use).
  • Page 4 dangerous even if the appliance is switched off. For additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice. •...
  • Page 5 • Do not leave the appliance plugged in for more than 24 hours. • Unplug immediately if any problems occur during use. • Do not place the appliance on any surface whilst in operation. • Special care is required when using the appliance close to the ears, eyes and face.
  • Page 6 WEEE - END-OF-LIFE ELECTRICAL AND ELECTRONIC EQUIPMENT In everybody’s interest and to actively participate in protecting the environment and human health: • Do not discard your products with your unsorted household wastes. • The WEEE (Waste electrical and electronic equipment) must be collected separately.

  • Page 7: Technical Data

    TECHNICAL DATA USB-C adaptor CA88M adaptor CA78M Vibrations < 2.5 m/s² LpA (dB(A)) < 70 ON/OFF SWITCH To operate, simply slide switch to ON (marked «I»). To stop operation, set to the OFF (marked «0») position. Make sure the switch is in the OFF (“0”) position when the clipper is not being used.

  • Page 8: Important Note

    Fig. 2 REPLACEMENT (REMOVAL) OF BLADE SET Step 1. Unplug the unit and adjust the taper (see position in illustration Plastic Oscillator Plastic Oscillator Taper Taper Small Small Moving Moving Blade Blade Step 2. Remove the screws and the fixed blade. Save the screws. Step 3.

  • Page 9: Blade Sharpening

    BLADE SHARPENING BaBylissPRO cutting blades are ground from the finest quality graphite and are hardened to extend the cutting performance. As with any cutting appliance, the cutting edges become dull from repeated use. Increasing blade tension to force the blade cutting would cause the clipper to overheat and reduce its motor life.

  • Page 10: Battery Removal And Installation

    BATTERY REMOVAL AND INSTALLATION The FX829U clipper features a removable, rechargeable, and interchangeable battery, so you can cut and style for extended amounts of time with minimal interruption. Be sure clipper is in the OFF (“0”) position before removing or installing the battery. 1.

  • Page 11: Disposal Of Lithium-Ion Batteries

    DISPOSAL OF LITHIUM-ION BATTERIES 1. The batteries for this clipper set are protected in a plastic housing. 2. Press the battery release button and pull battery housing out of clipper 3. No further disassembly of the battery unit is required. 4.
  • Page 12 CHARGING STAND INSTRUCTIONS The FXONE Universal Battery Charging Stand can be powered by either the universal FXCORD (not included) or a USB-C adaptor. To use a USB-C adaptor: Connect the USB-C adaptor to the USB-C port at the back of the FXONE Universal Battery Charging Stand, then insert the battery into the charger.

  • Page 13: Battery Charge-Level Indicator

    BATTERY/CHARGING INDICATOR (TOP OF FXONE BATTERY) Blue flashing – Charging Blue solid – Charged (see charge levels below) • The charging stand may become warm while charging. This is normal. • Preserving the battery: In order to maintain the optimum capacity of the rechargeable battery, it should be recharged for 3 hours approximately every 6 months.
  • Page 14 If the clipper is to be stored unused for a long period, the FXONE Universal Battery should be removed. UK GUARANTEE This BaByliss PRO appliance is guaranteed for professional use for 2 years and is only valid within the United Kingdom. Exclusions...

  • Page 15: Uk After Sales Service

    It is important to retain your proof of purchase. We recommend attaching your receipt to this page. Even where a refund may be applicable, no refund will be provided without a valid receipt or proof of purchase, we will only be able to offer a repair or replacement service.

  • Page 16: Safe Disposal

    Please enclose your returns number, name and address details, together with a copy of proof of purchase and details of the fault. Please note this Instruction Booklet is not the guarantee. SAFE DISPOSAL symbol on the product or on its packaging indicates that this product may not be treated as household waste.
  • Page 17 UKCA DECLARATION OF CONFORMITY In accordance with UK Government guidance We, the undersigned, take full responsibility for the product’s compliance. Type of product : Clipper Type number : T183a Trademark : BaBylissPRO / Conair / CPL With following characteristics : Unit : 3.6VDC, 8.71Wh (2.42Ah) / 3.6VDC, 11.88Wh (3.3Ah) Charging stand: 4.5VDC, 1.2A, 5.4W / 5.0VDC, 2.0A, 10.0W Adaptor : 100-240V~, 50-60Hz, 4.5VDC, 1.2A, 5.4W / 5.0VDC, 2.0A, 10.0W...
  • Page 20 IB-24/035...

This manual is also suitable for:

Fx829u
