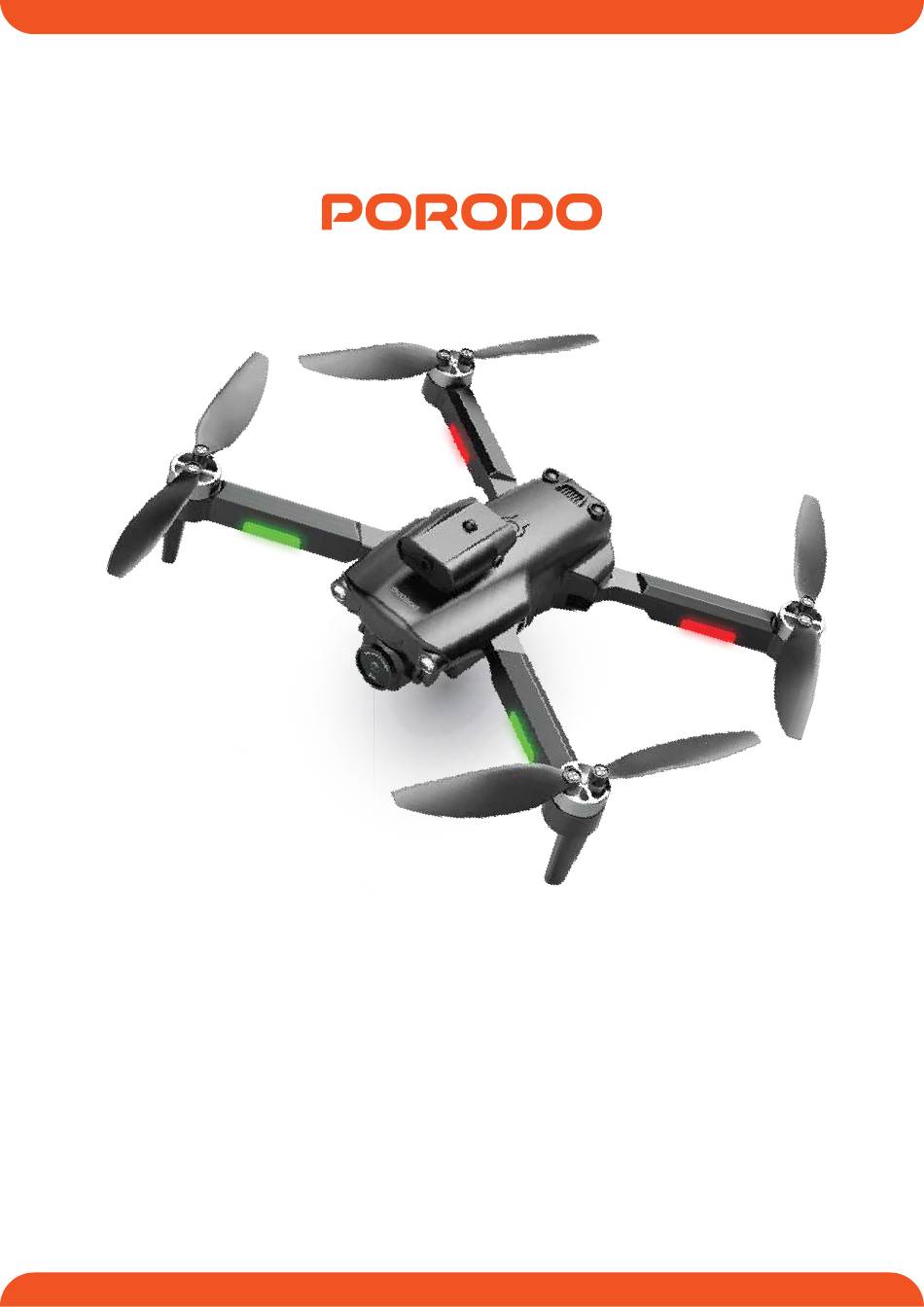

- Page 1 Porodo AEROSWIFT Drone SKU: PD-DRNFBM...
-
Page 2: Table Of Contents
Table of Contents Overview Features Specifications Package Contents Precautions Remote Control Schematic View Remote Control Battery Installation Charging the Drone Pre-flight Preparation Pairing the Drone Drone Control Instructions Calibrating Drone’s Gyroscope One Key Takeoff & Landing Headless Mode Rollover Mode Speed Adjustment One Key Return Emergency Stop Function... -
Page 3: Overview
Overview Thank you for purchasing the Porodo Aeroswift drone. This remote-controlled drone is specially designed for outdoor use. To ensure you achieve the best results, please read this user manual thoroughly before operation. Keep this manual in a safe place for future reference. -
Page 4: Specifications
Specifications Battery Li-ion 3.7 V 700mAh - 4* AAA for Controller (Not Included) Charging Time About 110-120 minutes by USB cable Flight Time About 7mins Operation Distance 40-50 meters FPV Distance 50-80 meters Maximum Speed 7Km/h Motor Type 1503 Brushless Motor Unfolded Size 21×21×7cm Folded size... -
Page 5: Precautions
Precautions Do not allow children or those unable to operate the drone safely to use it without supervision. Only individuals aged 14 and older who have sufficient experience should operate the drone. Keep all small parts and accessories out of reach of children to prevent choking hazards. -
Page 6: Remote Control Schematic View
Remote Control Schematic View Emergency Stop Indicator lights Speed Switch Rollover Mode/Obstacle (3 Speed Modes) Avoidance (Press and hold) Directional Control Joystick (forward, Joystick (Ascend/Descend backward/shiftleft/shift right) /Turn left/Turn right) Power Button Take Off/Landing Forward Headless Mode Right Calibration Backward Left One Key Return Remote Control Battery Installation... -
Page 7: Charging The Drone
Warning Avoid mixing rechargeable and non-rechargeable batteries, as well as newand old batteries, to prevent performance issues and potential damage. Properly dispose of exhausted batteries according to your local municipality's regulations to ensure environmental safety. If the remote control will not be used for an extended period, remove the batteries to prevent damage or leakage. -
Page 8: Pre-Flight Preparation
Allow the drone to cool down for at least 30 minutes after use before charging. Charging a hot battery can lead to damage. Remove the battery from the drone when not in use and store it in a cool, dry place. -
Page 9: Drone Control Instructions
Repeat the calibration process a few times until the remote control successfully connects with the drone. Execute the above steps each time before flying to ensure proper connection between your remote control and drone. Notes: When powered on, the drone's indicator lights will flash. The light will stop flashing and maintain a steady glow once the drone is synchronized with the remote. -
Page 10: Calibrating Drone's Gyroscope
Calibrating Drone’s Gyroscope Calibrate your drone’s internal gyroscope to ensure a smooth and stable flight. Before starting the calibration process, place your drone on a flat and stable surface. Press the calibration button on your remote control. The drone's LED lights will begin to flash rapidly. -
Page 11: Rollover Mode
Note This feature is especially useful for beginners, as it allows for easier control and navigation by aligning the drone's movements with your perspective at all times. Rollover Mode The drone is equipped to perform a 360° roll in the air. Ensure the drone is at least 5 meters above the ground before initiating a roll to maintain safety. -
Page 12: Speed Adjustment
Activate the roll by pressing the Rollover Mode button on your remote control. Push the directional lever upwards to the maximum extent to commence the forward roll. After the drone completes its roll, release the directional lever to allow it to return to the center position. Speed Adjustment Cycle through the drone's speed settings by pressing the Speed Control button. -
Page 13: Adjusting Trim
Adjusting Trim Use the indicated buttons on your remote control to fine- tune the drone's alignment if it appears to be tilting or drifting. Press the appropriate buttons to adjust the drone's orientation until it flies level and straight. Propeller Guard Installation To install the propeller guards, attach each guard to the corresponding mount on the drone as illustrated in the diagram below. - Page 14 Connection Settings: Turn on the power switch of the product. Open your mobile phone’ s settings, activate WiFi, find "Flow-xxxxx" in the WiFi search list, and click 'Connect' until the connection is successful. Open the app and click the "start" icon to access the real-time interface. Various functions are displayed in the figure below: 3D Split Screen...
-
Page 15: Warranty
Products that you buy directly from our Porodo website or shop come with a 24-month warranty. When you buy Porodo products from any of our approved sellers, you only get a 12-month warranty. If you want to extend this warranty, go to our website at porodo.net/warranty...
