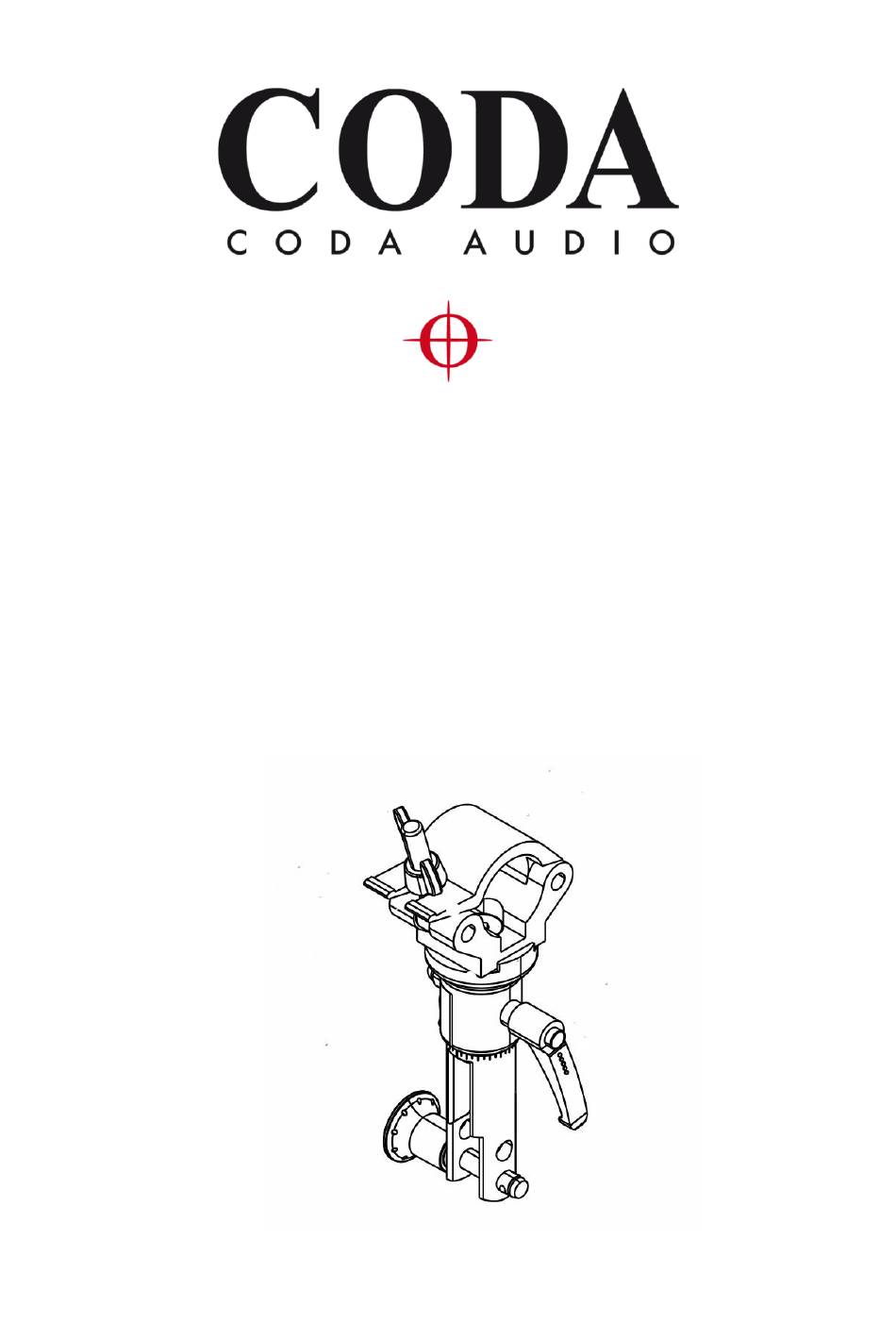

- Page 1 Operation Manual Vario Clamp...
-
Page 2: Table Of Contents
CODA Audio Vario Clamp Operation Manual v1.0 Contents Description..........................3 Parts and weight ........................4 Intended Use ..........................5 Safety precautions........................5 Hazards ............................5 Installation ..........................7 Operation ..........................10 pg. 2... -
Page 3: Description
CODA Audio Vario Clamp Operation Manual v1.0 1. Description Vario Clamp is a general truss clamp for AiRAY, CiRAY, ViRAY, N-RAY, TiRAY, APS, N-APS frames and extension bar. WLL 500kg! pg. 3... -
Page 4: Parts And Weight
CODA Audio Vario Clamp Operation Manual v1.0 2. Parts and weight Vario Clamp consists of the following parts (see the table below). Net weight: 2.250 kg (4.96 lb). pg. 4... -
Page 5: Intended Use
Prior to mounting the Vario Clamp, make sure that the metal farm resp. the frame is stable and the fixing points are suitable and capable of withstanding the load of Vario Clamp and all the frames and loudspeakers mounted to it. - Page 6 CODA Audio Vario Clamp Operation Manual v1.0 Note: there is a hazard related to injuries due to falling of heavy loads or collapsing structure! pg. 6...
-
Page 7: Installation
CODA Audio Vario Clamp Operation Manual v1.0 6. Installation Note: Each adjustment should be carried out one by one! Do not perform more than a single adjustment at a time! Prior to horizontal or radial alignment, make sure that all the other components are properly and tightly locked! Step 1. - Page 8 CODA Audio Vario Clamp Operation Manual v1.0 When Half Coupler is in its open position, Vario Clamp can be lifted and placed on the metal farm intended for mounting the construction. Step 3. Close and lock the two parts of the Half Coupler enclosing the pipe, respectively the metal farm.
- Page 9 CODA Audio Vario Clamp Operation Manual v1.0 Step 4. Screw the wingnut tightly. Make sure the construction is well fixed and stable! Check thoroughly! pg. 9...
-
Page 10: Operation
7.1. Horizontal Half Coupler alignment 1. To correctly position the Vario Clamp, loosen slightly the wingnut but do not fully unscrew it! Move the Vario Clamp horizontally on the pipe. Note: While adjusting the horizontal position of the Vario Clamp hold the Vario Clamp the entire time. - Page 11 Use the rotating module to align Vario Clamp radially. 1. To loosen the rotating module of Vario Clamp push the button and pull the adjustable hand lever. 2. Rotate the rotating module of Vario Clamp to the desired position. To adjust the angle of the rotation, use the scale and rotate to the left or to the right (the scale shows the angle, one division corresponds to 10°).
- Page 12 3. When aligned as intended, pull the adjustable hand lever to fix the rotating module. 7.3. Assembly 1. Use the flight pin to attach the Vario Clamp to various CODA Audio Flying frames Note: Ensure that the connection is locked, once the pin is fully inserted in it’s position pg. 12...
- Page 13 CODA Audio Vario Clamp Operation Manual v1.0 The Vario Clamp has two pin positions: 2. Assembly examples FRV-APS Example shows the Vario Clamp combined with FRV-APS. Pin Position 2. pg. 13...
- Page 14 3. Assembly examples FR-AR-Set Example shows the Vario Clamp combined with FR-AR-Set. Pin Position 1. The Vario Clamp has a narrower slot at the Pin Position 2. which holds the EXBAR-AR in horizontal aimed place. Note: For higher negative / positive vertical frame angles, it’s necessary to place the Adapter into the right direction.
- Page 15 CODA Audio Vario Clamp Operation Manual v1.0 4. Assembly examples FR-NR The Vario Clamp includes an adapter to reduce the gap with and ensure a proper fixture for the horizontal position Note: For higher negative / positive vertical frame angles, it’s necessary to place the Adapter into the right direction.
