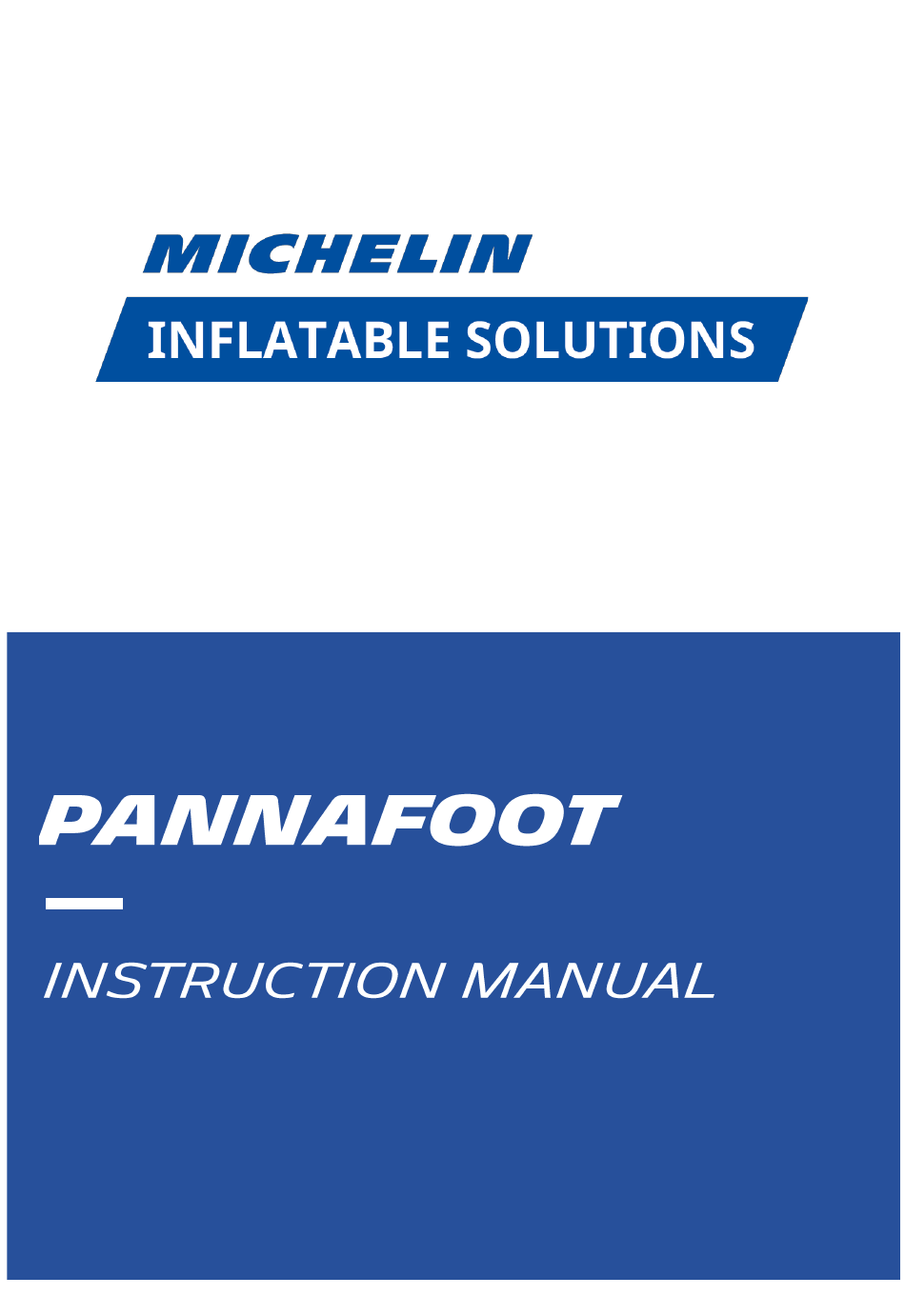

Page 2 Instruction manual - Pannafoot This file contains all our recommendations to guide you in the use of your new MICHELIN Inflatable Solutions product. We recommend that you read it carefully before using your product for the first time, and refer to it if you have any doubts.
Page 3: Table Of Contents
Instruction manual - Pannafoot CONTENTS PRECAUTIONS FOR USE CHECKING THE CONTENTS OF THE DELIVERY LEGEND III. CHARACTERISTICS INSTALLATION DISMANTLING PROBLEM SOLVING VII. MAINTENANCE VIII. WARRANTY CONDITIONS Ref/document : Instruction manual MIS Classification: D3 Conservation : WA...
Page 4: Precautions For Use
Instruction manual - Pannafoot PRECAUTIONS FOR USE Uses involving risks Do not use machinery or cutting equipment near ✓ the structure, as this could damage it. Do not use abrasive ballast (breeze block, stone, ✓ metal), as this may cause premature damage to the perimeter of the shelter.
Page 5 Your product is inflatable, so there is a risk that a bladder in your structure could ✓ leak. In this case, evacuate the people present under the structure, dismantle the structure and contact the after-sales service: commerce@inflatable.michelin.com. A systematic check is recommended when assembling your structure. If you notice ✓...
Page 6: Checking The Contents Of The Delivery
Instruction manual - Pannafoot II. CHECKING THE CONTENTS OF THE DELIVERY • Items included in a KIT : 1x transport bag (A) ▪ 1x structure (B) ▪ 2x high flow pump (C) ▪ 4x ballast bag (D) ▪ Ref/document : Instruction manual MIS...
Page 7: Legend
Instruction manual - Pannafoot III. LEGEND Lower ring for deflation Upper ring (cap with non-return valve) for inflation ‘Clamp open: lets air through (position when inflating/deflating) ‘Clamp closed: does not let air through (position when structure is inflated) Guy ring / ballast ring Pump (with ‘...
Page 8: Characteristics
Instruction manual - Pannafoot IV. CHARACTERISTICS PANNAFOOT Inside diameter 6,50 m Outside diameter 7,50 m Maximum height 1,13 m Weight 26 kg Ref/document : Instruction manual MIS Classification: D3 Conservation : WA...
Page 9: Installation
Instruction manual - Pannafoot V. INSTALLATION Installation takes 15 minutes. A minimum of 1 person are required for installation. 220V/50Hz power supply(s) to connect the pump(s). The main installation stages TAKE THE PRODUCT OUT OF ITS BAG AND SPREAD IT ON THE GROUND...
Page 10 Instruction manual - Pannafoot V. INSTALLATION 1. Take the structure out of the bag 2. Spread the structure on the ground To position the structure on the ground in the right direction, each structure has a ‘UP’ which must be placed on top. UPs are only visible if there is no cover, so if your product has a cover, the cover must be placed on top when it is installed on the ground.
Page 11 Instruction manual - Pannafoot V. INSTALLATION Close all the caps Close all the caps on the structure. ✓ Inflate the structure Unscrew the two plugs on either side of the structure and connect a pump to each of ✓ them.
Page 12 Instruction manual - Pannafoot V. INSTALLATION Lorsque la structure est suffisamment rigide, arrêter et retirer la pompe. ✓ Refermer les bouchons. ✓ Ref/document : Instruction manual MIS Classification: D3 Conservation : WA...
Page 13: Dismantling
Instruction manual - Pannafoot VI. DISMANTLING 1. Deflate the structure ✓ CAUTION: Do not use the pump to deflate the structure, as this could damage it. ✓ Open all the lower rings of the caps and allow the structure to deflate on its own.
Page 14: Problem Solving
Instruction manual - Pannafoot VII. PROBLEM SOLVING If you encounter any of the following problems, please follow the recommendations below : The non-return valve detaches from the valve ▪ during inflation  Simply close the cap to obtain a good sealing, this valve is a safety device.
Page 15: Maintenance
Instruction manual - Pannafoot VIII.MAINTENANCE 1- Maintenance tips Covers should be folded appropriately to maintain their watertight properties and prevent damage during storage. You can wash the structure with a jet of water (avoid pressure washing). Use mild detergents: soap, dishwashing detergents, etc..
Page 16: Warranty Conditions
Instruction manual - Pannafoot IX. WARRANTY CONDITIONS The MICHELIN Inflatable Solutions guarantee lasts for one (1) year. This guarantee covers the following defects: Leaks from a defective weld. Valve detachment or valve leakage. The guarantee does not cover damage resulting from incorrect assembly, incorrect use or resulting from an external cause such as : Normal wear and tear of components.
Page 17 Instruction manual - Pannafoot IX. WARRANTY CONDITIONS When acting under the legal guarantee of conformity, the consumer : has a period of two years from the date of delivery of the goods in which to take ✓ action may choose between repairing or replacing the goods, subject to the cost ✓...
