Summary of Contents for Pool Pro NEPTUNE X-ECO

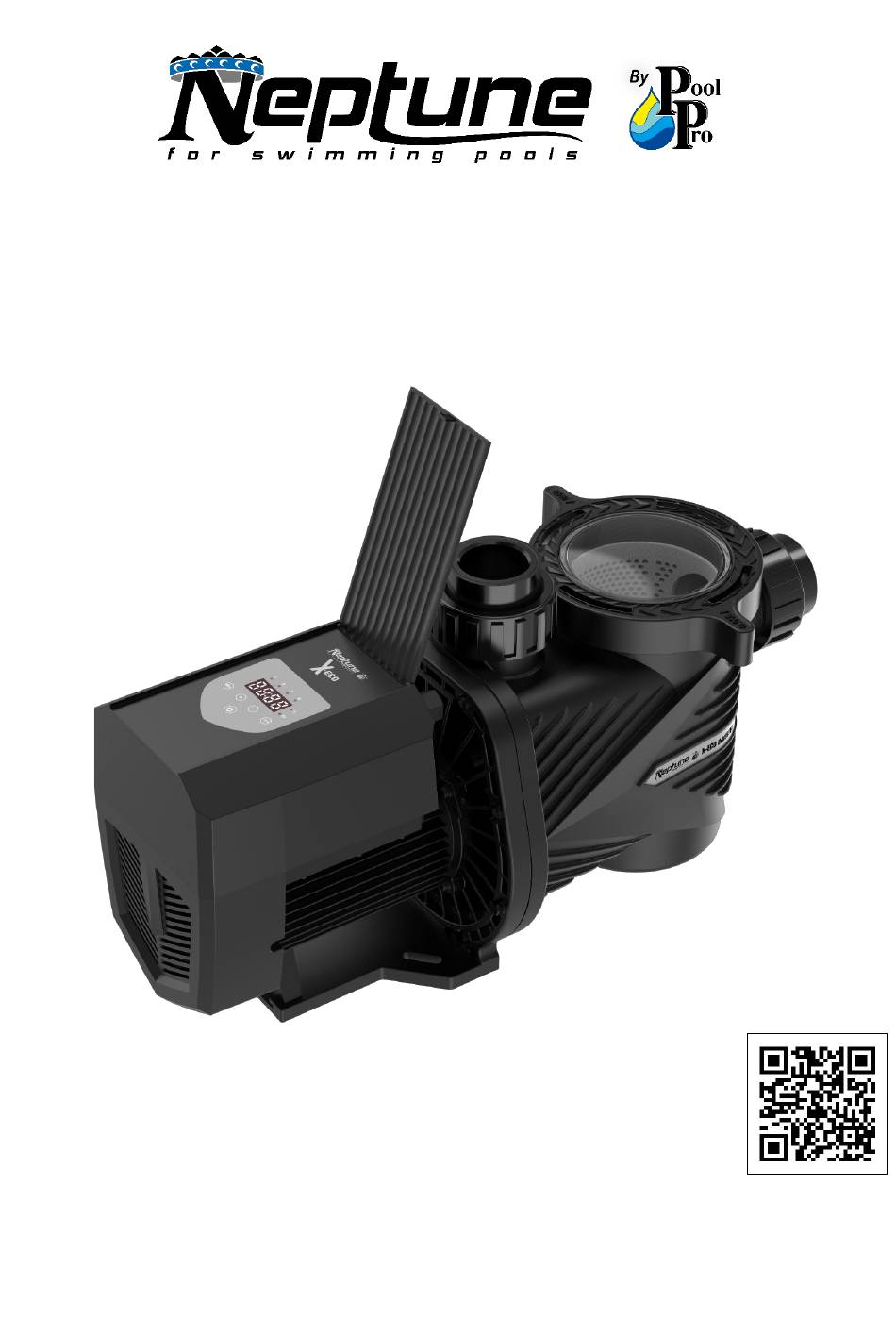

- Page 1 NEPTUNE X-ECO INVERTER POOL PUMP INSTALLATION GUIDE AND USER MANUAL THANK YOU FOR PURCHASING A NEPTUNE INVERTER POOL PUMP. Please read the manual thoroughly before installing or using the product. Keep this manual for future reference.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page SECTION 1: IMPORTANT WARNINGS AND SAFETY INFORMATION ............... 4 SECTION 2: PACKAGING CONTENTS ......................... 5 SECTION 3: PRODUCT SPECIFICATIONS ........................ 5-6 3.1: PRODUCT DIMENSIONS ........................... 5 3.2: TECHNICAL DATA ............................... 6 3.3: OPERATING CONDITIONS ..........................6 SECTION 4: INSTALLATION ............................ -
Page 4: Section 1: Important Warnings And Safety Information
SECTION 1: IMPORTANT WARNINGS AND SAFETY INFORMATION This manual contains important information about the installation, operation, and safe use of this product. This information should be given to the owner and/or operator of the pool pump. When installing and using the pool pump, basic safety precautions should always be followed. Failure to follow safety warnings and instructions in this manual can result in serious injury and/or damage to your equipment. -
Page 5: Section 2: Packaging Contents
SECTION 2: PACKAGING CONTENTS The following items are included in the packaging of the pool pump. Please contact your authorised dealer if any items are damaged or missing. Inverter Pool Pump x 1 User Manual x 1 Unions x 2 RS485 Communication Cable x 1 SECTION 3: PRODUCT SPECIFICATIONS 3.1: PRODUCT DIMENSIONS... -
Page 6: Technical Data
3.2: TECHNICAL DATA Model NPE550 NPE750 NPE1500 NPE2000 NPE2500 Input Power (kW) 0.66 0.80 1.10 1.50 1.80 Input Power (hp) 0.88 1.10 1.50 2.00 2.40 Voltage (V/Hz) 220-240 / 50/60 Current (A) Maximum Flow Rate (L/min) Flow Rate @ 8m Head (L/min) Flow Rate @ 10m Head (L/min) Noise Level @ 30% Running Speed (dB) 36.0... -
Page 7: Section 4: Installation
SECTION 4: INSTALLATION 4.1: PUMP LOCATION 1. Install the pump as close to the pool as possible. To reduce friction loss and improve efficiency, use short, direct suction and return piping. 2. To avoid direct sunshine, heat or rain, it is recommended to place the pump indoors or in the shade. 3. -
Page 8: Section 5: Touchpad Overview
SECTION 5: TOUCHPAD OVERVIEW ① Running capacity / power display ② Running capacity / power indicator ③ Timer indicator 1/2/3/4 Backwash / unlock Up / down: to change the value of the setting Timer setting / power reading On/off SECTION 6: START-UP AND OPERATION OF THE PUMP Check all wirings and plumbing carefully before turning on the pool pump. -
Page 9: Self-Priming
6.3: SELF-PRIMING Each time the pump is started, it will start self-priming. 1. The pump will start counting down from 1,500 seconds. When the system detects the pump is full of water, it will stop counting down and exit priming automatically. 2. -
Page 10: Running Capacity Settings
6.7: RUNNING CAPACITY SETTINGS Hold for more than 3 seconds to unlock the screen. Press to start. The pump will run at 80% of the running capacity at the initial startup after the self-priming process. Press to set the running capacity between 30%-100%, in increments of 5%. Hold for more than 3 seconds to read the real-time power. -
Page 11: Parameter Settings
NOTES: • When timer mode is activated, if the set time period contains the current time, the pump will start running according to the set running capacity. The corresponding timer indicator (1 or 2 or 3 or 4) will stay on, and the set running capacity will be shown on the screen. - Page 12 Parameter Description Default Setting Setting Range Address PIN3 100% 30-100%, in 5% increments PIN2 30-100%, in 5% increments PIN1 30-100%, in 5% increments Backwash capacity 100% 80-100%, in 5% increments Enable or disable self-priming at 25: enables each startup 0: disables EXAMPLE: How to Enable/Disable Self-Priming Function: 1.
-
Page 13: Section 7: External Controller (Optional)
SECTION 7: EXTERNAL CONTROLLER (OPTIONAL) An external controller can be used via the following contacts. Connector for configurable user inputs, including Digital Input, RS485 (Optional) and Relay output (Optional) AC Power Input 7 PINs connector for Digital Input and RS485 (Optional) Relay Output (Optional) Black Yellow and Green... -
Page 14: Section 8: Maintenance
1. Digital Input • When PIN4 connects with PIN5, the pump will be mandatory to stop; if disconnected, the digital control will be invalid. • When PIN3 connects with PIN5, the pump will be mandatory to run at 100%; if disconnected, the control priority will be back on panel control. -
Page 15: Section 10: Troubleshooting
SECTION 10: TROUBLESHOOTING Problem Possible causes and solution • Power supply fault, disconnected or defective wiring. • Fuses blown or thermal overload open. Pump does • Check the rotation of the motor shaft for free movement and lack of obstruction. not start •... - Page 16 Error Item Details Code Abnormal input voltage: the power supply voltage is out of the range of 165V Description to 275V. E001 The pump will stop automatically for 15 sec and resume working if it detects Process the power supply voltage is within the range. Output over current：The peak current of the pump is higher than the Description protection current.
- Page 17 Error Item Details Code Description PFC protection：PFC protection occurs on the Master driver board. E107 Process Same process as E002. Description Motor power overload：Motor power exceeds the rated power by 1.2 times. E108 Process Same process as E002. Circuit board error：When the pump power off，the bias voltage of the E201 Description sampling circuit is out of the range of 2.4V~2.6V.
-
Page 18: Section 11: Schematics
SECTION 11: SCHEMATICS Ref # Stock Code DESCRIPTION 1, 2 & 3 NPEP001 Union Tail, Union O-Ring & Union Nut SBN2 Pump Basket OR951M Pump Lid O-Ring LD016 Pump Lid (Transparent) NPEP002 Lid Locking Nut NPEP003 Drain Plug OR952M Drain Plug O-Ring OR953M Diffuser O-Ring Turnable Return Ring... -
Page 19: Section 12: Disposal
Please register your product online at www.poolpro.com.au/product-registration. • The limited warranty for the Neptune X-Eco Inverter Pool Pump (models NPE550, NPE750, NPE1500, NPE2000 & NPE2500) covers manufacturer’s defects in materials and workmanship for 3 years on all parts and labour. - Page 20 AG129-DM-03...
