Unior Electric repair stand 2.0 Manual

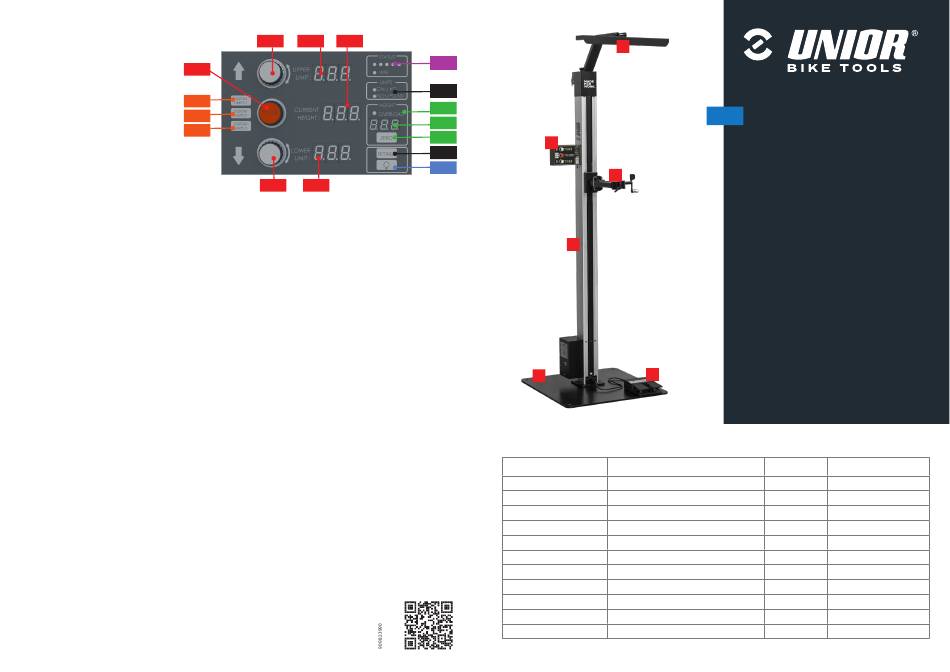

CONTROL PANEL - DESCRIPTION OF INDIVIDUAL FUNCTIONS
A5
B1
B2
B3
A) USE OF ROTARY KNOBS
• A1 - Rotate the upper knob to adjust the UPPER LIMIT from 70 cm to 175 cm
• A2 - Rotate the lower knob to adjust the LOWER LIMIT from 55 cm to 170 cm
• A3 - Press the upper knob to move the stand upwards
• A4 - Press the lower knob to move the stand downwards
• A5 - Press the middle STOP button to STOP the stand
• A6 - Display of current height
B) MEMORY FOR CUSTOM LIMIT ADJUSTMENT
• B1 - Hold the CUSTOM LIMITS 1 button to save the upper and lower limit position 1
• B2 - Hold the CUSTOM LIMITS 2 button to save the upper and lower limit position 2
• B3 - Hold the CUSTOM LIMITS 3 button to save the upper and lower limit position 3
C) OVERLOAD SYSTEM
• C1 - If attempting to lift more than 70 kg, the OVERLOAD LIGHT will illuminate.
• C2 - The scale is accurate to +- 2 kg and is not intended for precise weighing.
• C3 - Press the ZERO button to reset the scale to 0 kg. ((CAUTION! : THE ZERO BUTTON IS ONLY PRESSED DURING THE SCALE CALIBRA-
TION PROCESS. INSTRUCTIONS FOR SCALE CALIBRATION ARE AVAILABLE VIA QR CODE ON THE TOP OF THE MOTOR COVER))
D) SETTINGS
• D1 - Press and hold the SETTINGS button, then rotate the STOP knob to adjust the brightness of the digits on the control panel.
• D2 - With a second press of the SETTINGS button and rotation of the STOP knob, set the units to CM/KG or IN/LB.
• D3 - Press the SETTINGS button a third time to confirm the settings.
E) LIGHT
• E1 - Press the LIGHT button to turn the LIGHT on or off.
F) STATUS
• F1 - The option to connect the stand to the user's Wi-Fi provides two capabilities:
• Remote diagnosis of any faults or issues.
• Comprehensive analysis of the stand's operation over a period, including the number of cycles, operating hours, load, overloads, etc.
A3 A1 A6
F1
D2
C1
C2
C3
D1/D3
E1
A4 A2
Unior d.d.
Kovaška cesta 10
3214 Zreče, Slovenia
T: +386 3 757 81 00
www.uniorbiketools.com
5
4
3
1
6
2
POSITION NAME
1 Electric repair stand 2.0 without plate
2 Fixed plate for 1693EL
3 Master shop repair clamp
4 Control panel assembly
5 Light with holder
6 Foot pedal
7 Power cable EU (220V)
8 Power cable US (120V)
9 UK plug adapter
10 Declaration of conformity
11 Key & spare key
Electric repair stand 2.0
EN
uniorbiketools.com
SKU NUMBER OF PARTS
629761 1
628743 1
629865 1
909823220 1
909823700 1
909823800 1
/ 1
/ 1
/ 1
/ 1
/ 1
