Assembling the BEST IR Circuit Boards
These are step-by-step instructions showing how to solder the components onto the
printed circuit boards (PCBs) for the BEST IR system. It assumes you already know how to
solder thru-hole components. There are many "How to Solder" tutorials available on the
internet so that will not be covered here.
Keep in mind that soldering components to a PC board is pretty easy but fixing mistakes
after a component is soldered is very difficult. Follow a rule similar to the "measure twice, cut
once" rule carpenters use. Check orientation, insert component, double check orientation,
then solder.
A few words about Electrostatic Discharge, or ESD
Have you ever walked across a room and gotten a spark when you touched a doorknob?
Yes? I thought so. That spark is electrostatic discharge. You build up a charge as you walk,
which discharges to the first metal thing you touch. You don't have to be walking, just turning
or sliding in your chair can build up a charge.
Some electronic components can be damaged by these discharges. A discharge you
can't even feel is enough to cause damage so you might not realize it is happening. Three of the
components used in our IR circuit are considered ESD sensitive and should be handled with
care. They are the IR LED, in the clear plastic package with 2 leads, the IR RCVR IC, in the dark
plastic package with 3 leads, and the 7555 timer IC, in the 8 pin DIP. Here is a photo to help you
identify them:

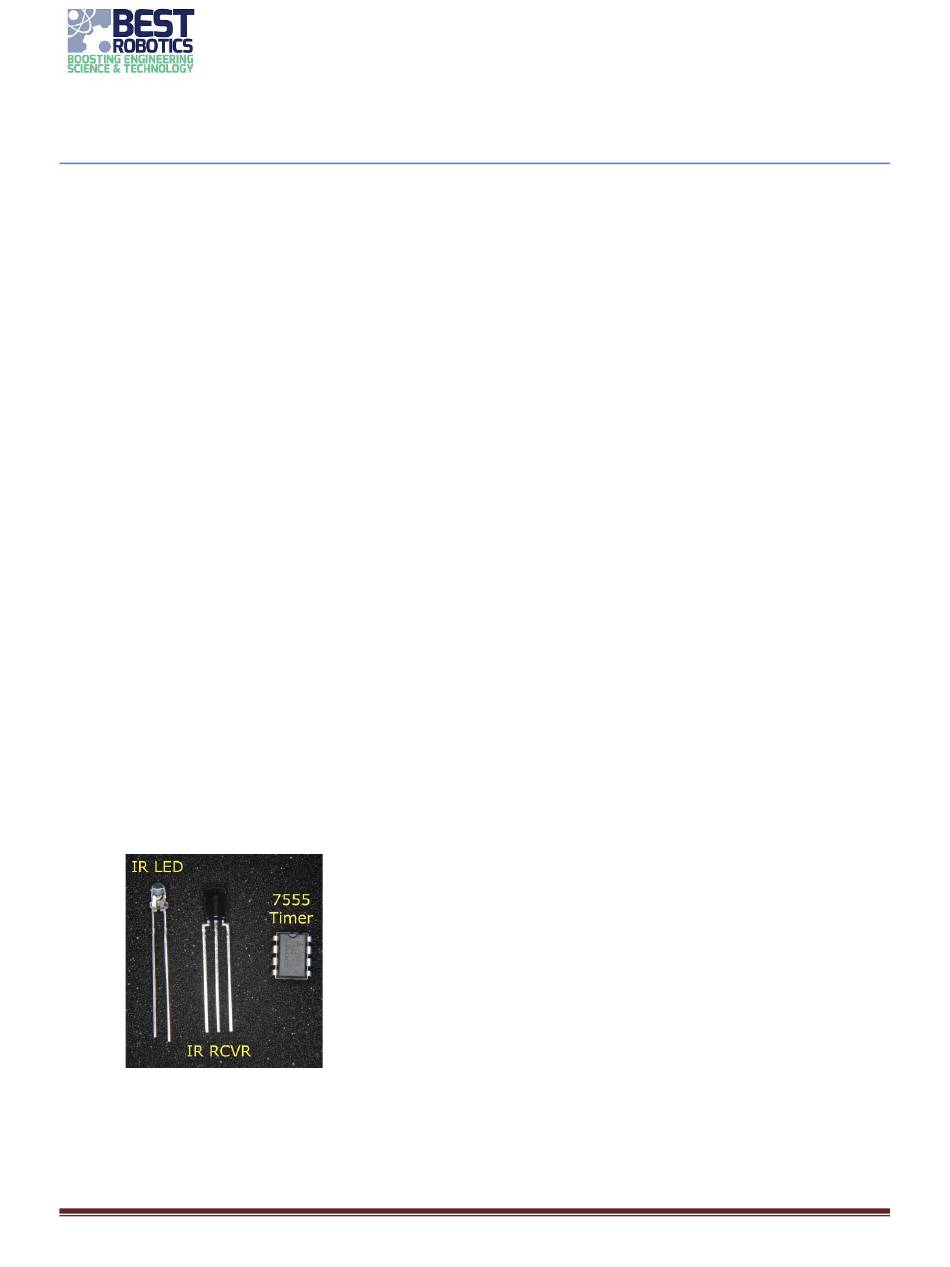

Components sensitive to ESD
The IR kit is distributed in a silvery static shielding bag. Try to keep each of these three
components in the bag until you are ready to solder it onto the PC board. Once they are
BEST IR Assembly Instructions
Revised 11 August 2022
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BEST IR and is the answer not in the manual?

Questions and answers

Summary of Contents for BEST Robotics BEST IR

  • Page 1 These are step-by-step instructions showing how to solder the components onto the printed circuit boards (PCBs) for the BEST IR system. It assumes you already know how to solder thru-hole components. There are many “How to Solder” tutorials available on the internet so that will not be covered here.
  • Page 2: Needed Equipment

    If you are experienced assembling PCBs you can probably get by with the “Summary” section of each step. If you are new to building PCBs or just want more information read the “The Long Version” section of each step. BEST IR Assembly Instructions Page 2...
  • Page 3 Keeping the two PCBs as one helps during assembly because one larger PCB is easier to handle than two smaller PCBs. Unbroken the combined PCB is still only 1.65” x 0.95”. Not to worry, there is generous room around the components.  BEST IR Assembly Instructions Page 3...
  • Page 4 If you are about to insert a resistor and are not certain of its value measure it with an ohmmeter. Resistor values vary slightly from piece to piece but will all be BEST IR Assembly Instructions Page 4...
  • Page 5 1.2K resistors, then the 2.2K resistor, finishing with the two 22K resistors. 3. Add the IC Socket Figure 3a: IC socket Figure 3b: socket location Summary: Solder on the IC socket. Note where the notch is. The Long Version: BEST IR Assembly Instructions Page 5...
  • Page 6 If in spite of the warning you still managed to solder the socket in the wrong orientation don’t panic. We’ll take care of it later. At this point trying to remove the 8 pin socket will almost certainly destroy the PC board. BEST IR Assembly Instructions Page 6...
  • Page 7 After you are satisfied that the connector is straight, solder the remaining two or three pins. As you did for the DIP socket, check for solder bridges and remove if present. BEST IR Assembly Instructions Page 7...
  • Page 8 Straighten the connector if needed. Finish by soldering the remaining two pins. Check for and remove any solder bridges. 6. Add the Timing Capacitor Figure 6a: timing capacitor Figure 6b: timing capacitor location BEST IR Assembly Instructions Page 8...
  • Page 9: Polarity Sensitive

    Figure 8a shows one of the red LEDs, the two red LEDs are identical. An LED is polarity sensitive – it must be inserted in the correct orientation or it will not work. Notice that one BEST IR Assembly Instructions Page 9...
  • Page 10 0.25” lead exposed between the LED and the PCB in case you want to bend the LED over to shine in the plane of the PCB. Take precautions against static discharge when handling the IR LED. The Long Version: BEST IR Assembly Instructions Page 10...
  • Page 11 Welcome to the world of ECNs – Engineering Change Notices. After using the IR system for a couple years we decided it was easier to use if there was no electrolytic capacitor on the transmitter board (we still like it on the receiver board). Therefore C1 has been removed from BEST IR Assembly Instructions Page 11...
  • Page 12 Leave about 0.25” of lead exposed between the IC package and the PCB in case you want to bend the receiver back to look up from the PCB. Take precautions against static discharge when handling the IR receiver. The Long Version: BEST IR Assembly Instructions Page 12...
  • Page 13 Figure 12a: 7555 timer IC Figure 12b: 7555 timer IC location and orientation Summary: Plug the 7555 into the socket. Note where the notch goes. Take precautions against static discharge when handling the 7555 timer. The Long Version: BEST IR Assembly Instructions Page 13...
  • Page 14 The PCBs of the two circuits are connected together by the narrow bridge of PCB material. The simplest way to separate the two boards is to cut this bridge using your wire cutters. Take your BEST IR Assembly Instructions Page 14...
  • Page 15: Revision Notes

    PCBs will separate. You could also use a small saw. Watch out for fiberglass dust, don’t inhale it. Revision Notes 11Aug22: Removed C1 so transmitter could more easily be connected to send serial data. BEST IR Assembly Instructions Page 15...
