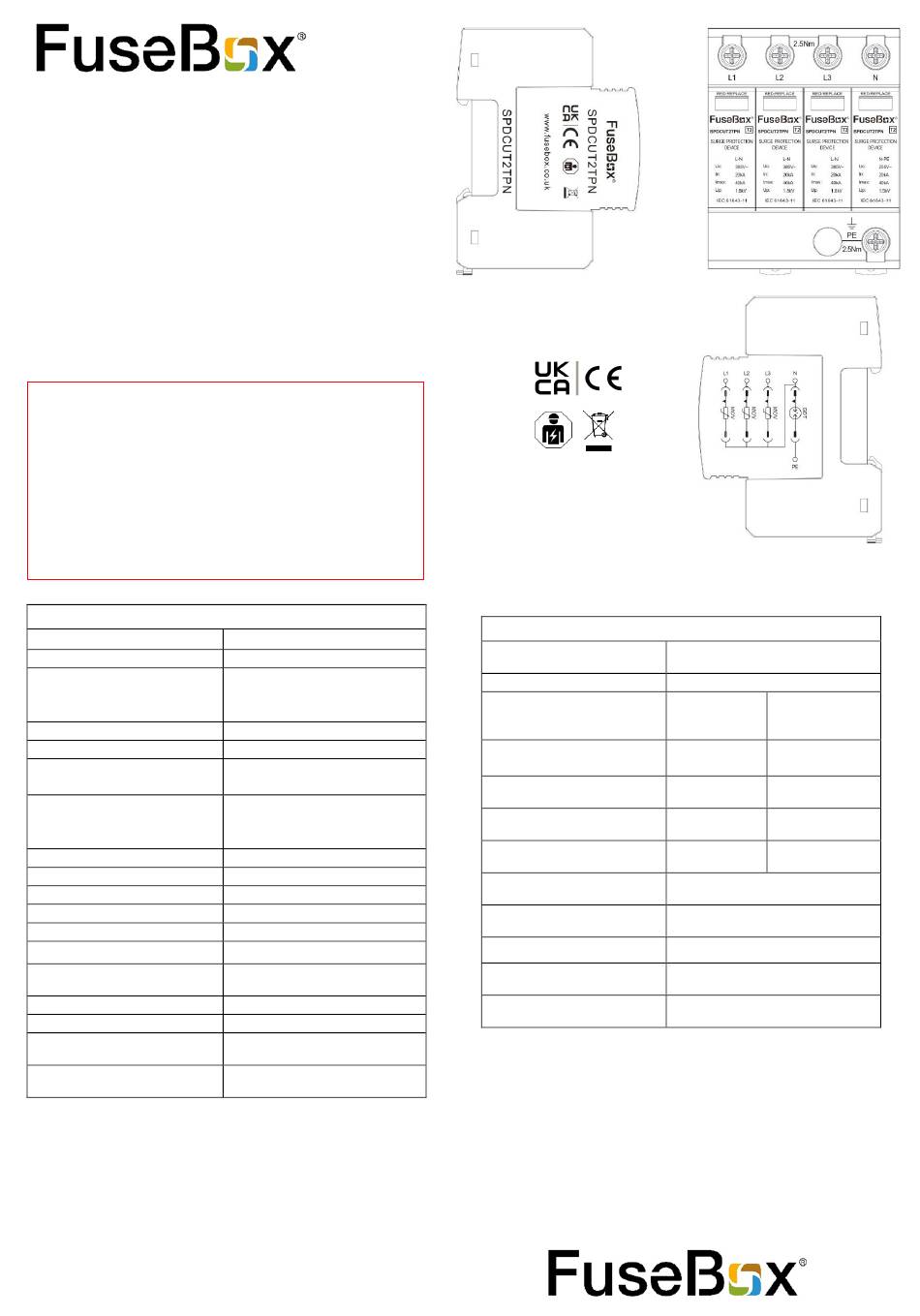

FuseBox SPDCUKITT2TPN Manual

SPDCUKITT2TPN
Part Number:
T2 SPD 3P+NPE
Description:
Document: Jan2023
3 Phase (3P+NPE) T2 Surge Protection Device (SPD) supplied
complete with 32A B Curve triple pole MCB and 6mm² connecting
cables.
This device must be installed and tested by a qualified electrician
in accordance with the current IET Wiring Regulations BS7671.
CAUTION
WHEN CONDUCTING INSULATION RESISTANCE TESTING WITH SPD
FITTED IT IS RECOMMENDED EITHER THE EARTH CONNECTION OR THE
PLUG IN CARTRIDGES ARE REMOVED.
IF YOU DO NOT WISH TO REMOVE THE CARTRIDGES OR EARTH
CONNECTION, THEN TESTING MUST BE AT A MAXIMUM OF 250V DC.
Before powering up the installation check all connections are
TORQUED 2.5Nm. Loose connections cause fires!
TECHNICAL
(TABLE A)
PART NUMBER
BARCODE
DESCRIPTION
WIDTH
STANDARD
FLAG INDICATION
TECHNOLOGY
Nominal VOLTAGE (Un)
SYSTEM
TERMINAL CAPACITY (max.)
RECOMMENDED TORQUE
DEGREE OF PROTECTION
MOUNTING
MAXIMUM OPERATING
VOLTAGE (Uc)
RESPONSE TIME (tA)
MAXIMUM BACK UP FUSE (F1)
RECOMMENDED BACKUP MCB
(F2)
SHORT CIRCUIT WITHSTAND
(ISccR)
SPDCUKITT2TPN
5060523525096
SURGE PROTECTION DEVICE T2
Includes 32A TP B TYPE MCB
and cables (6mm²)
72mm (4 module)
IEC/EN 61643-11
GREEN: GOOD
RED: REPLACE
MOV (METAL OXIDE
VARISTOR) L -PE /GDT (GAS
DISCHARGE TUBE) N - PE
400V~ 50/60Hz
TN-C-S, TN-S, TT
6mm² - 35mm²
2.5Nm
IP20
(to
35mm DIN RAIL EN 60715)
385V
≤100Ns
125A fuse gG
32A
50kA
TECHNICAL
(TABLE B)
Energy coordination with
terminal equipment (≤10m)
Type
Max. continuous operating
voltage (AC) (Uc)
Nominal discharge current
(8/20µS) L-N /N-PE (In)
Maximum Discharge Current
(8/20µS) L-N/N-PE(Imax)
Voltage protection level
L-N /N-PE (Up)
Temporary overvoltage (TOV)
L-N (UT)
Temporary overvoltage (TOV)
L-N (UT)
Operating temperature range
Material (housing)
Weight (Kg)
After installation and testing of this product it is essential
that the INSTRUCTION LEAFLET is available for reference.
www.fusebox.co.uk
Type 2 + Type 3
3P+NPE
L-N MOV N-PE GDT
(Varistors) (Spark gap)
385V 255V
(50/60Hz) (50/60Hz)
20KA 20KA
40KA 40KA
<1.8kV <1.5kV
440V/12 min-- withstand
1200V/200ms - withstand
-40〬C +80〬C
Thermoplastic UL94 V0
0.4Kg
