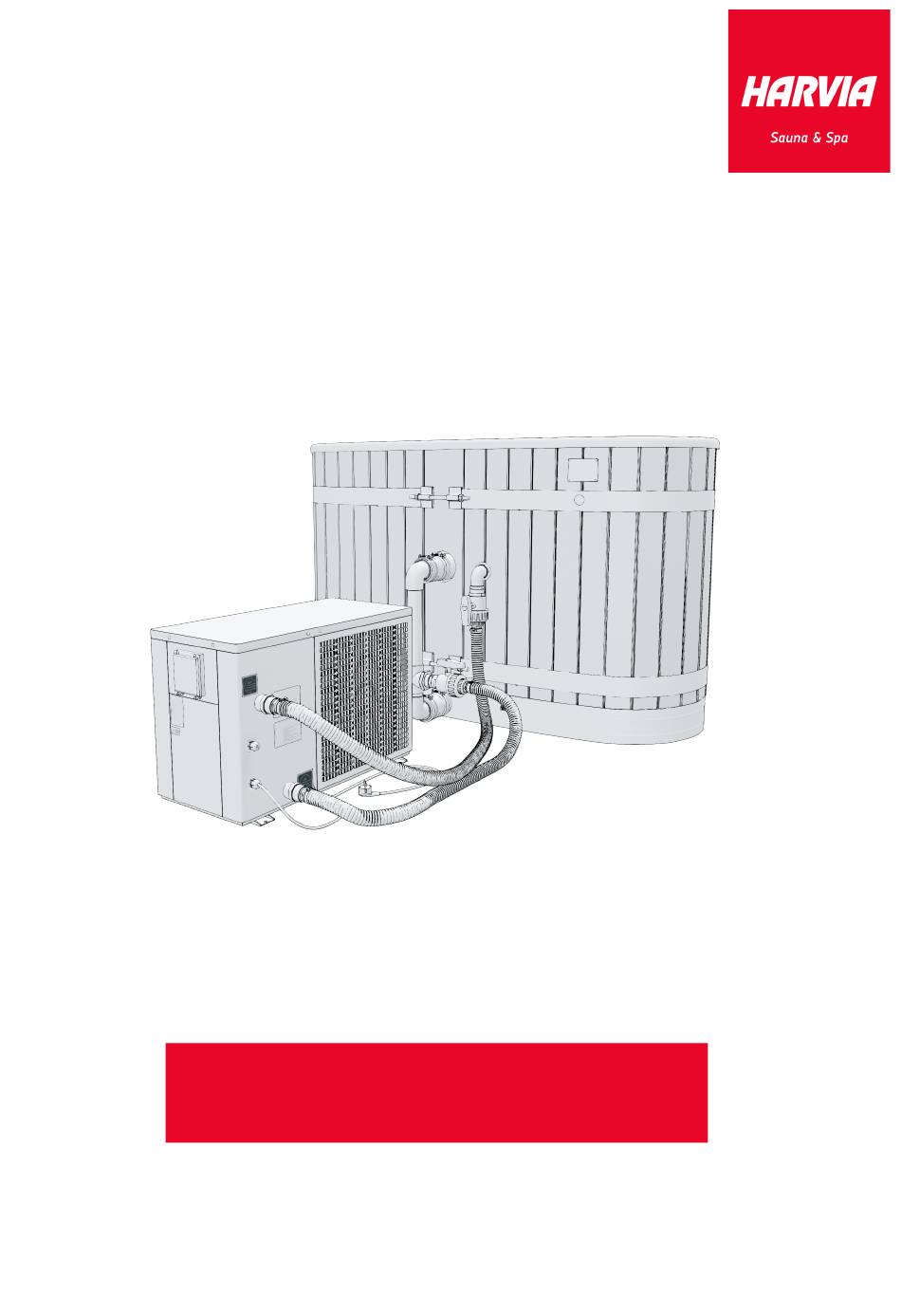

- Page 1 INSTRUCTIONS FOR USE Harvia Frosty Gen2 Inspect the contents of the delivery immediately! Read and save the instructions for further use. Kirami Oy Villiläntie 2 tel. +358 10 574 2170 FI-32730 Sastamala...
- Page 2 WARNINGS Danger! – Risk of Accidental Drowning (especially children under 5 years). Caution shall be exercised to prevent unauthorized access to hot tub by children. This can be reached by adult supervisor securing the means of access or installing a safety protection device (lockable cover) to the hot tub. To avoid accidents during hot tub use, ensure that children are kept under constant supervision.
- Page 3 WARNINGS • For repairs, please contact service. The repair process must be done in strictaccordance with this manual. All maintenance operations by non-professionalpersonnel are prohibited and will void warranty. • Misoperation may result in injury to personnel or damage to equipment. •...
-
Page 4: Installation
INSTALLATION Making the foundation It is important to place the tub on an even surface that can bear the whole weight of the tub (approx. 800kg). The foundation can be evened out e.g. with chips (picture below) or if you want a more solid foundation, it can be cast of concrete or covered with slabs. - Page 5 Installation Distance The cooling unit should be installed in a well-ventilated area. It should be installed in the place greater than the following distances: • Min. distance between unit front and wall = 1500mm (150 cm) • Min. distance between unit back and wall = 300mm (30 cm) •...
-
Page 6: Part List
COOLING UNIT - INSTALLATION TO TUB PART LIST Cooling unit Hose connectors to cooling unit Lead-through set Parts of the water suction side- Tub Parts of the water return side - Tub In addition Number Part Quantity Cooling unit Pipe adapter 1” id 90 degree angle 1”... - Page 7 INSTALLING HOSE CONNECTORS TO COOLING UNIT 1. Wrap thread tape around the outer threads of part 4 about 15 turns. Attach parts 2 and 4 to each other. Attach parts to the cooling unit. INSTALLING WATER RETURN . After that, attach parts 3, Wrap thread tape around 15 turns on the outer threads of parts 3 and 4 4, and 8 to each other.
-
Page 8: Hose Connections
INSTALLING LEAD-THROUGH SET 3. Wrap thread tape around 15 turns on the outer threads of parts 4 and 9. After this attach parts 4, 8, 9 and 10 to each other. Attach connected parts you made to the lead-through set ( 5 ). 4. - Page 9 OPERATIONAL ADVICE Filter shall be cleaned and dried if possible whenever the hot tub is emptied. No manual dosing of chemicals shall be performed while bathers are present in the hot tub. When filling the tub, note the number of people because people entering the tub will displace the water when they enter the tub.
-
Page 10: Operation
OPERATION Controller Interface Operation Instruction of Controller P P o o w w e e r r a a n n d d S S c c r r e e e e n n L L o o c c k k To unlock, press any key to light up the screen and long press “... - Page 11 T T e e m m p p e e r r a a t t u u r r e e S S e e t t t t i i n n g g When the cooling unit is on, unlock the screen (see “Power and Screen Lock”). Press up “...
- Page 12 T T i i m m e e S S e e t t t t i i n n g g (1) Enter Time Setting: Long press the “ ” key for 5 seconds until the digit in both “hour”...
- Page 13 Filling the Pool and letting air out of the unit Fill the pool slightly below the upper nozzle and use same water hose to run water from the upper nozzle to get air out of the unit. Then turn on the unit. If the air does not come out of the unit and no flow (error P01) appears after unit starts, stop the unit, and run water from the upper nozzle again, keep the hose tightly in the upper nozzle.
-
Page 14: Maintenance And Safety Of The Tub
MAINTENANCE AND SAFETY OF THE TUB Surface treatment Thermowood A tub lined with thermally modified wood is beautifully brown. If you want to keep the brown tone, the tub shall be oiled from the outside at least once a year with an UV-protected impregnant. Water-based wood oil Teknoshield 4015 has been used at the factory. -
Page 15: Maintenance Tips
MAINTENANCE OF THE COOLING UNIT General maintenance and quality of water Maintenance of pool. Make sure the water stays clean and clear. Depending on the utilization frequency, occasional use of chlorine might be needed to disinfect the water (especially in heavy public use) On daily basis: Check the water level. -
Page 16: Child Safety
Clean-up Take care of the cleanliness and hygiene of the tub by washing and drying it carefully and often. We recommend rinsing the pipes of the stove and the tub after each use. Washing can be made, for example, with pine soap and cloth or Kirami Bio solution. -
Page 17: Technical Information
TECHNICAL INFORMATION Recommended person capacity Outside wall height of the tub 98 cm Outside measures of the tub 170 x 72 cm Minimum water depth of the tub 50 cm Maximum water depth of the tub 83 cm Maximum water volume 615 l WARRANTY - POOL We provide a 24-month material and manufacturing guarantee for our hot tubs and tubs. - Page 18 - Filter housing (optional) WARRANTY - COOLING UNIT These materials have a 3-year warranty, which applies to fractures and breaking without external influence or other misuse of the device (see below limitations) 2 YEARS: - Cooling unit (aggregate) as a whole (model APCU032) •...
- Page 19 - Damage caused by unauthorized alterations, accident, misuse, abuse, use of an incorrect voltage, power surges, thunderstorm activity, tampering and unauthorized repairs, or exposure to abnormally corrosive conditions - Damage caused by the use of chemicals or minerals in the pool water. - Damage caused by water or other liquids entering the electrical or electronics of the device through negligence.
-
Page 20: Disposal Of The Product
DISPOSAL OF THE PRODUCT Any metal parts of the product shall be recycled and wooden parts can be disposed of by burning. The stained wood is toxic waste. The composite- and ecoplank panels can be disposed of by burning with other wood in small doses. The inner tub is recyclable LDPE plastic.
