APG Web Enabled Series Installation Manual

Thank You
Thanks for purchasing a RST-5003 control module from us! We appreciate your business
and your trust. Please take a moment to familiarize yourself with the product and this
manual before installation. If you have any questions, don't hesitate to call us at
888-525-7300.
Table of Contents
1. Description 5. Dimensions
2. How To Read Your 6. Power Supply Wiring
Label Diagrams
3. Warranty and Return 7. Modbus System Wiring
Information Diagrams
4. Installation Procedure 8. Embedded Webpage
1 Description
The RST-5003 Web Enabled Control Module offers a wide degree of integrated and
flexible remote and local control and monitoring for your system. The RST-5003
can control up to ten APG Modbus sensors—any combination of level, pressure,
magnetostrictive, and ultrasonic—along with one 4-20 mA sensor, and two input or out
relay terminals. All readings are available for control and monitoring via TCP/IP for local
or remote network access. The RST-5003 also has flexible power options: it can use either
POE or an independent 12-28 VDC power source.
2 How To Read Your Label
Each label comes with a full model number, a part number, and a serial number. The
model number for the RST-5003 will look something like this:
SAMPLE: RST-5013
The model number correlates with all the configurable options and tells you exactly what
you have. Compare the model number to the options on the datasheet to identify your
exact configuration. You can also call us with the model, part, or the serial number and we
can help you.
3 Warranty and Return Information
This product is covered by APG's warranty to be f ree f rom defects in material and
workmanship under normal use and service of the product for 24 months. For a full
explanation of our Warranty, please visit
certifications/warranty-returns/. Contact Technical Support to receive a Return Material
Authorization (RMA) before shipping your product back.
If your radar level sensor needs to be returned for evaluation, contact us via email, phone,
or on-line chat on our website. We will issue you an RMA number with instructions. You can
also find the form on our website by clicking "RMA" in the web footer, or go to
https://share.hsforms.com/1rPTIAWbsTMiD0XD_SkBs6g2rio0.
Phone: 888-525-7300
•
Email: sales@apgsensors.com
•
Online chat at www.apgsensors.com
•
Please have your part number and serial number available.
Installation Procedure
4
Installing your RST-5003 is easy if you follow a few simple steps:
STEP 1: Connect any 4-20 mA sensor, relays, or switched inputs first.
STEP 2: Connect RST to Ethernet/network.
STEP 3: Connect independent 12-28 VDC supply if not using POE.
STEP 4: Connect and set up one Modbus sensor at a time.
Please keep the following limitations in mind:
• Up to 10 Modbus sensors can be connected to the RST-5003 in any combination.
• Only one 4-20 mA sensor can be connected to the RST-5003.
IMPORTANT: Each Modbus sensor must be added to the network individually and
assigned a unique Sensor Number before the next sensor can be added.
NOTE: If you can control power to each Modbus sensor individually, you can
connect them all simultaneously, and power them on individually.
9. General Care
10. Removal Instructions
https://www.apgsensors.com/resources/warranty-
RST-5003 CONTROL MODULE
Web Enabled Series
Installation Guide
Automation Products Group, Inc.
1025 W 1700 N Logan, UT 84321
www.apgsensors.com | phone: 888-525-7300 | email: sales@apgsensors.com

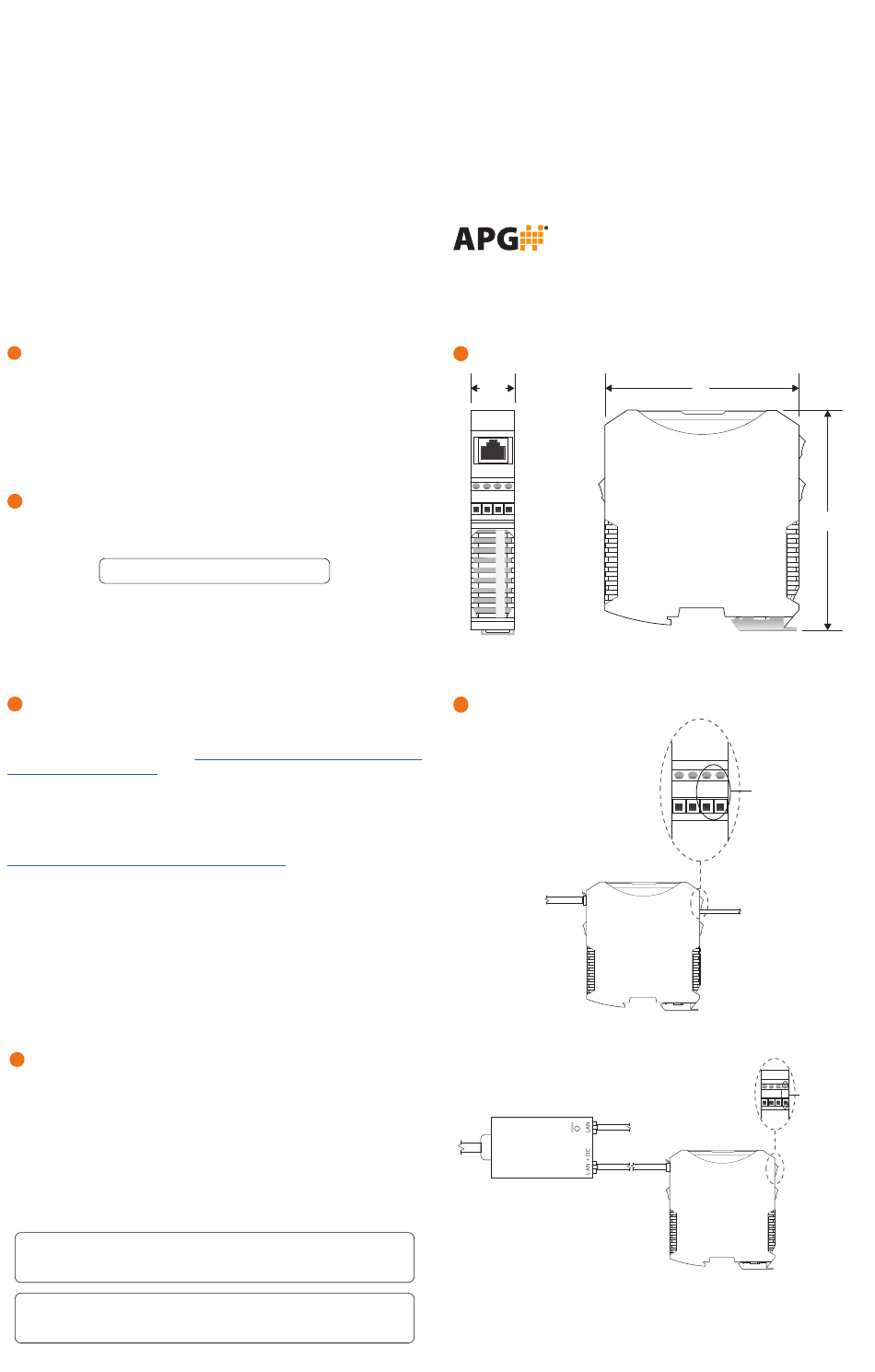

5 Dimensions
7/8"
G 2
B A N 4
D V
6 Power Supply Wiring Diagrams
To Network
Connection
External 12-28VDC Power Supply Wiring
To AC
power
POE
Power
Injector
NOTE: A POE-enabled
Ethernet switch eliminates
the need for a POE Power
Injector.
POE (Power Over Ethernet) Wiring
Part # 122950-0012
Doc # 9004245 Rev B
4"
Input for supply
4 G G 2 voltage when
2 N N 4
0 D D V
using a non-POE
power source
To 12-28 VDC
RST-5003
Power Source
4 G G 2
2 N N 4
0 D D V
To Network Connection
RST-5003
4 1/2"
Provides 24 VDC
to supply a 4-20 mA
device when the RST
is powered via POE.
