Safeguard Supply SS-FIREBELL-12V Instruction Manual

SS-FIREBELL-12V Instruction Manual
Product Overview
The SS-FIREBELL-12V is a 12V fire alarm bell sold by Safeguard
Supply. It is primarily designed as a signaling device for the ERA-DCRX
desktop chime receiver but may also be used as a standalone product.
While it may have other applications, Safeguard Supply markets this
product as an accessory for the ERA-DCRX receiver.
Note: This device is not intended to connect to alarm-indicating circuits of
UL-listed fire alarm control panels or be a fire signaling device for
emergency situations.
Features and Specifications
Operating Voltage: 12V DC (9-16V range)
•
Maximum Current: 40mA
•
Sound Level: Approximately 90 dBA
•
Operating Temperature: 14°F to 131°F (-10°C to 55°C)
•
Construction: Iron base
•
Environment Rating: Outdoor rated
•
Weight: 610g (1.34 lbs.)
•
Installation Guide
1. Please read these instructions carefully before installation.
2. Install the bell at the height to hear the sound.
Mounting Steps

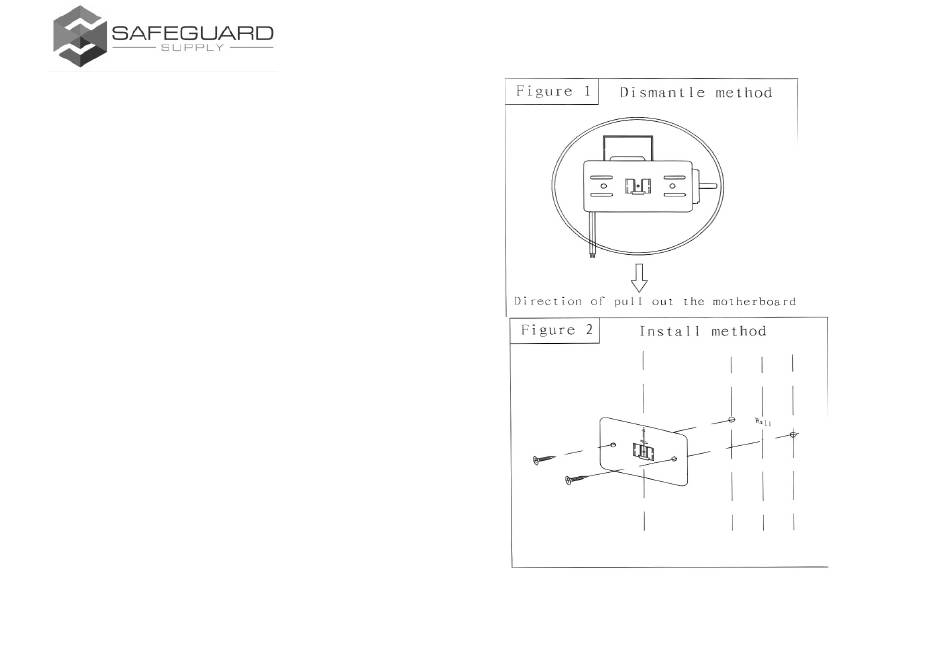

1. Remove the motherboard from the bell housing (see Figure 1).
2. Mount the motherboard on the wall. Pay attention to the "↑" direction
indicator (see Figure 2).
