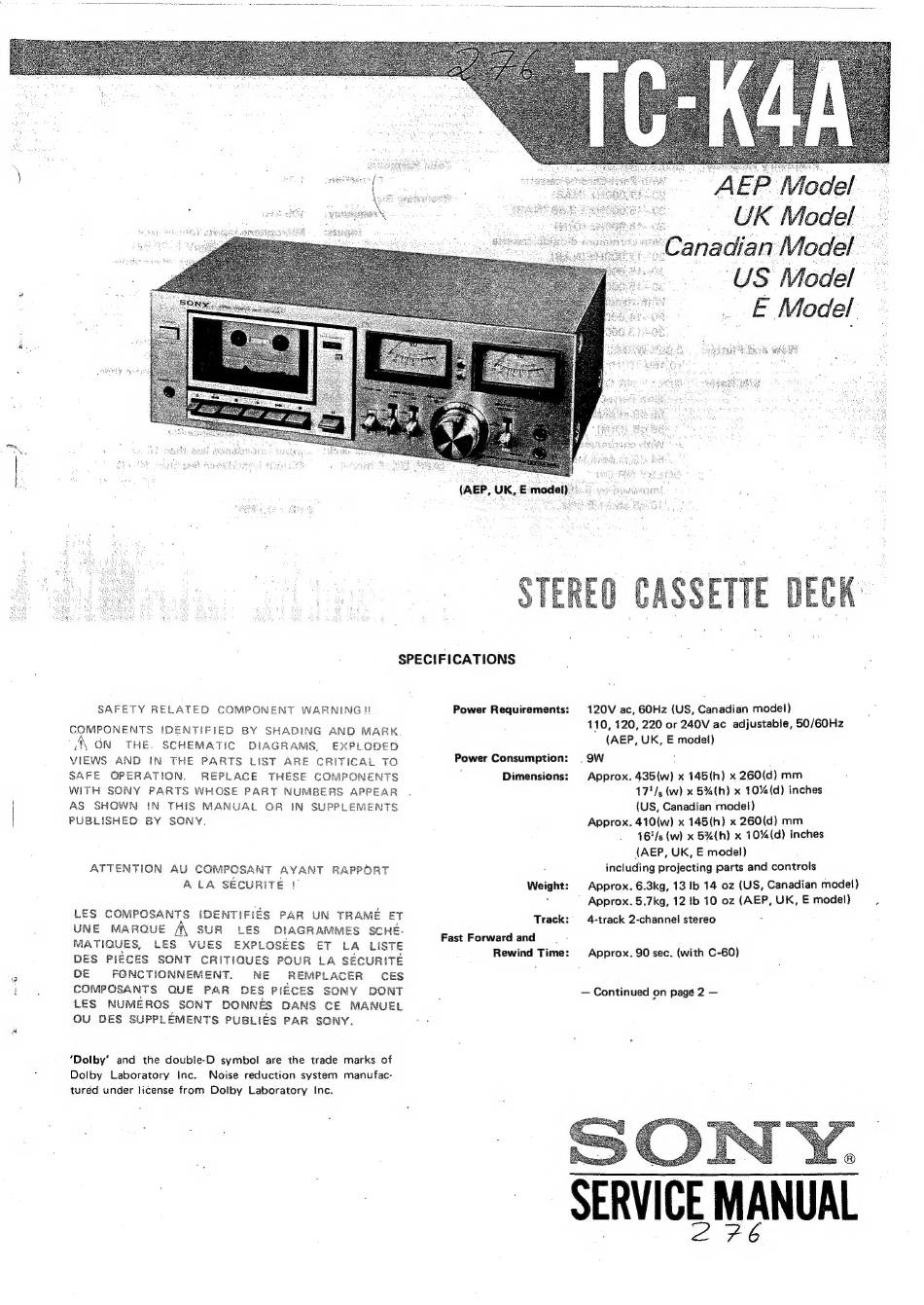

Sony TC-K4A Service Manual

AEP Model
~ UK Model
Canadian Model
US Model
E Model
SPECIFICATIONS
SAFETY RELATED COMPONENT WARNING U
COMPONENTS IDENTIFIED BY SHADING AND MARK
"/\ ON THE. SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TO
SAFE OPERATION. SEPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY,
ATTENTION AU COMPOSANT AYAN
ALA SECURITE 1
L
LES COMPOSANTS (0 FIES PAR UN TRAME ET
UME MARQUE A \ S$
e FF
A\ SUR LES RIAGRAMMES SCHE.-
MATIQUES, LES VUES EXPLOSEES ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA sécuRITE
DE FONCTIONNEMENT. NE REMPLACER CES
COMPOSANTS QUE PAR DES PIECES SONY DONT
LES NUMEROS SONT DONNES DANS CE MANUEL
OU DES SUPPLEMENTS PUBLIES PAR SONY.
NT
:
i
t
od
'Dolby' and the doubie-D symbol are the trade marks of
Dolby Laboratory Inc. Noise reduction system manufac-
tured under license from Dolby Laboratory Inc.
Power Requirements: 120V ac, 60Hz (US, Canadian model)
110, 120, 220 or 240V ac adjustable, 50/60Hz
(AEP, UK, E model)
Power Consumption: | 9W ;
' Dimensions: Approx. 435(w) x 145(h) x 260(d) mm
171/, (w) x 5%(h) x 10%(d) inches
(US, Canadian model)
Approx. 410(w) x 145(h) x 260(d) mm
16*/s (w) x 5%(h) x 10%(d) inches
(AEP, UK, E model)
including projecting parts and controls
Weight: Approx. 6.3kg, 13 Ib 14 oz (US, Canadian model)
: Approx. 5.7kg, 12 Ib 10 oz (AEP, UK, E model) :
Track: 4-track 2-channel stereo 2
Fast Forward and
Rewind Time: Approx. 90 sec. (with C-60)
— Continued on page 2 —
SERVICE MANUAL
